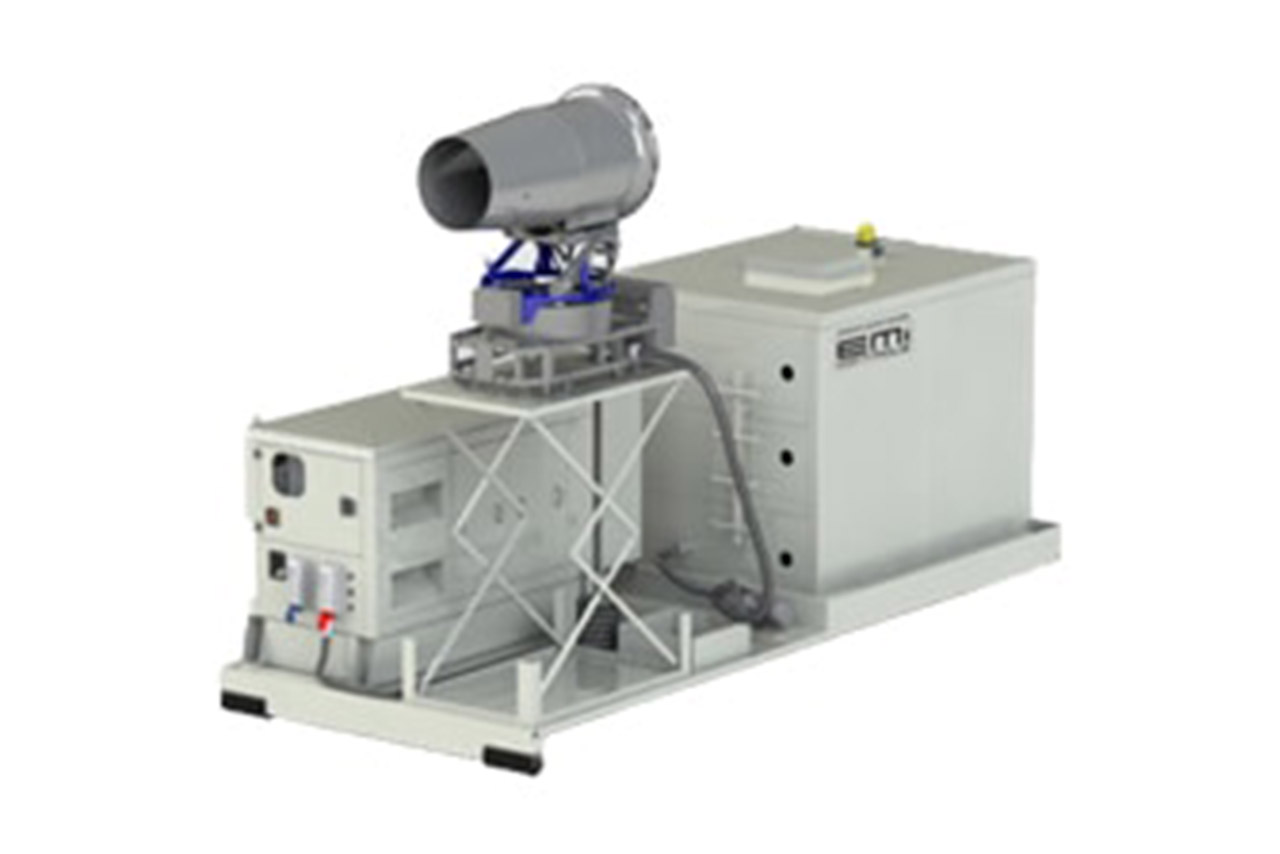

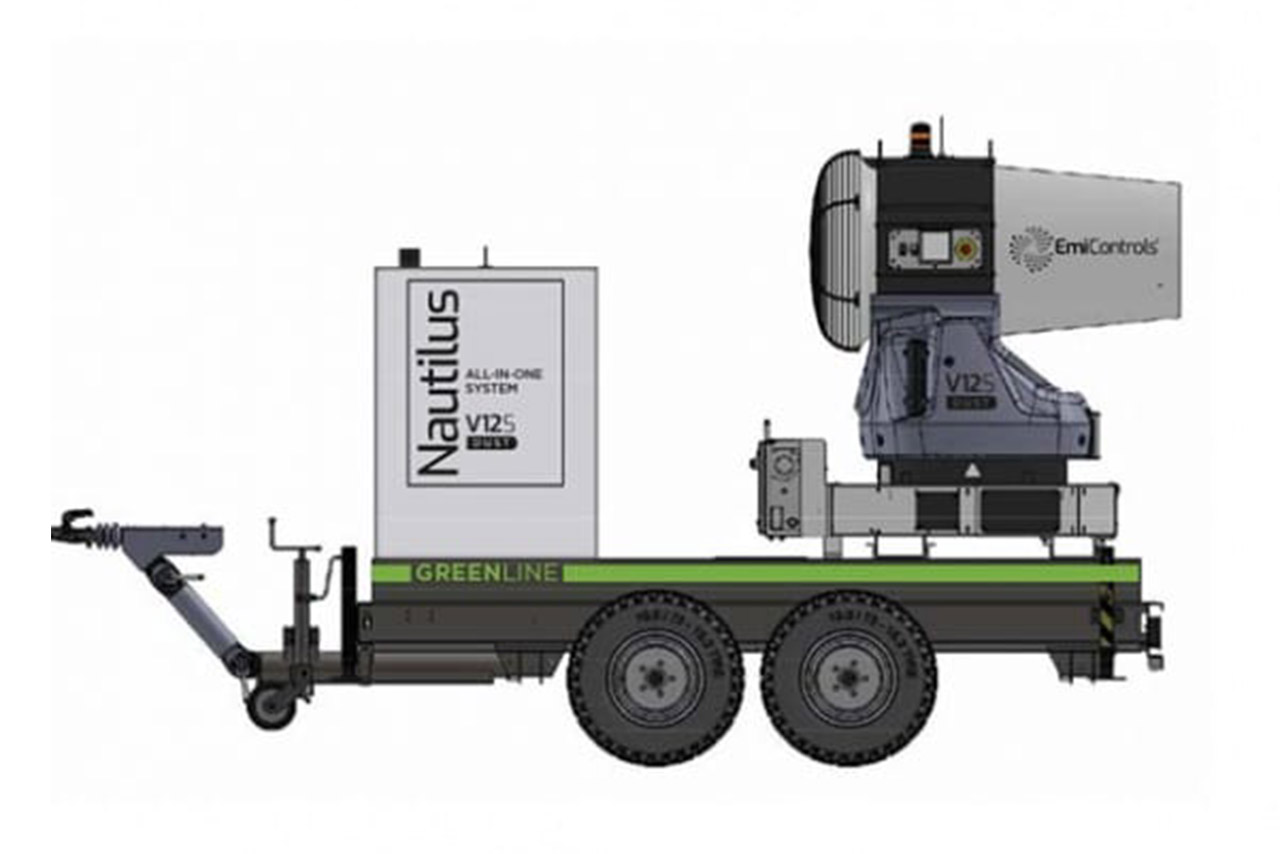

Nautilus – Autonomous Dust Controller

The Nautilus is mounted on a platform and designed so that any truck with a 6m loading ramp can load it.

Nautilus – Autonomous Dust Controller

The Nautilus is mounted on a platform and designed so that any truck with a 6m loading ramp can load it. It is the ideal solution for all applications where lack of water and electricity does not allow the use of standard equipment. The Nautilus can work autonomously for up to a maximum of eight hours (at 20 l / min). Thanks to its small size, it can be easily sent all over the world.

The Nautilus is equipped with our particularly quiet dust controller (60 dB (A) at 20 m), which can operate at two levels of speed. It also has a 10,000-liter water tank and a 60 kVA power generator.

What makes the Nautilus unique:

  • It can work entirely independently because it has its own water tank and generator.
  • Two levels of speed: the special motor for the Nautilus can work with 3kW (reach: up to 30 meters), and also with 11 kW (range: up to 50 meters), and at 1,000 and 1,500 U/m respectively
  • The device is very easy to transport.
  • Specially made nozzle head located inside the turbine

Technical Specifications

  • Throwing distance (up to)25-35* / 50-65 m
  • Nominal power – turbine3* / 11 kW
  • Generator60 kVA
  • Sound pressure level LA60* / 63 bei 20m db(A)
  • Sound pressure level LA Generator63 bei 20m db(A)
  • Operating temperature-5° bis +45°
  • Turbine tilt-18° bis +40°
  • Water flow16 – 100 l/min
  • Swing (automatic)350°
  • Water supply pressure (min.)(min.) 3 bar
  • Size Water tank10.000 l

* at reduced speed
