DYNAJET UHP 220 1200/64 T mobile w. hoods
Welcome to the premium class of DYNAJET! The DYNAJET UHP 220 1200 ultrahigh-pressure cleaner unit, offering a working pressure of up to 1200 bar and a flow rate of 64l/min, ranks among the most powerful of all the DYNAJET devices and convinces with the highest level of functionality, efficiency and economy. This UHP unit not only fulfils the latest safety and emissions standards according to Tier 4f but, with its numerous innovations, makes water-jetting more ergonomic, more efficient and more sustainable.
Structure:

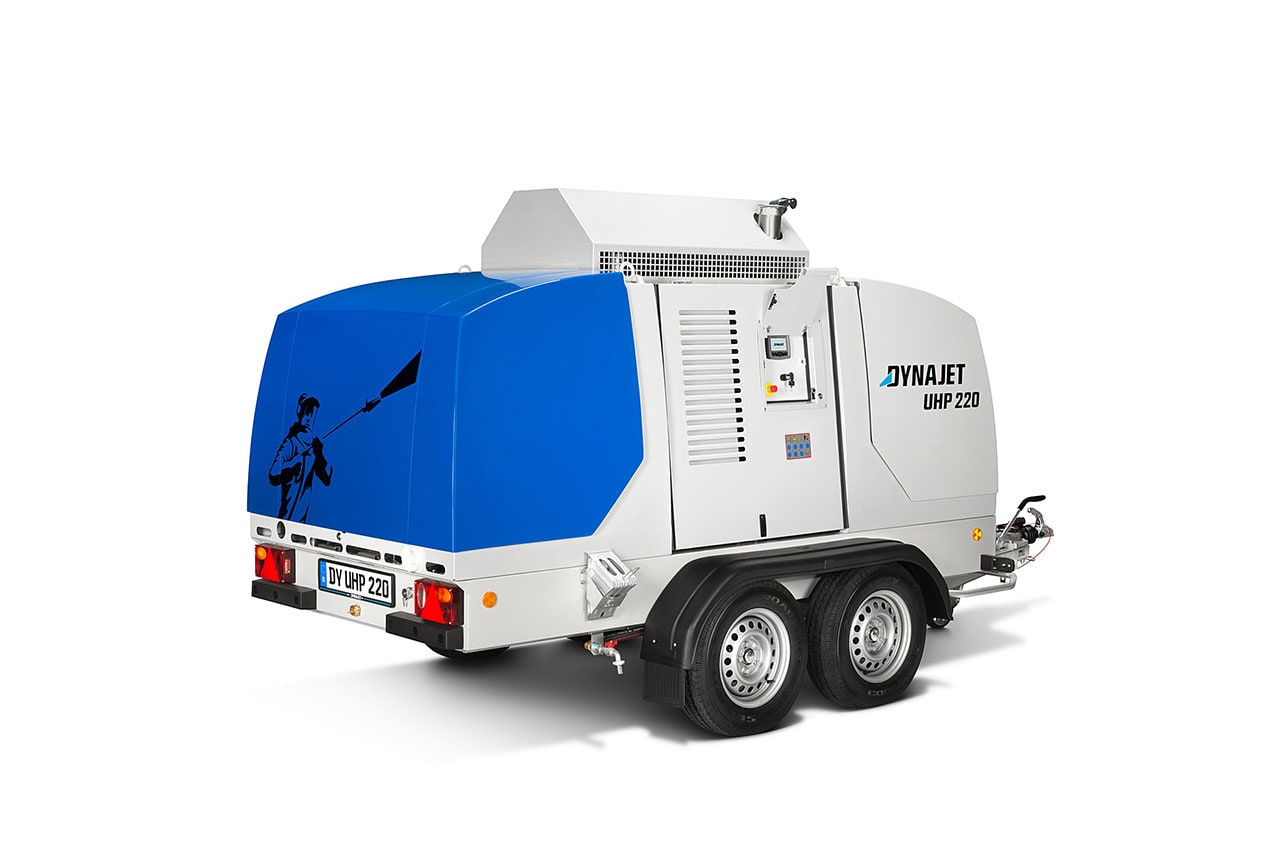

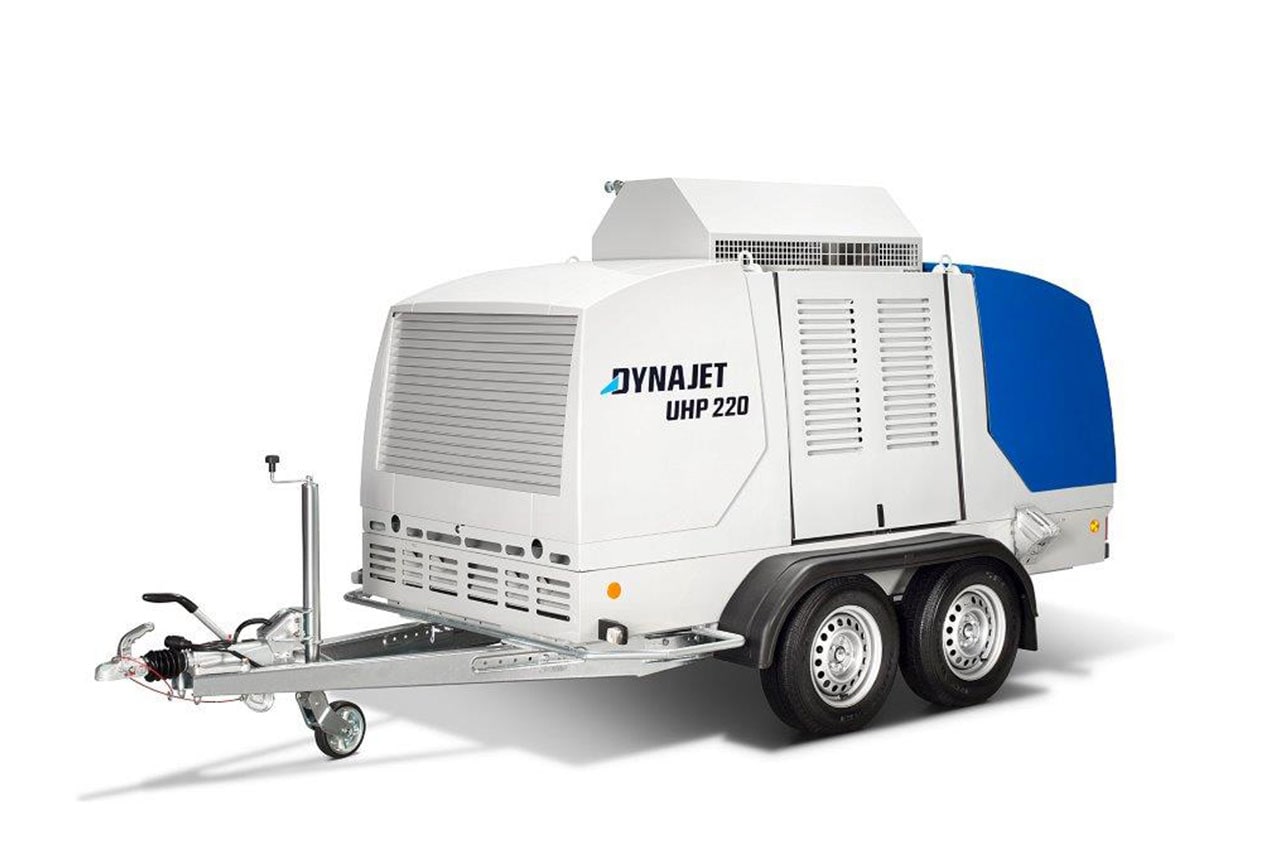

- Twin-axle chassis for safe driving
- Four lifting eyes for increased flexibility

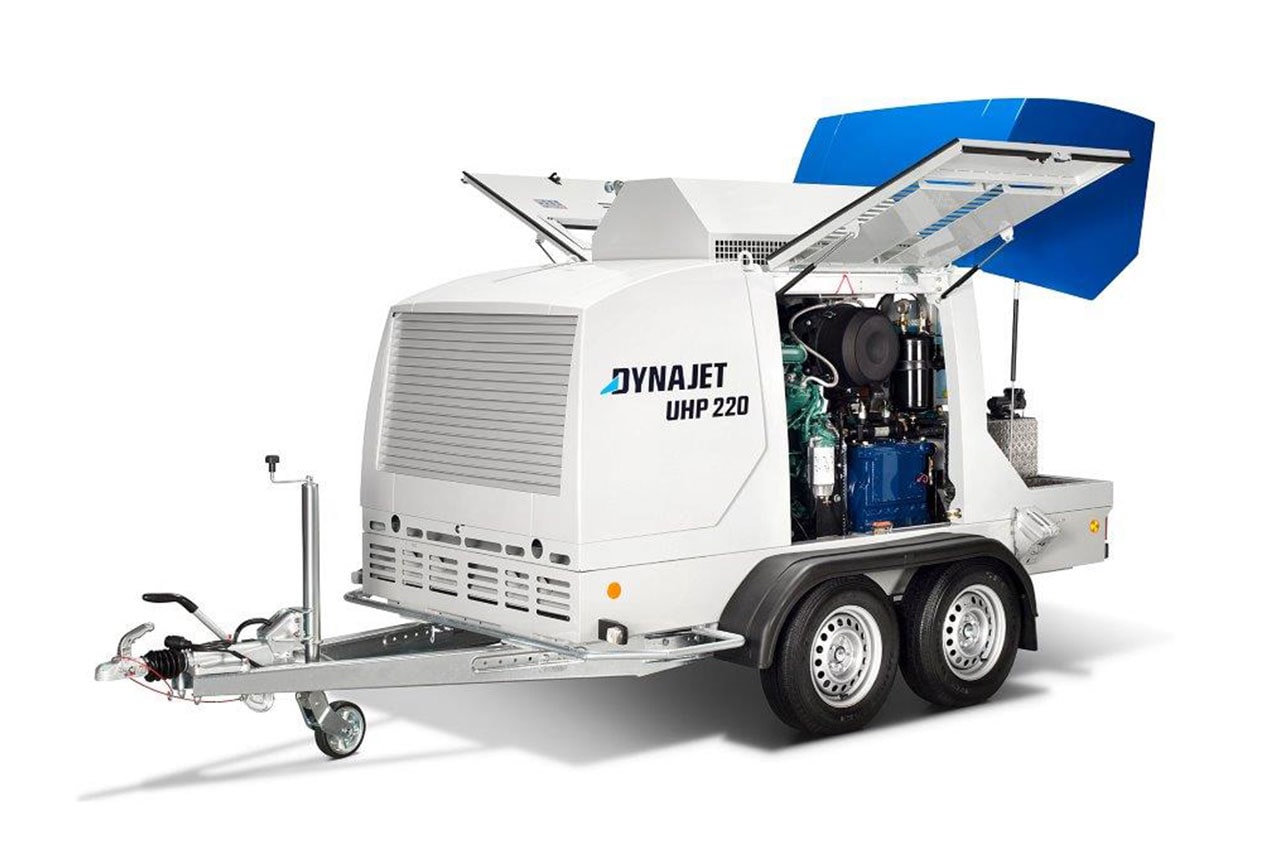

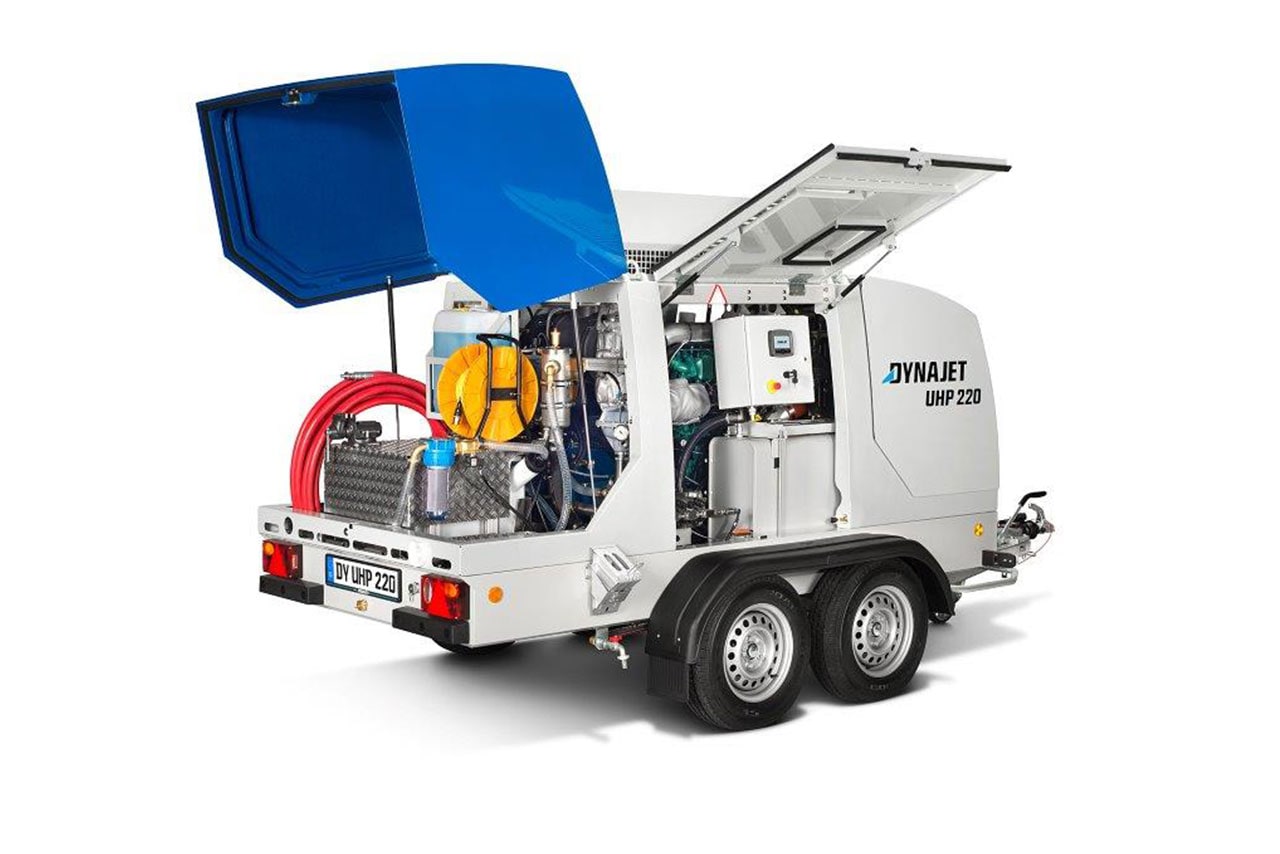

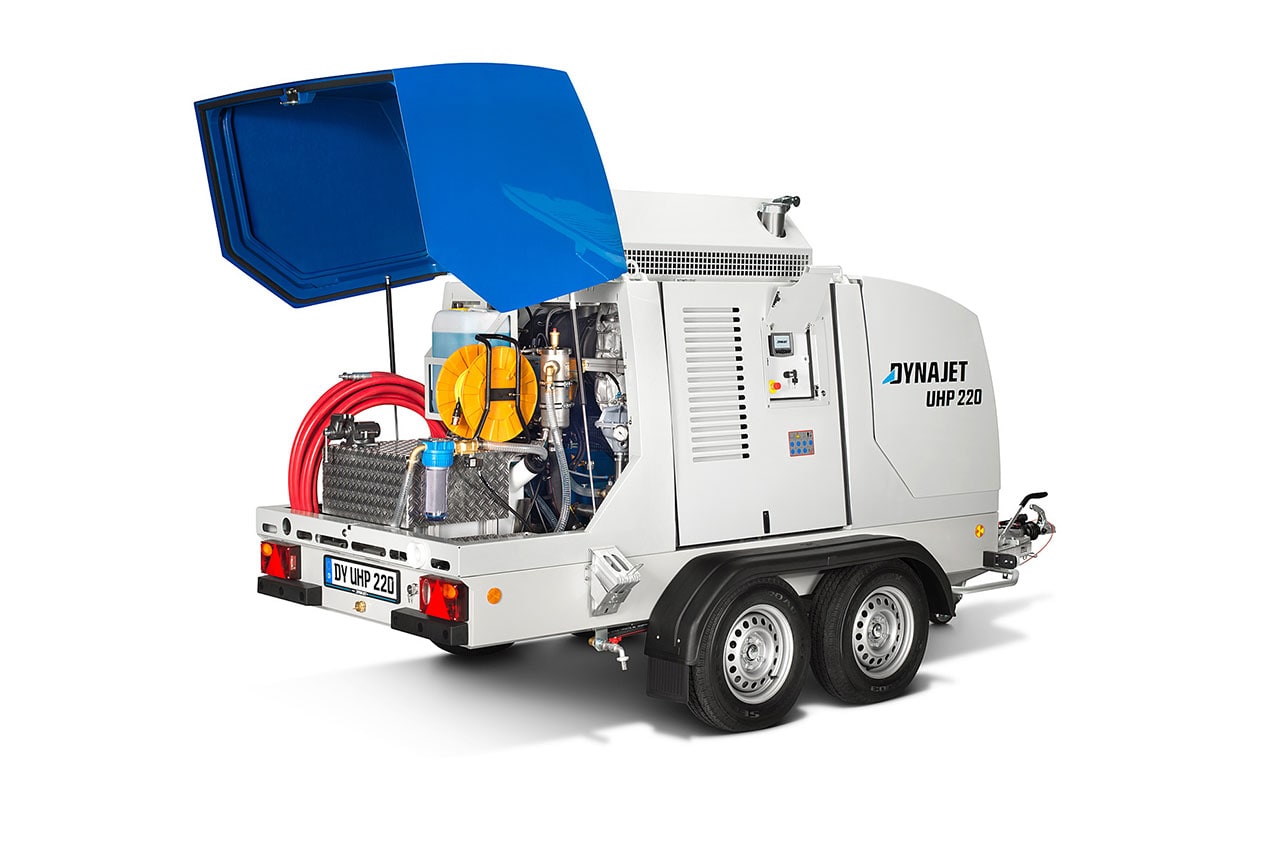

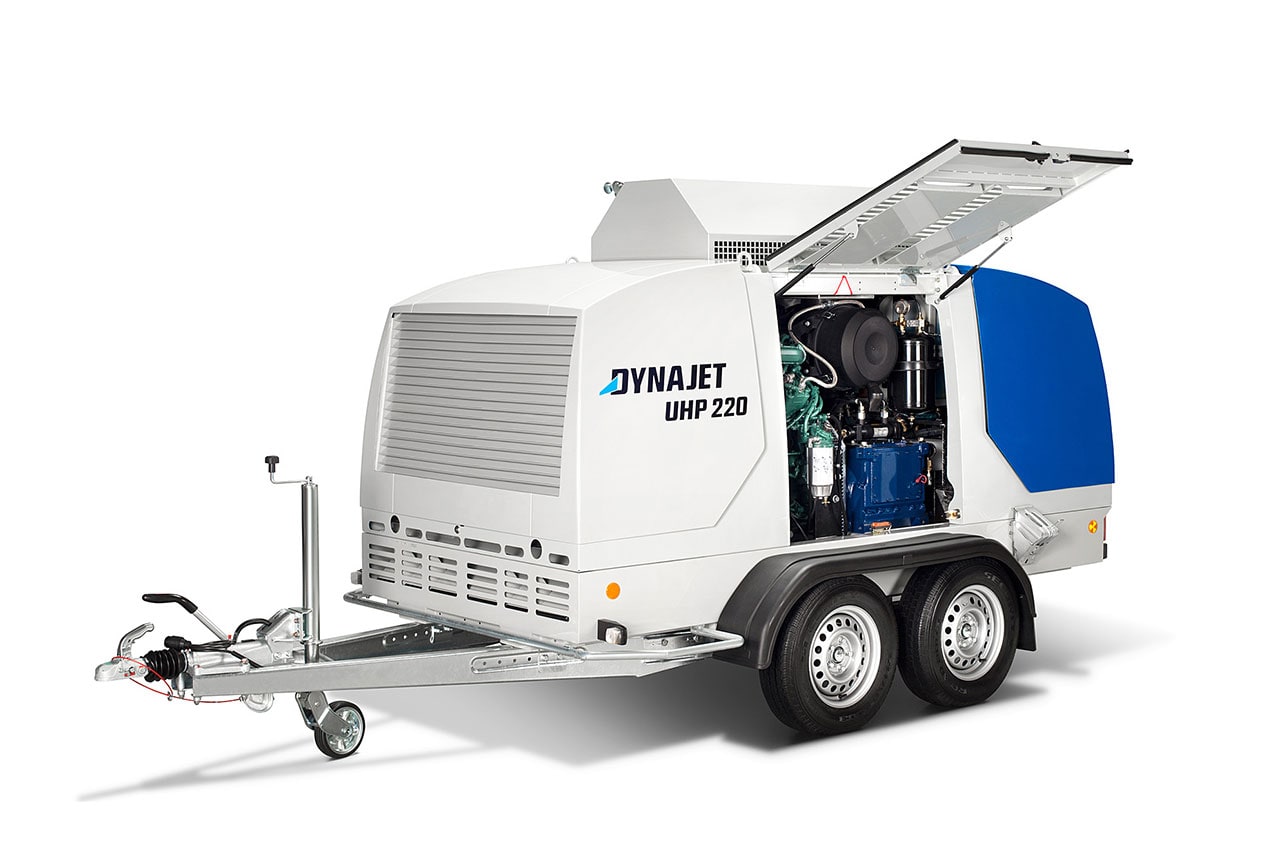

- 4-hood Targa system for safe access to the operating area and motor area
- Lockable hoods for additional safety
- Closed base tray/leak tray to protect against dirt
- Storage area to keep things tidy
- Suction and pressure connections can also be used when the hood is closed
Drive:
- Powerful VOLVO industrial diesel motor, specifically designed for the Dynajet UHP 220, for reliable operation
- Complies with the latest EU exhaust gas standard TIER4 final
- Integrated spark arrester
- Large fuel tank for long, autarkic operation
- Sound insulation to reduce noise levels
- Integrated compressed air system
- Dynajet Easy Control II
- Graphical color display
- Rapid familiarisation
- Simple selection of operating mode enables free pre-selection of pressure or speed
- Motor monitor
- Hour counter for motor and pump
- 24V system
Water supply:
- Fine filter in stainless steel housing for maximum engine protection
- High pressure pump
- Low-speed pump to protect against overheating and for a long service life
- Optimised construction for low fuel consumption and minimized vibrations
- Carbide plungers for the highest stability and maximum service life
- Simple valve replacement
- Power-end cooling system with noise-minimised tooth flanks
- Pressure oil lubrication
- Pneumatic unloader valve for soft switching
- Full lift safety valve: opens if there is overpressure and thus protects operator, device and acces-sories; work can continue right away once the fault has been eliminated and the device restarted
Base Data
- SystemCold-water ultrahigh-pressure units
- TypeTrailer
Pressure
- Pressure class1,200 bar (17,400 PSI)
- Pressure variableYes
- Minimal pressure500 bar (7,250 PSI)
Hydraulics
- Pump revolution speedMax. 500 rpm
- PumpLow-speed ultrahigh-pressure pump with 3 carbide plungers, integrated reduction gear and power-end cooling system
- Volume water tank160 l (42.28 USgal)
Threaded Connection
- Input portGEKA
Drive
- Drive typeDiesel motor
- Motor power160 kW (220 hp)
- Motor speedMax. 2100 rpm
- Motor typeVOLVO 4-cylinder diesel motor, water-cooled, engine capacity 5200 ccm
- Power transmission from motor to pumpGearbox
- Volume fuel tankApprox. 200 l (52.83 USgal)
Others
- MediumClear water, up to 40 °C (104 °F), min. 1.8 bar (26 PSI) to max. 6 bar (90 PSI) supply pressure
- Weight in kg2,750.0
- Dimensions (L/W/H)467 x 197 x 218 cm
- Dimensions open (L/W/H)487 x 310 x 254 cm
Version
- DYNAJET UHP 220 1200/64 T mobile w. hoods
Scope of delivery (Standard version and standard accessories)
Standard scope of supply
4-hood targa concept, noise insulation cover, protection/ leakage tray, robust and durable VOLVO four-cylinder diesel engine, power end cooling system, water temperature monitoring, simple to control via the display, total control with pressure-value presetting or option to choose manual engine speed control, three-plunger high-pressure pump with carbide plungers, storage tank with booster pump incl. filter and suction-pressure monitoring system, frost-protections system with storage tank, rotable vice, operating manual
