ECT Single Bag Filter Housing

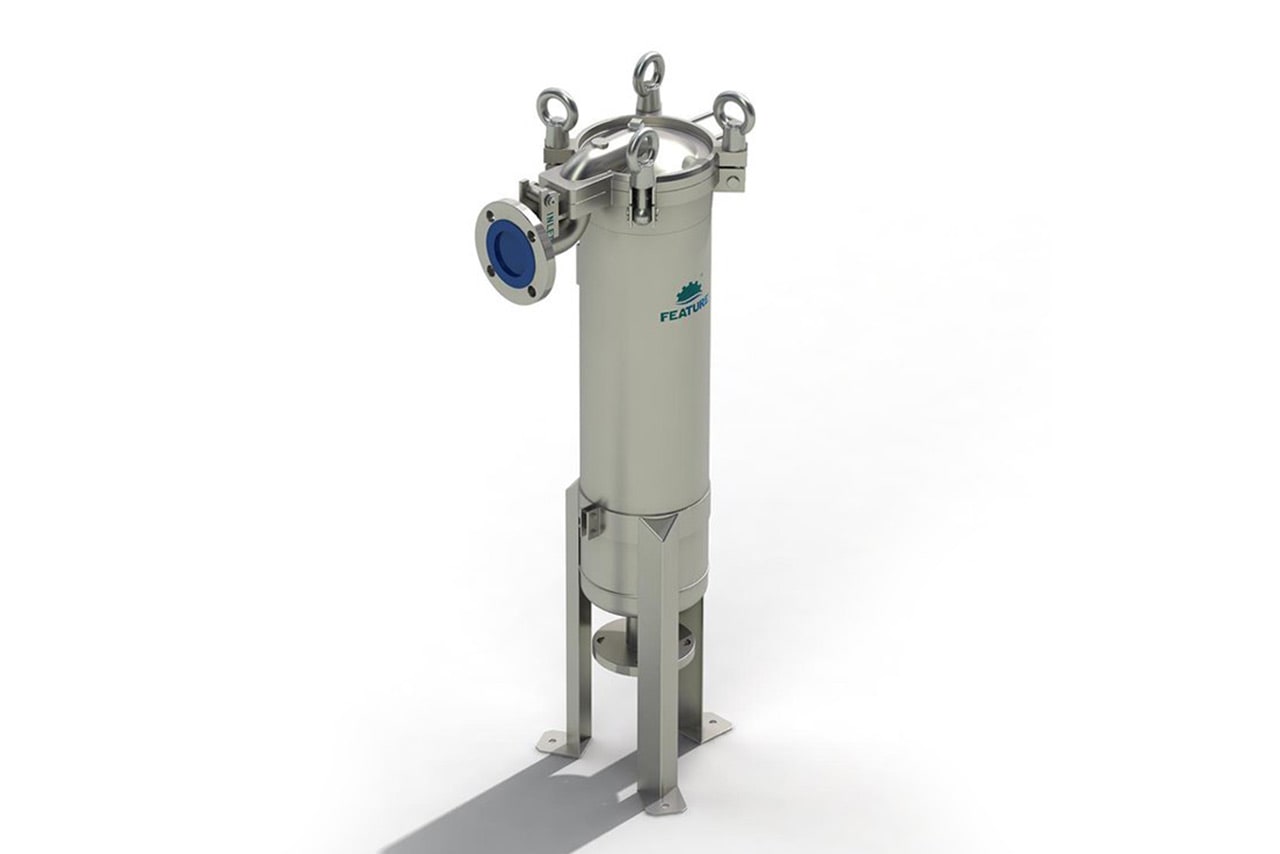

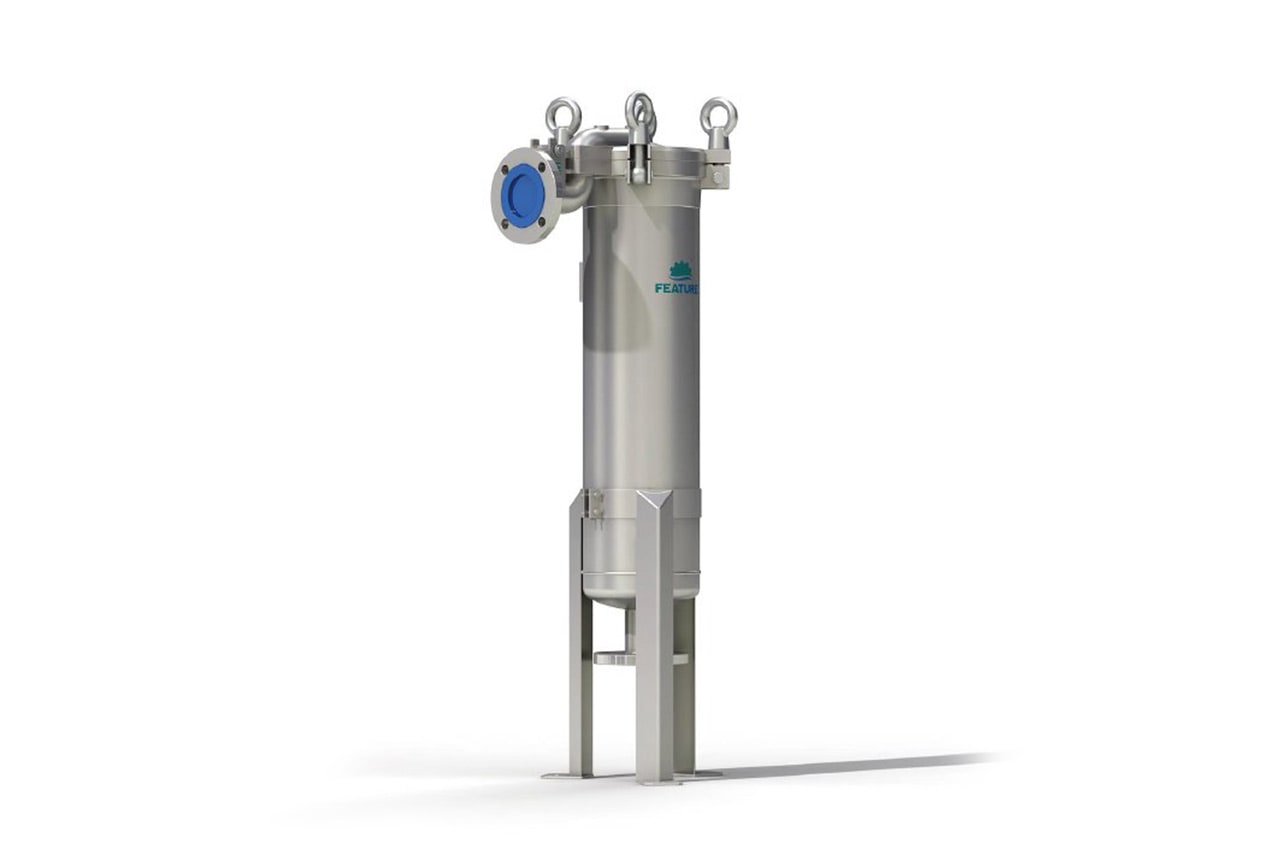

ECT single bag filter housing with top inlet and bottom outlet is the best cost-effective choice for industrial and commercial applications. Fluid enters directly to the center of the bag, minimizing turbulence during the filtration process. The heavy duty cast housing, combined with a hinged cover and swing-bolt closure is designed for high pressure applications. The filter housing opens and closes quickly and easily, adapting to different opening directions and allows a quick bag change-out. The cover directly compresses the filter bag seal-ring, eliminating the possibility of bypass. Feature-Tec's new design for the top inlet single bag filter housing offers an extended goose neck inlet. This shape helps to reduce pressure loss at the inlet.

Features

  1. Improved efficiency and longer lifetime of filter bags as fluid enters the center of the bag directly, minimizing turbulences.
  2. Easy to install adjustable mounting legs.
  3. Cast construction results in a compact, yet heavy-duty design.

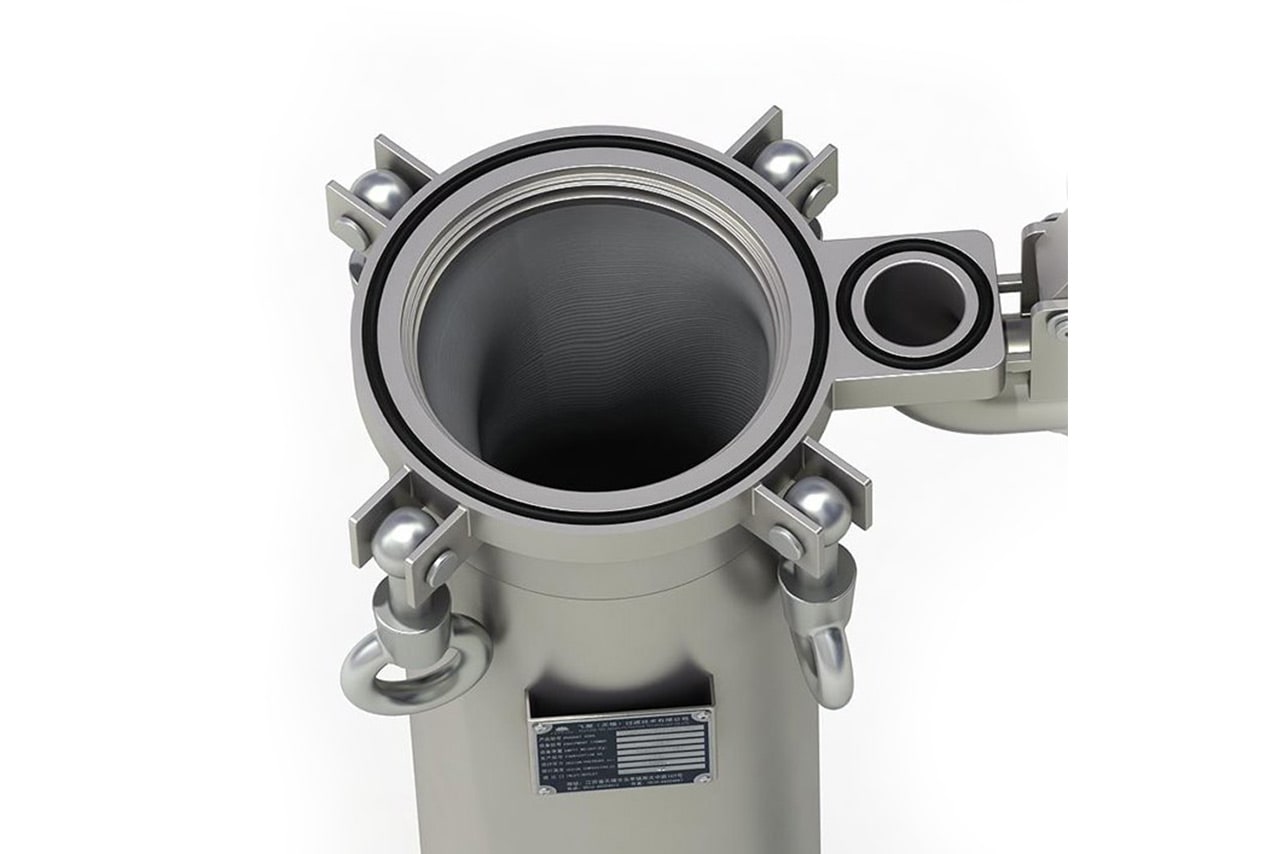

  4. Cover directly compresses the filter bag seal-ring, eliminating the possibility of bypass.

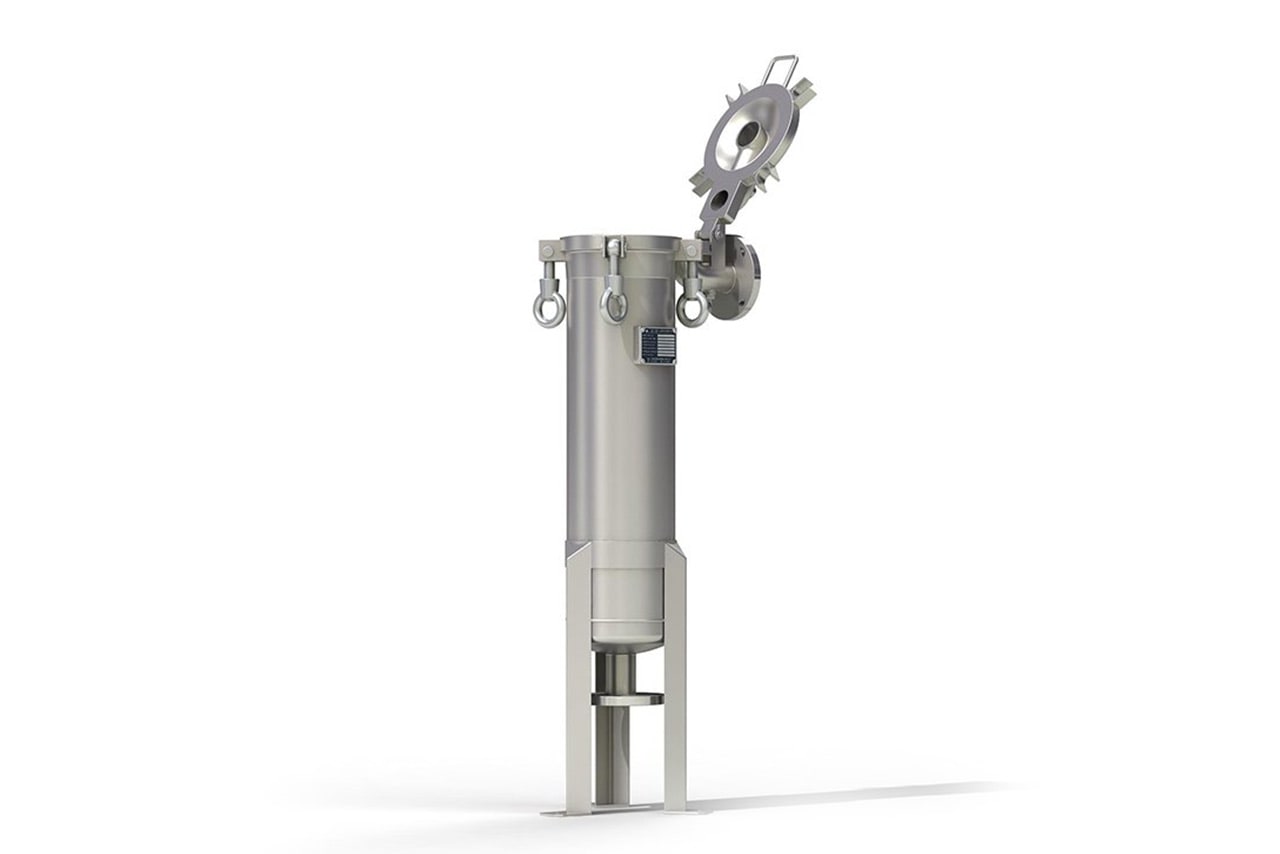

  5. Hinged cover opens and closes quickly and easily, adapting to different opening directions.
  6. Easy bag change-out.

Technical

  • Max. Flow Rate:40 m3/h
  • Max. Operating Temperature:150°C
  • Max. Operating Pressure:10 bar
