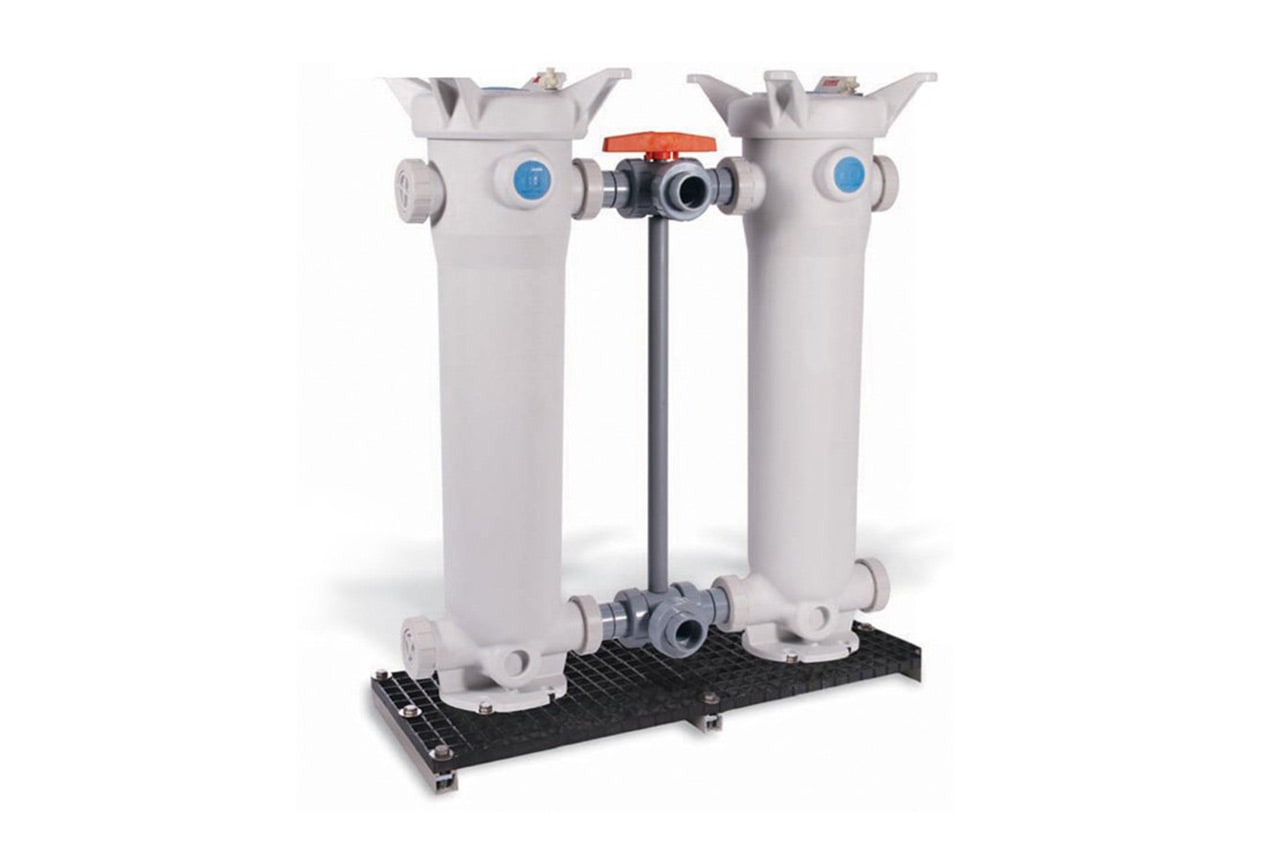

Plastic Duplex Bag Filter 32"

Double Length–32" GFPP 2" to 4" Pipe sizes

Key Features

  • Platinum Glass Filled Polypropylene
  • One-Piece Injection Moulded Construction
  • Hand Removable, Ergonomic Cover with Liquid Displacing Dome
  • Vent Valve Included on Cover
  • Rated up to 100 GPM –2″
  • Rated up to 150 GPM –3″to 4″

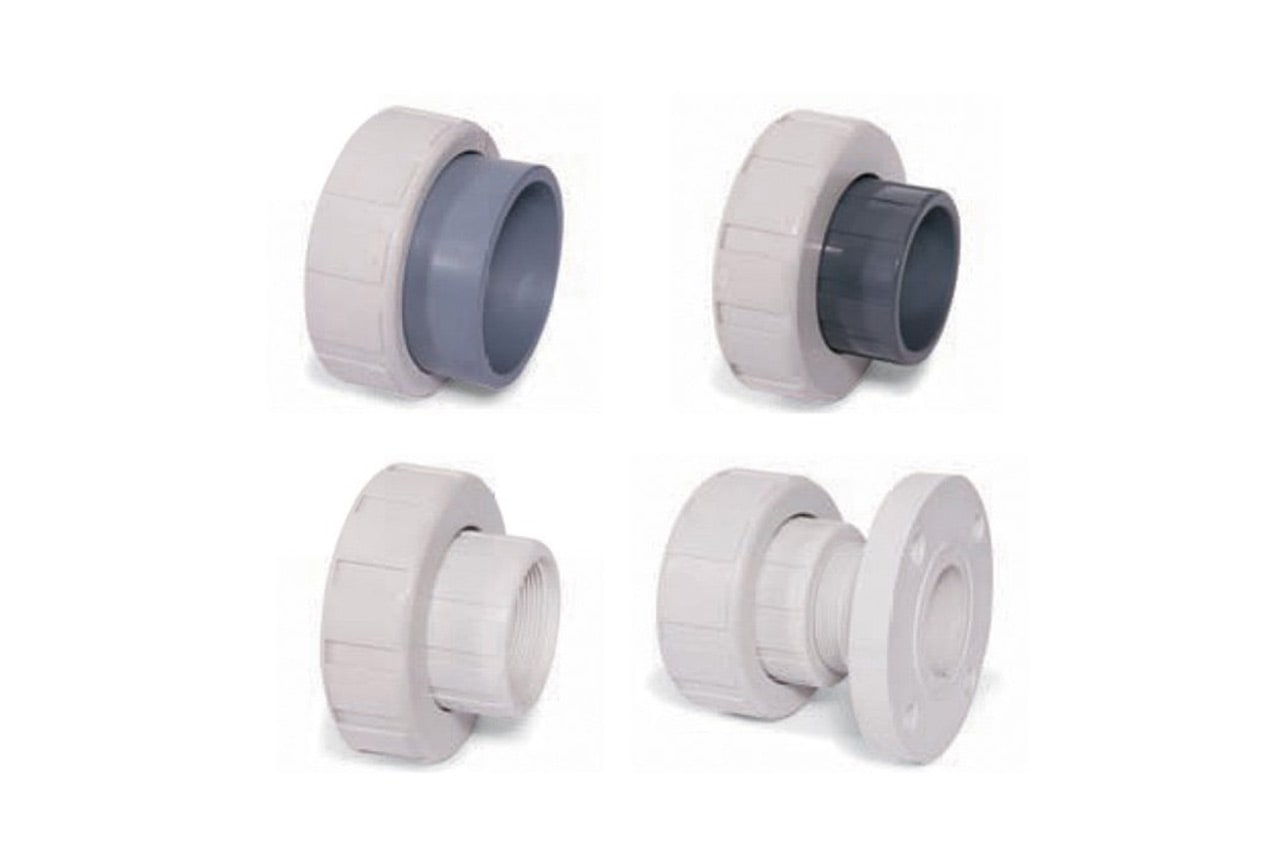

  • True Union Socket, Threaded or Flanged End Connections
  • In-Line or Loop Flow Configurations
  • Solid Basket

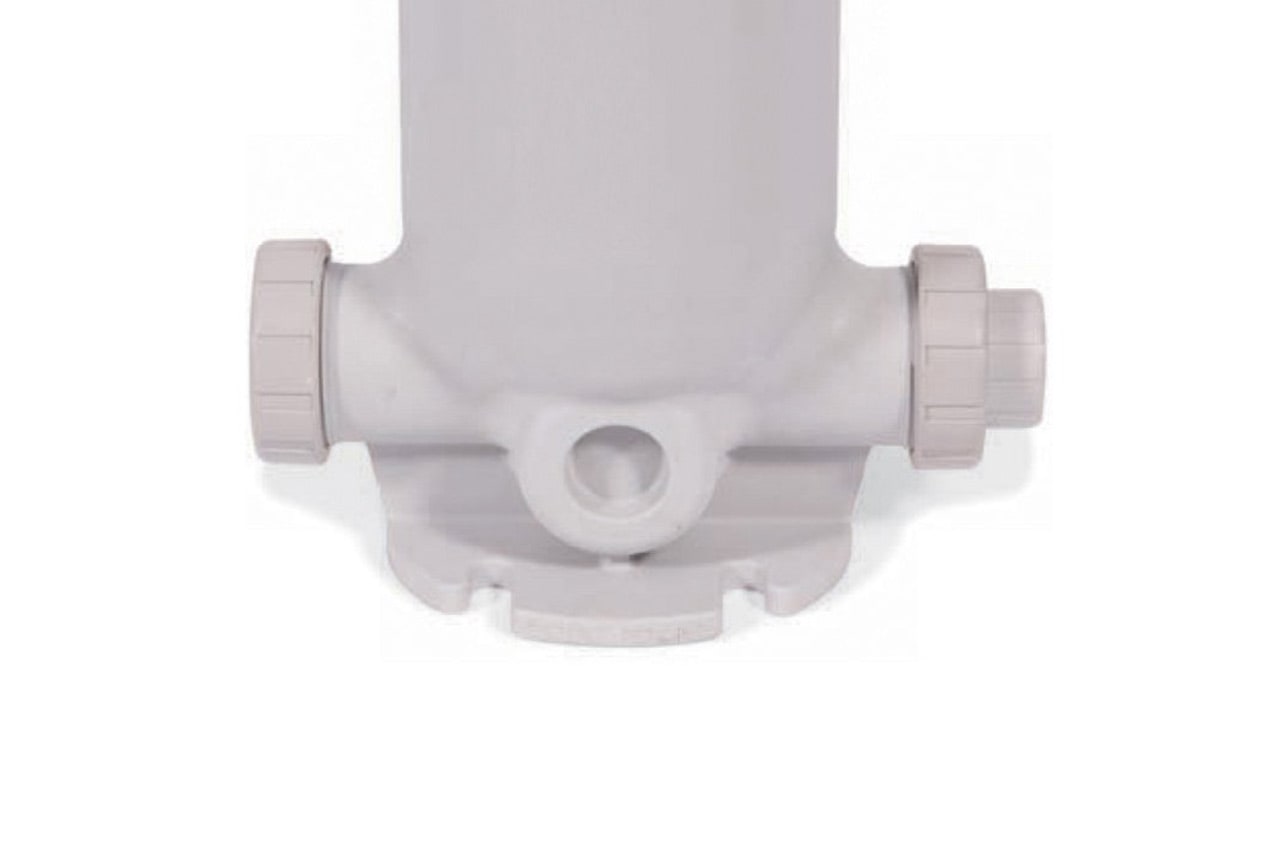

  • Drain Port at Bottom
  • Integral Mounting Base

Benefits

  • Easier Installations Due to True Union Connectivity
  • Vertical Flow Flutes  in Basket, No Bag Snag and Larger Flow Area

Typical Applications

  • Water and Wastewater Treatment
  • Desalinization, RO and Deionized Water Systems
  • Chemical Processing
  • Food and Beverage
  • Aquatic and Animal Life Support Systems
  • Metal Finishing and Plating
  • Marine and Corrosive Environments

Options

  • Gauge with Gauge Guard
  • Pressure Differential Gauge and Switch
  • EPDM O-Ring Seals
  • Cartridge Adapters

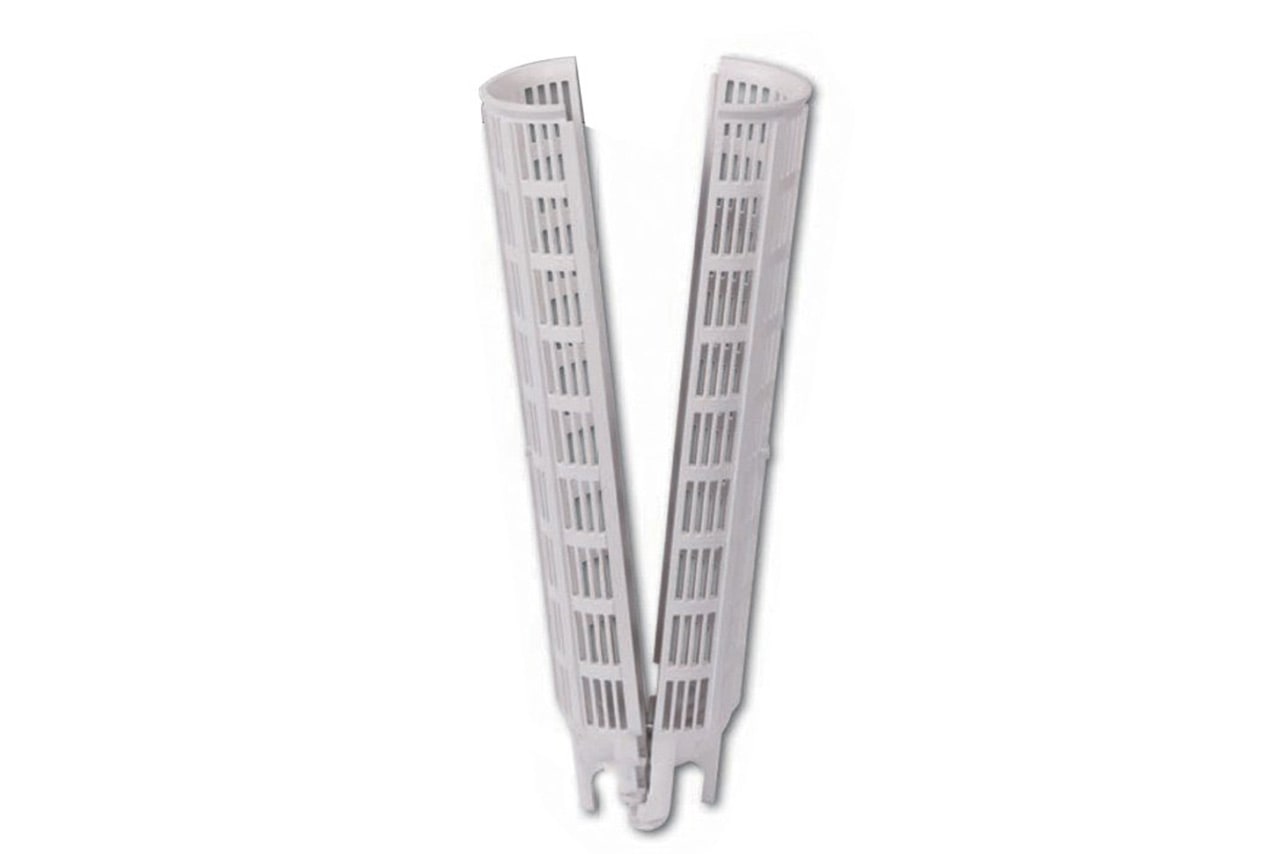

  • Hinged Basket
  • 316 Stainless Steel Basket

Materials

  • CPVC per ASTM D1784, Cell Class 23447
  • GFPP per ASTM D4101, Cell Class 85580
  • FPM Standard O-Ring Seals

Accessories

  • Gauge Guard Included
  • Differential Pressure Gauge & Switch
  • EPDM O-Ring Seal
  • Cartridge Adapters
  • Basket
  • Optional Stainless Steel 316 Basket

Product Downloads

Click the links below to download product information
