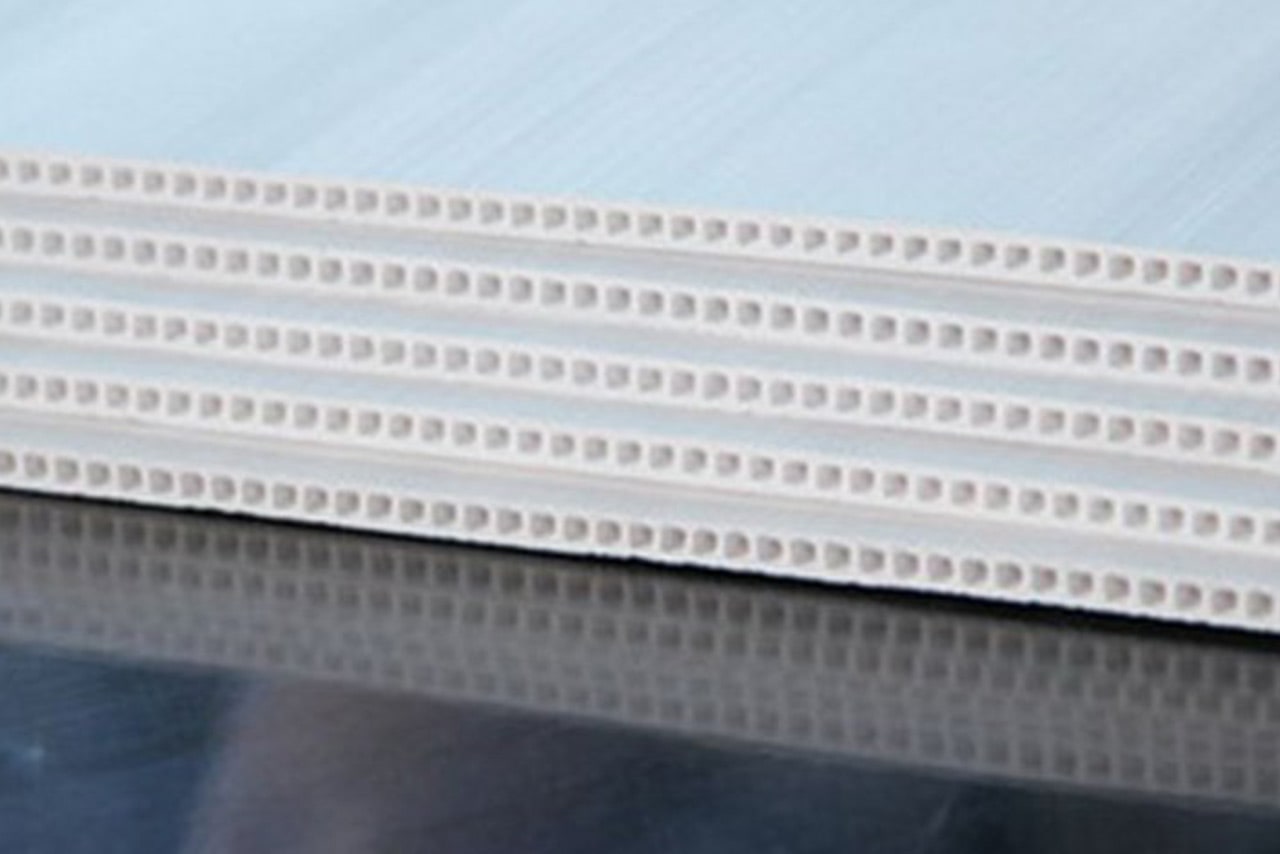

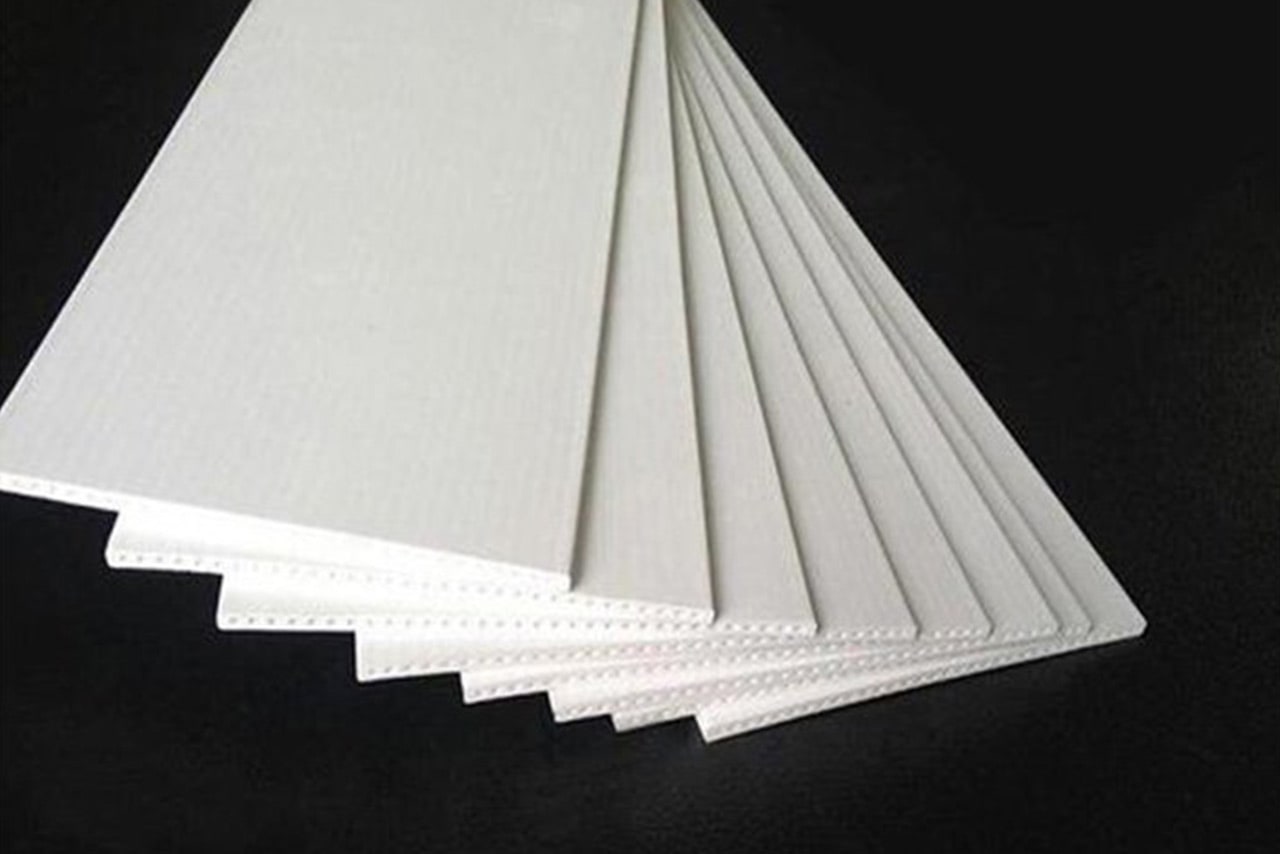

Ceramic Sheet

Feature-Tec’s ceramic sheet is a hollow ceramic membrane featuring excellent physical properties such as corrosion resistance, and a unique plate design to increase the filtration area. In addition, the plate membrane system has a very small footprint, and is widely used in the water treatment industry.

Features

  • Excellent physical properties
  • Corrosion resistant
  • Suitable for separating hard particles from water
  • Used in reducing pre-treatment system to protect downstream membranes
  • Reliable and long lifespan
  • Longer lifespan than organic films in pharmaceutical and heated applications
  • Easy maintenance
  • Dispensing of contaminants through backwashing possible during routine maintenance
  • Surface contaminants easily removed through pressurized liquid/air.
  • Energy saving
  • Plate structure allows effective cleaning of the membrane surface through the use of air
  • Small amount pressurized air required
  • Hydrophilic ceramic membrane effectively reduces the pressure drop to save energy
  • More than 50% throughput compared to ultrafiltration organic polymers

Optional Equipment

  • Shape:Hollow Ceramic Plate
  • Filtration Method:External Pressure/Self-priming
  • Material:Al2O3
  • Standard Micron Rating:0.1 um
  • Dimensions:500 x 250 x 3 mm
  • Effective Filtration Area:0.25m²
  • Pure Water Permeability:600L/(m²/h)
  • Particle Trapping Performance:>95% @ 0.1 um
  • pH Value:2 - 12
  • Operating Temperature:80°C
