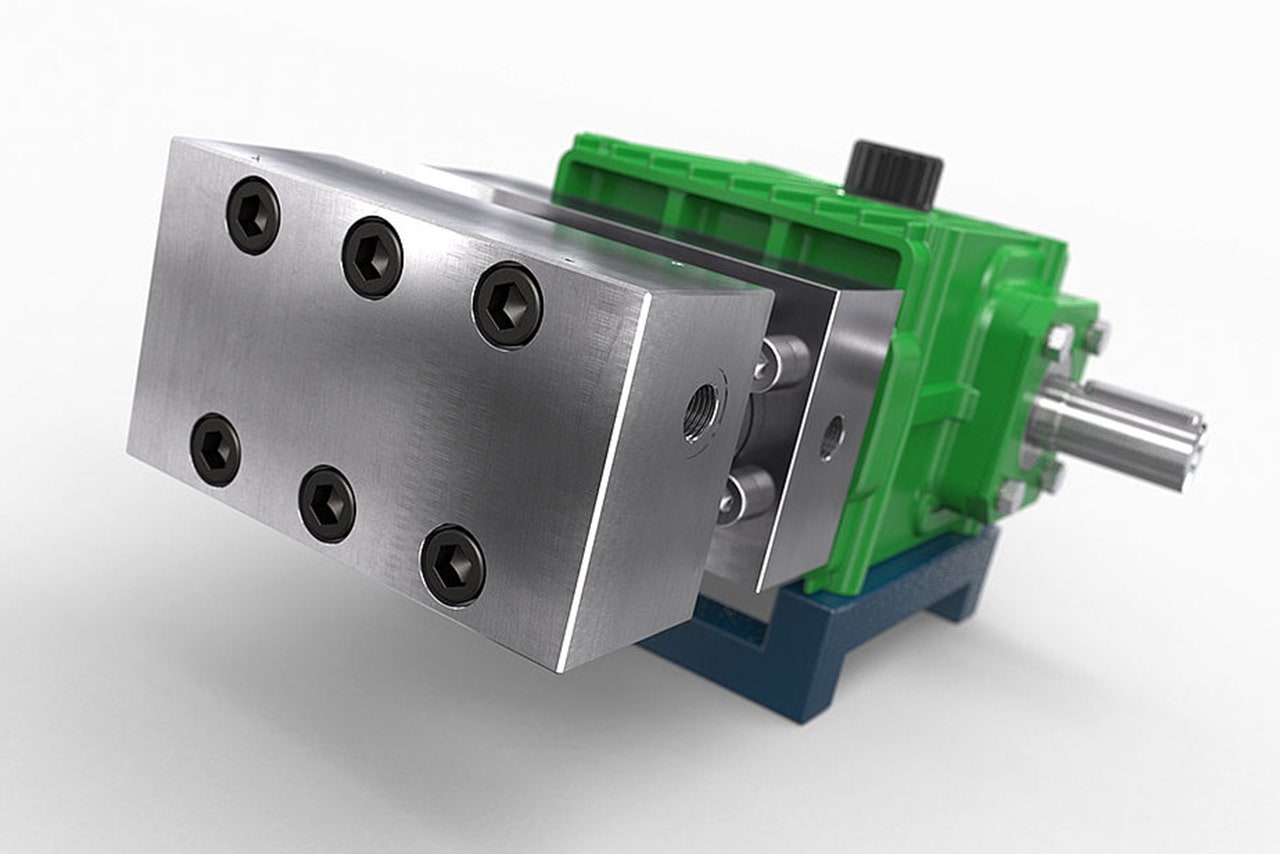

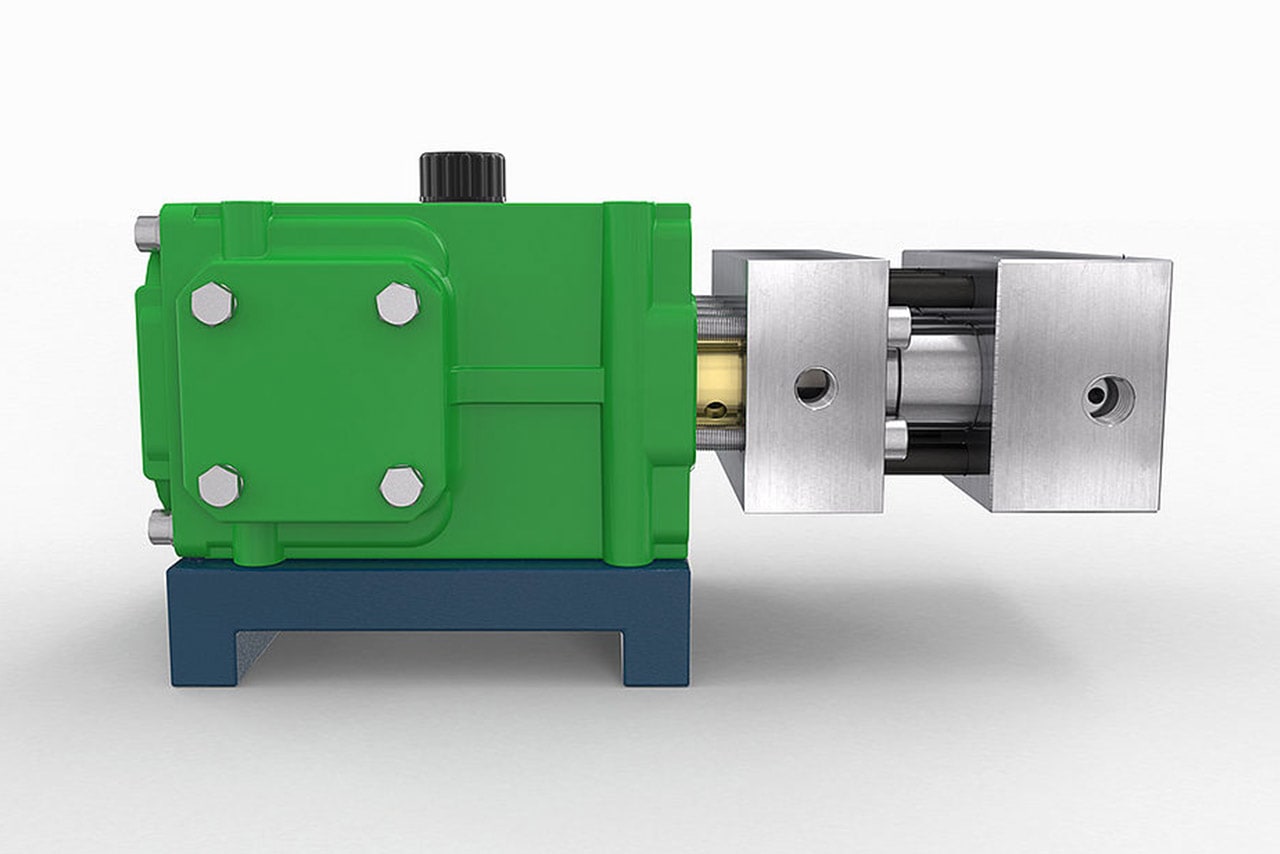

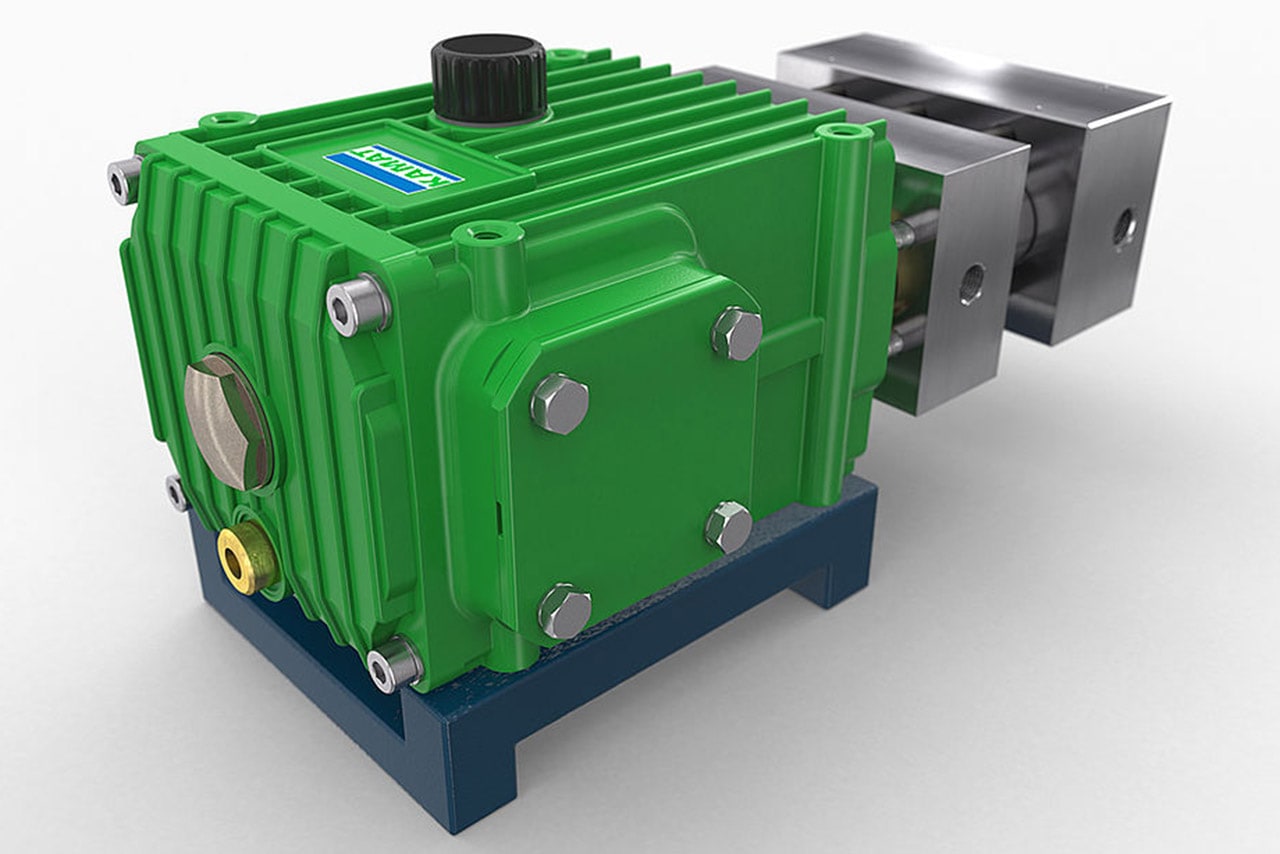

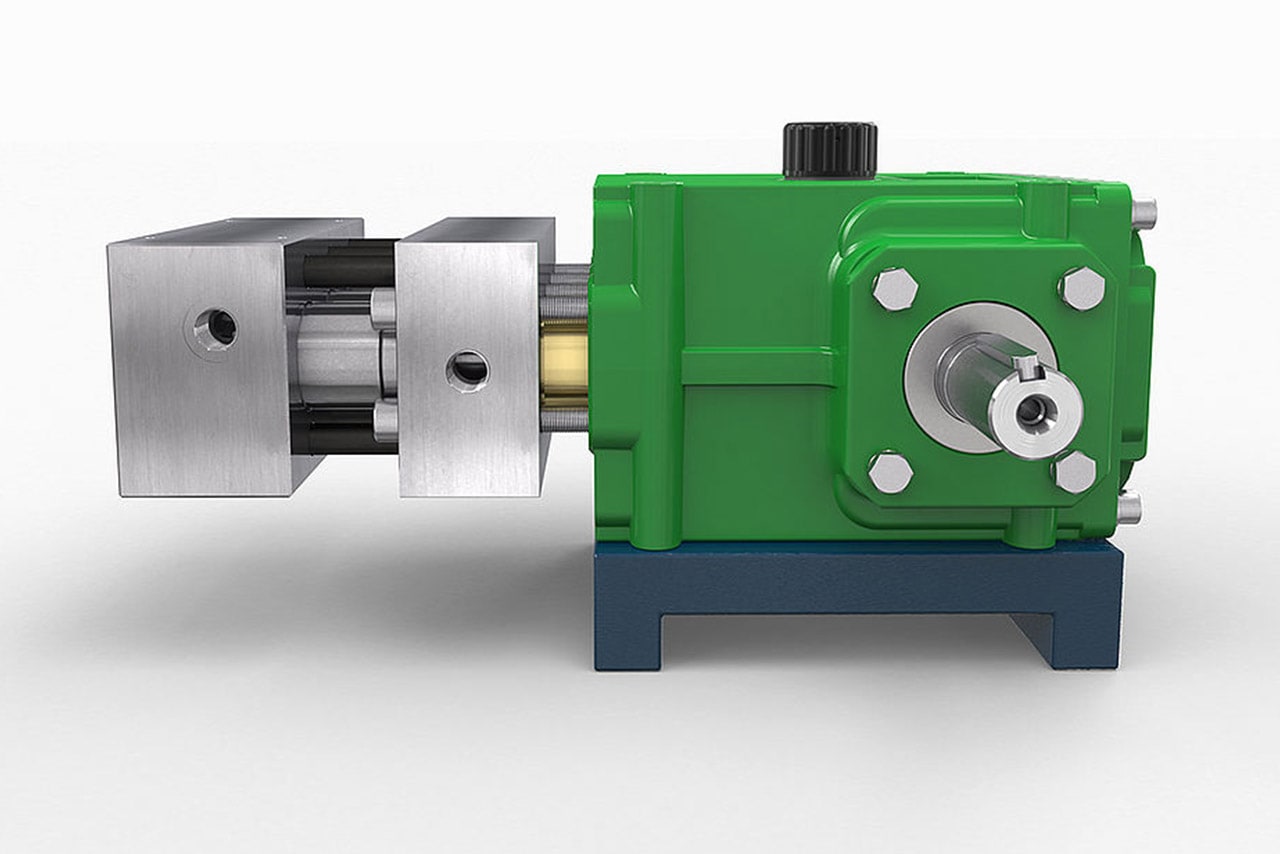

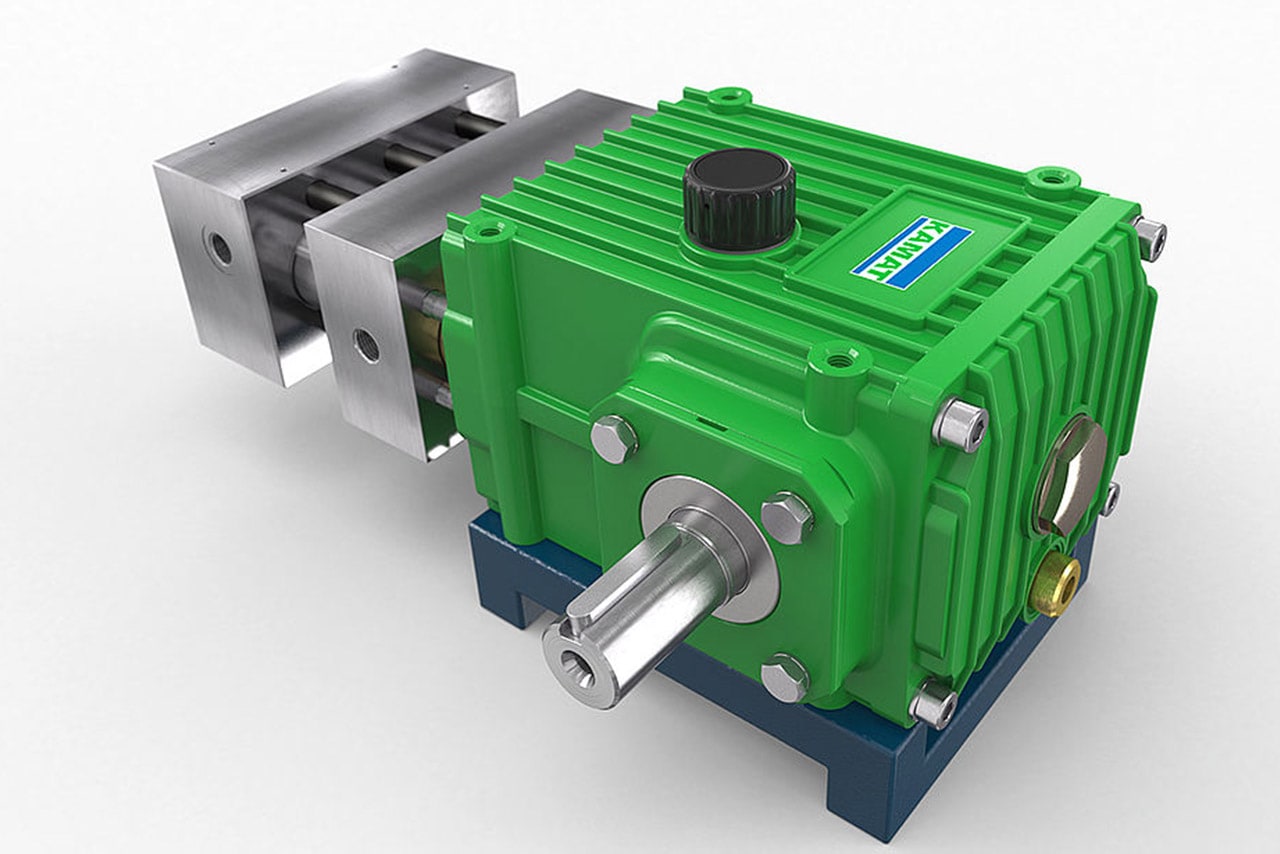

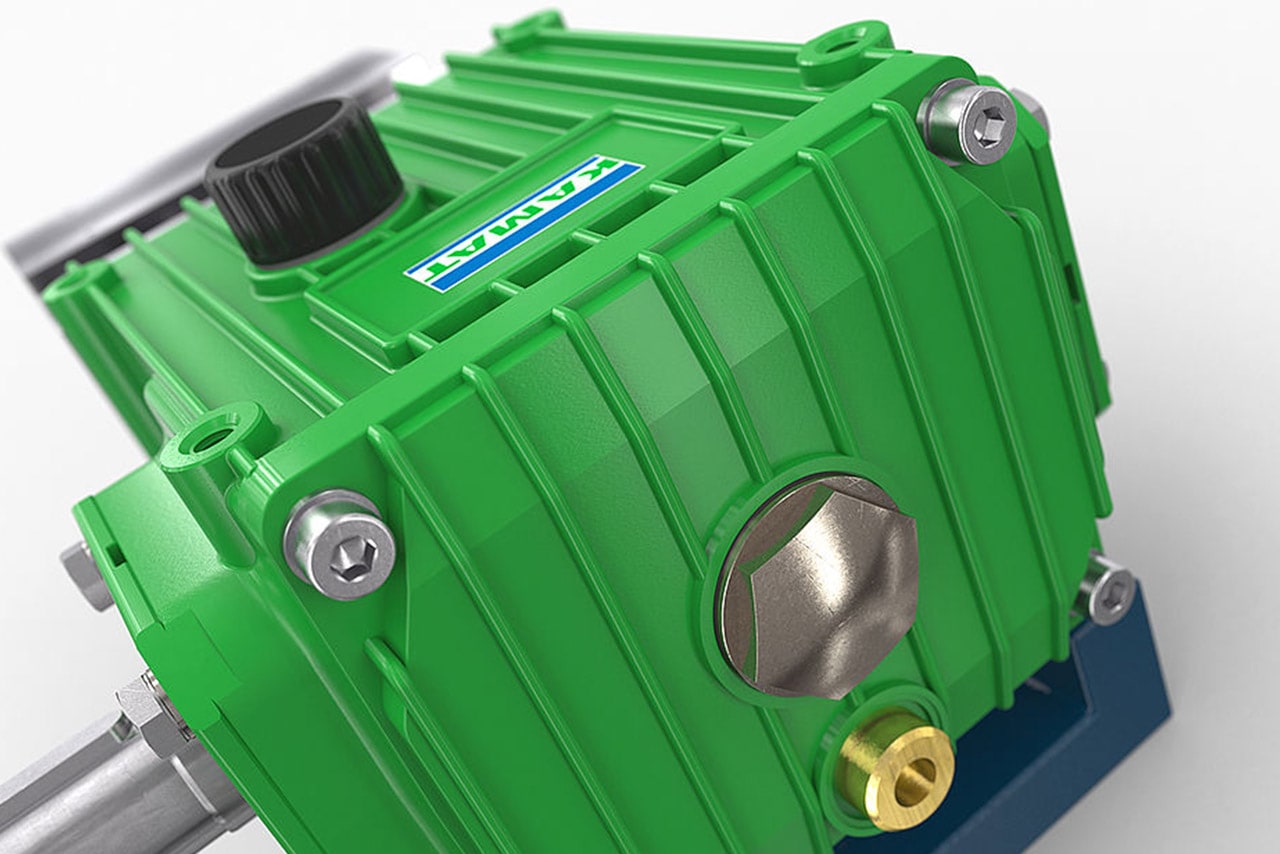

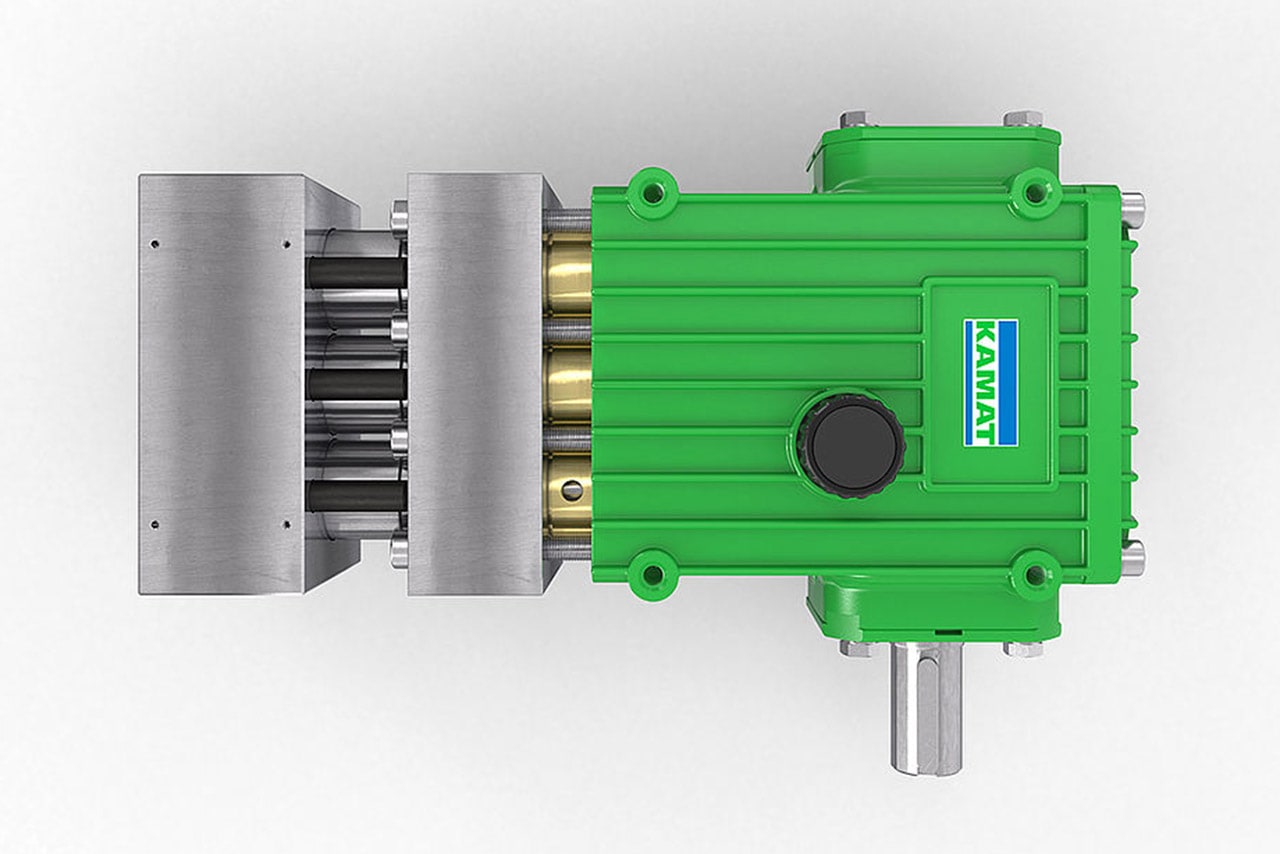

Triplex Plunger Pump K100 A

With only 15 kW input power, KAMAT's smallest high-pressure pump achieves an operating pressure of 2,000 bar. Thus the compact A K100 is associated with the most powerful pumps of their size class. It is primarily employed for paint-removal and rust-removal, however, due to its compact construction design and low weight of only 25 kg, it can be used in very diverse applications. Often the small high-pressure pump, complete with electric, diesel or gasoline drive, is used as a compact mobile unit.

Characteristics:

  • Gear with oil-bath lubrication
  • Load-change-free pump head of stainless steel
  • Hard-metal plungers and valve parts of stainless steel
  • Installation horizontal

Technical Specification

  • Flow6,8 l/min
  • Pressure2000 bar
  • Power Input15kw
  • Weight25kg
