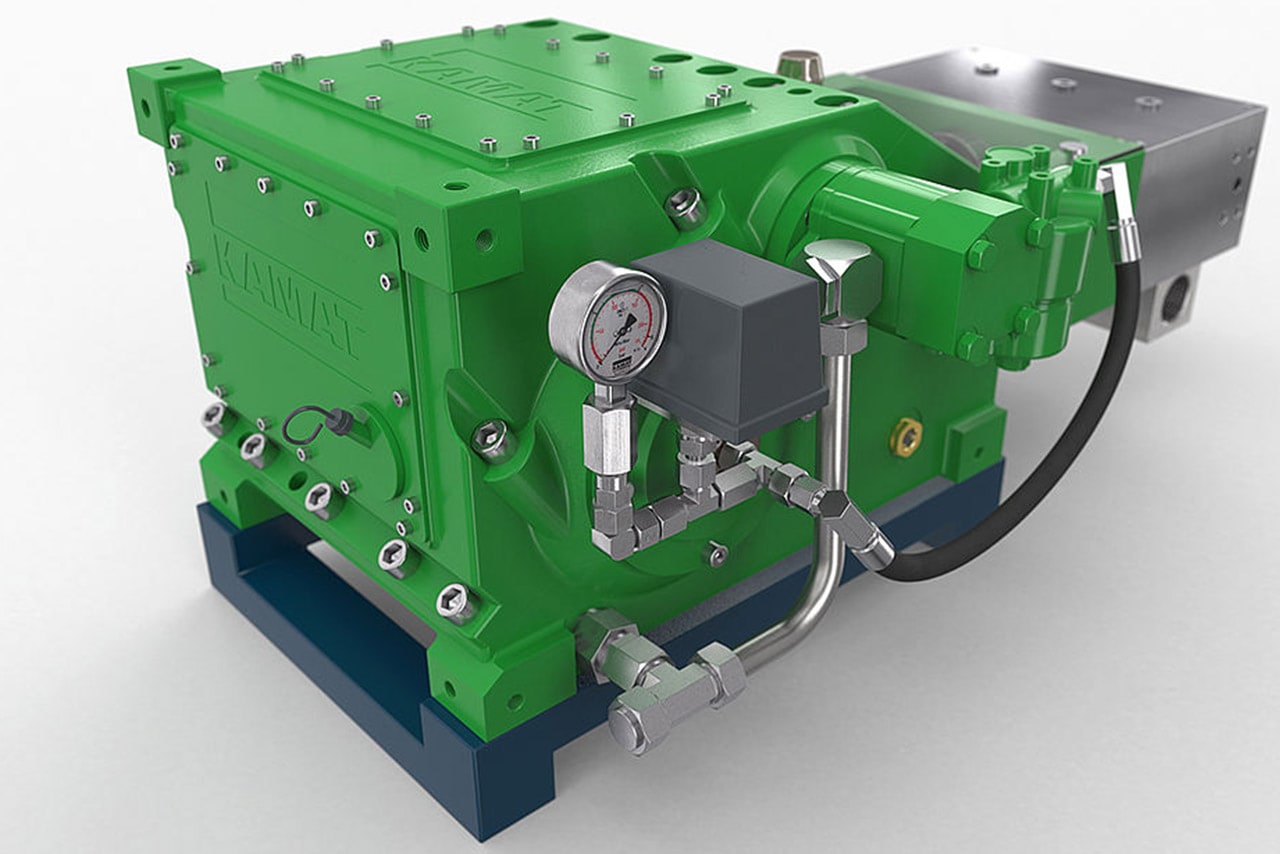

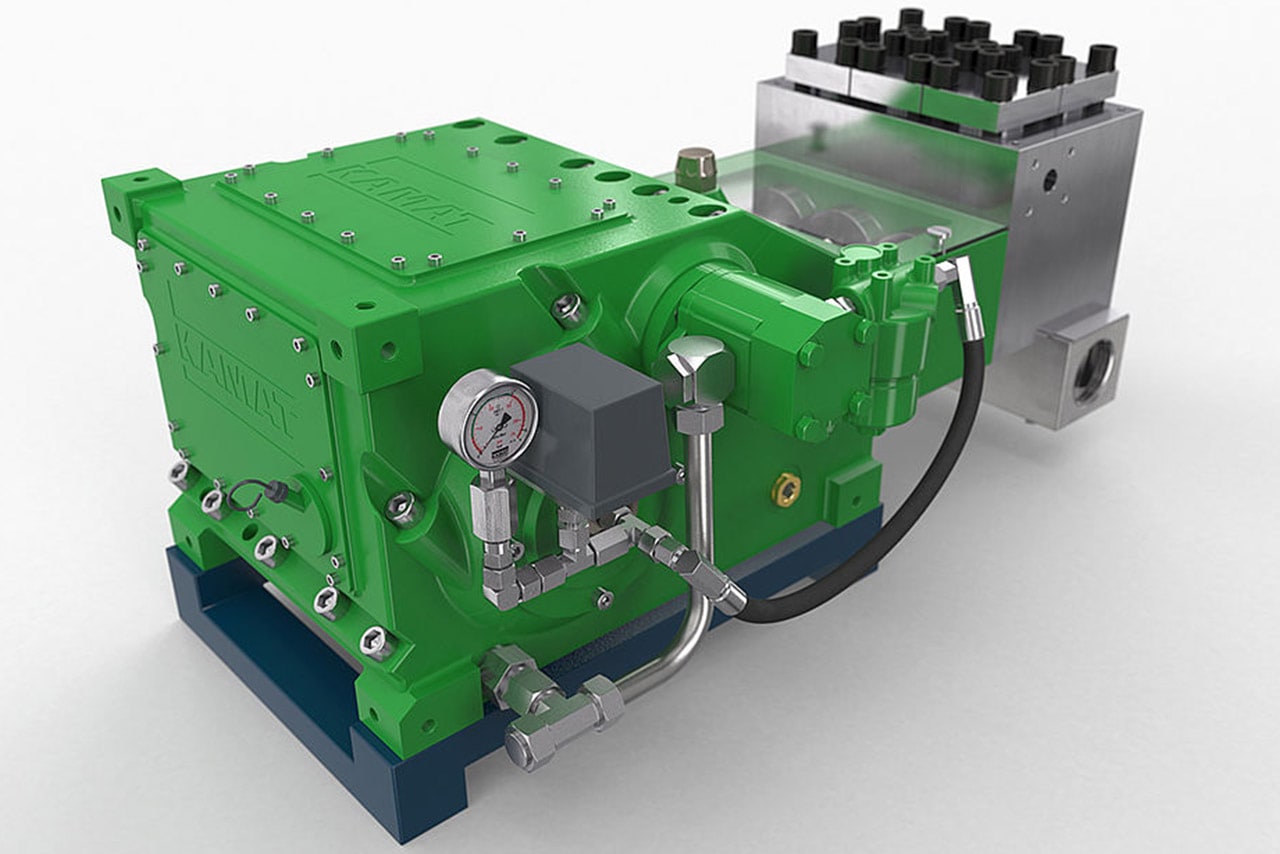

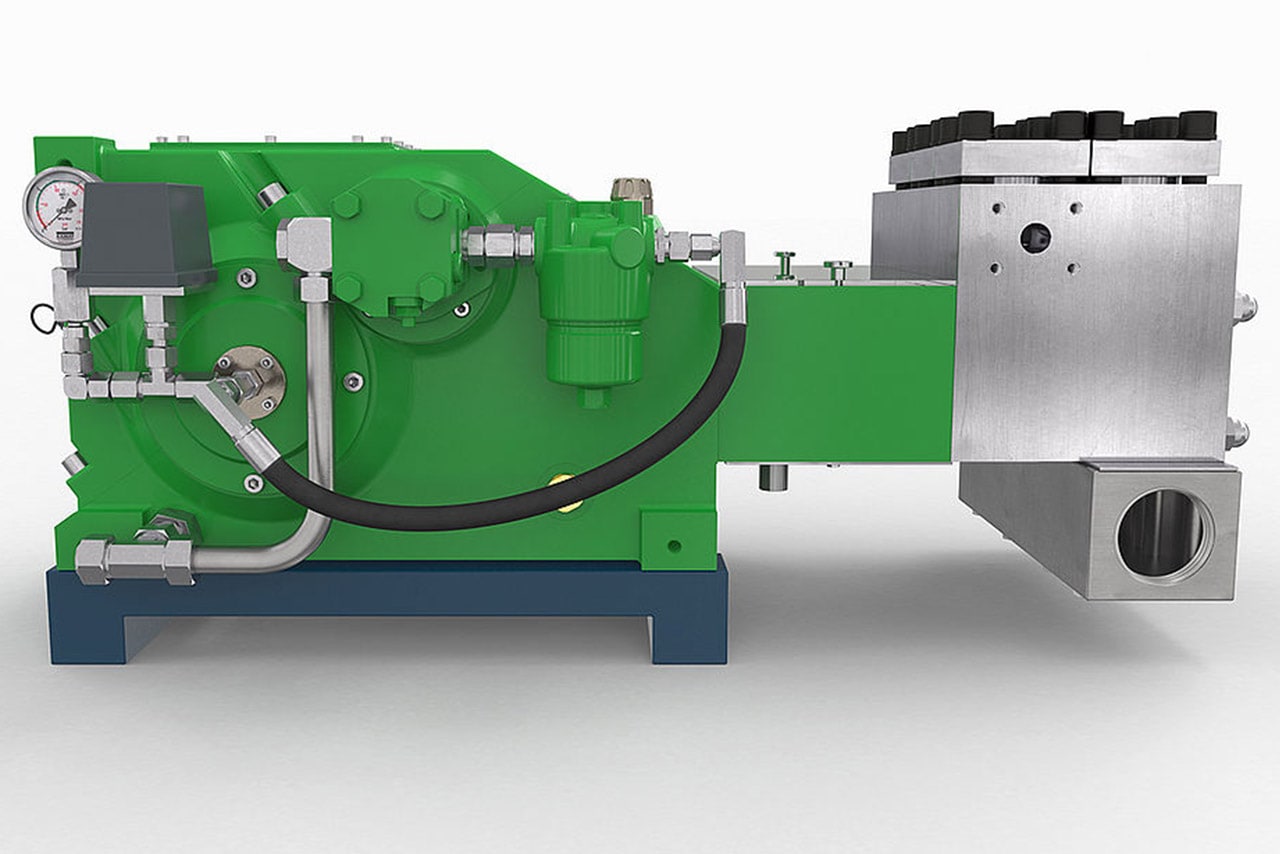

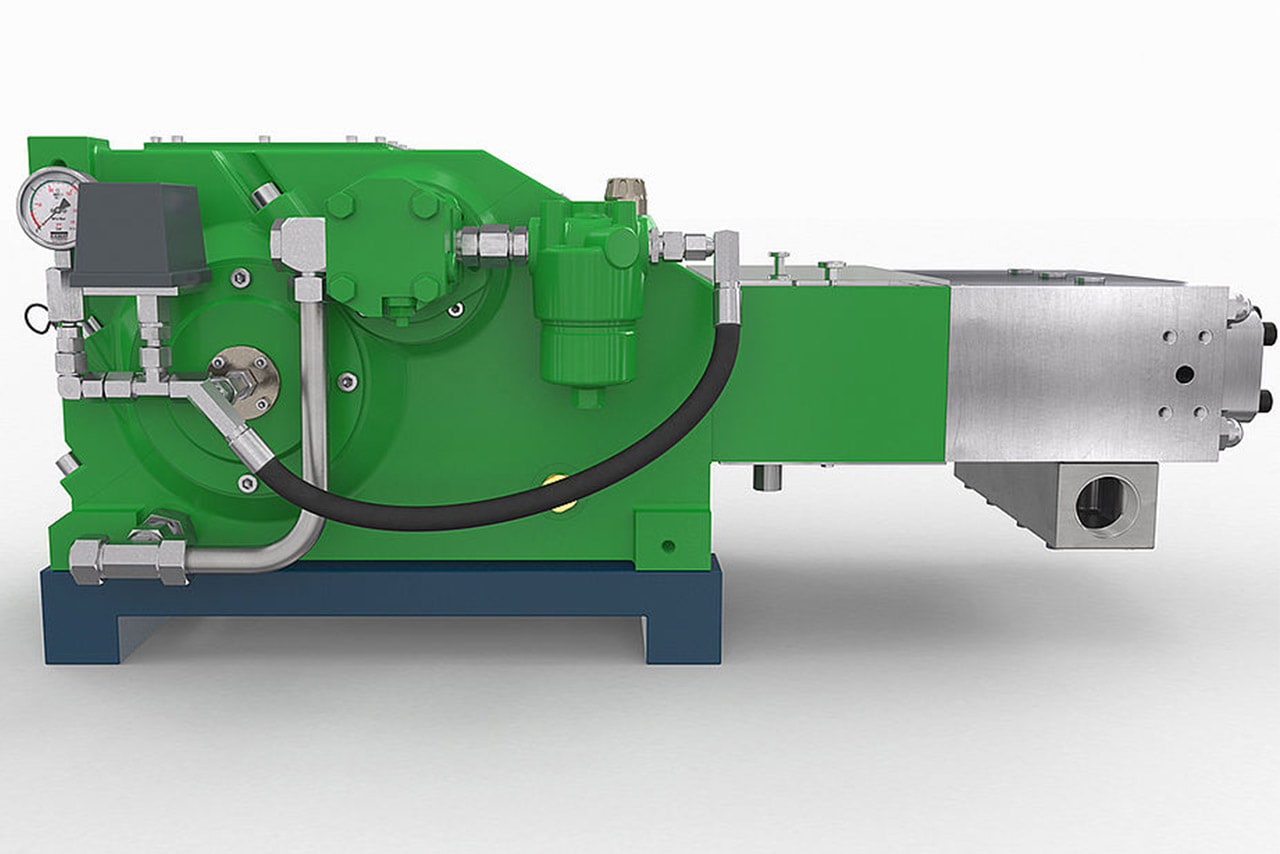

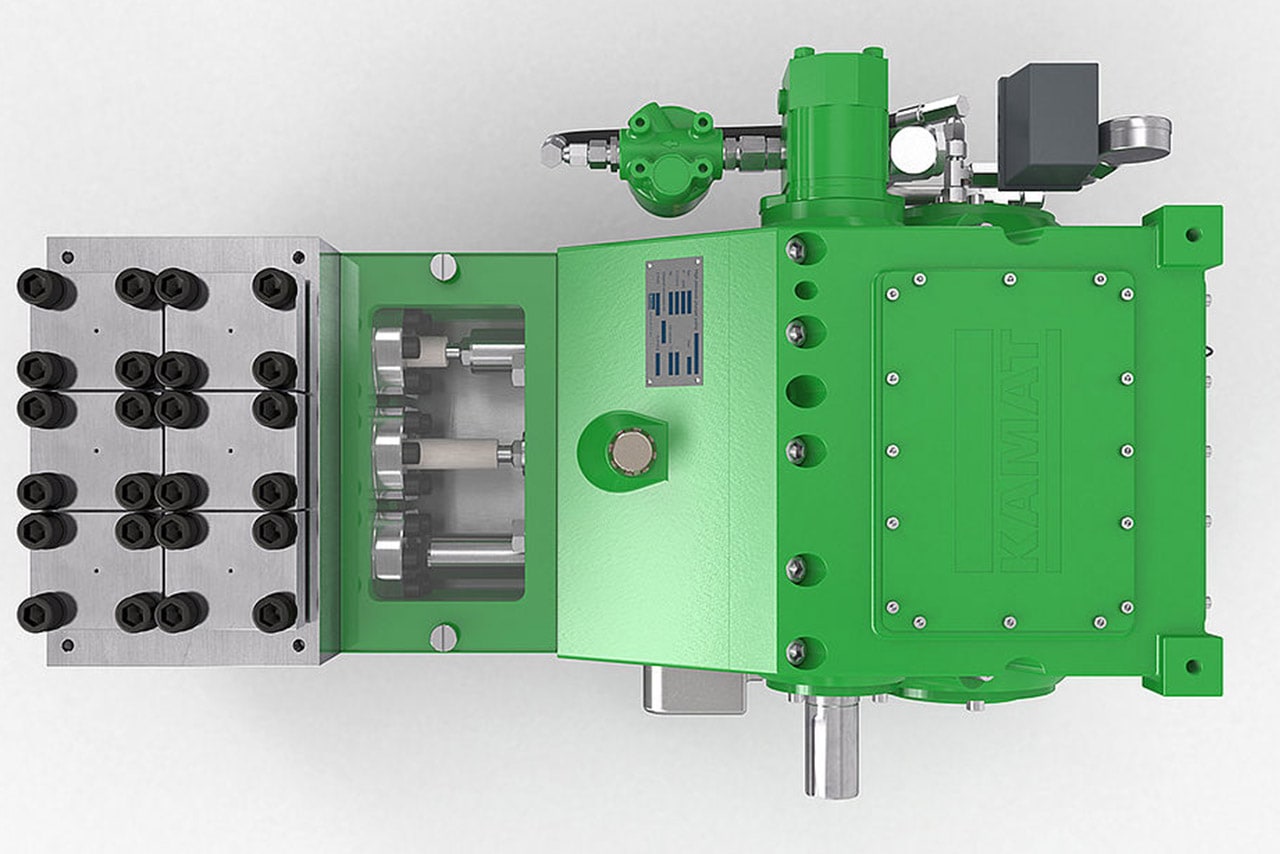

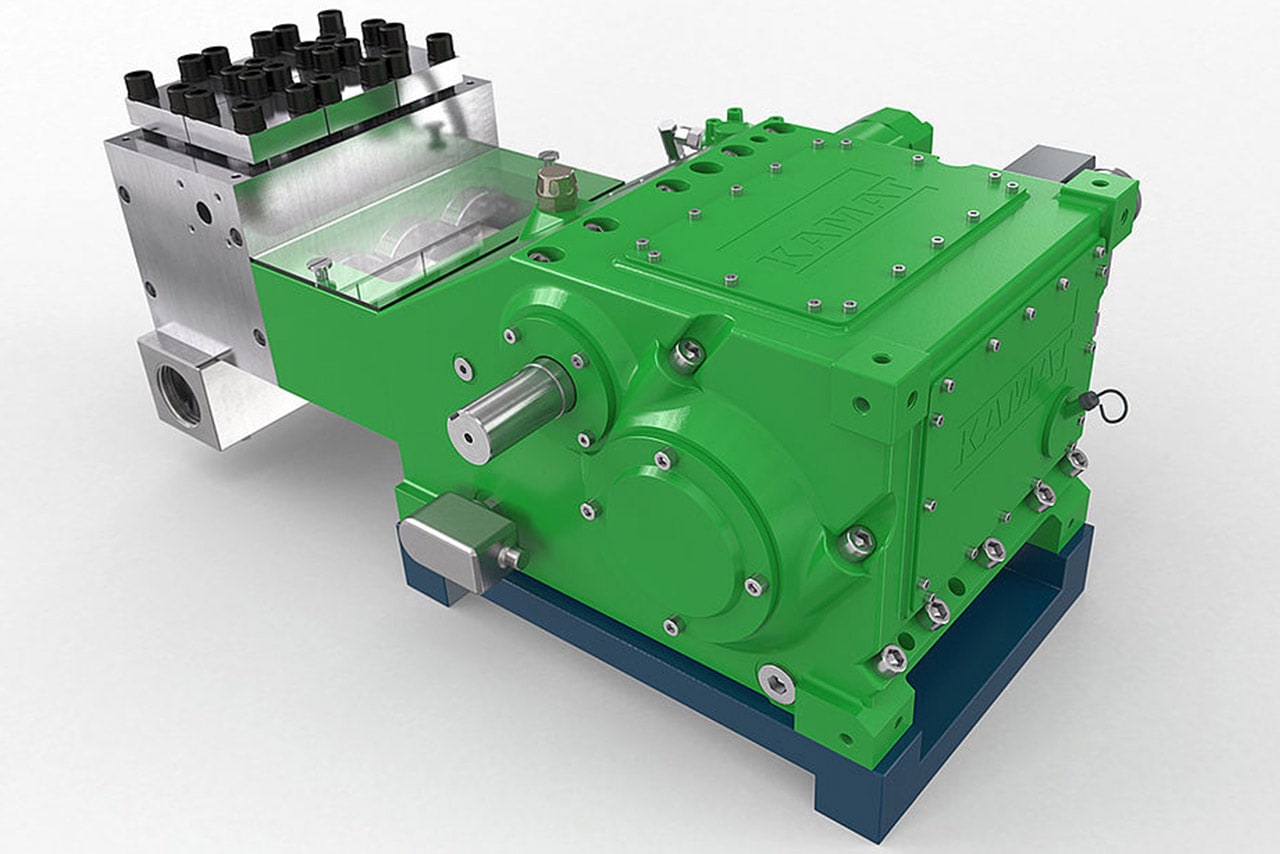

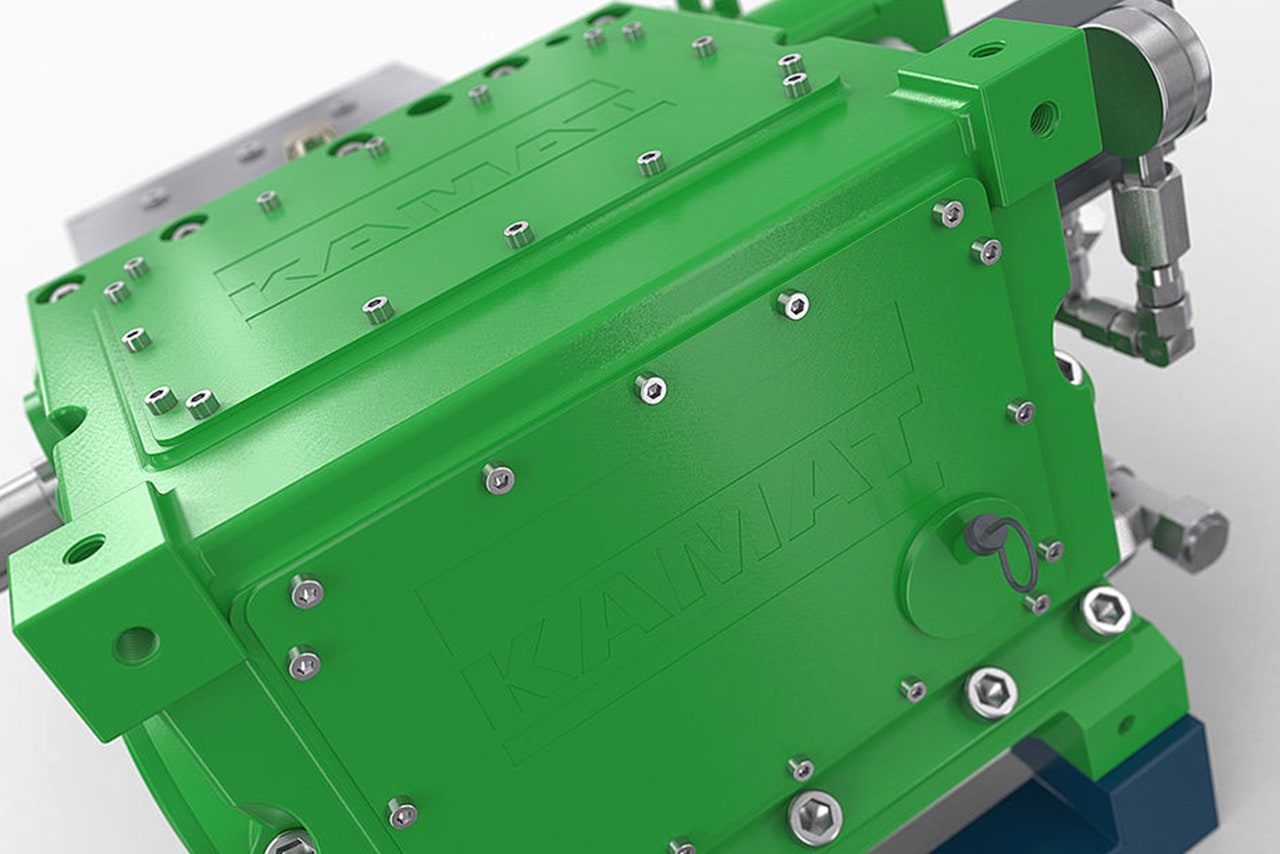

Triplex Plunger Pump K 10000-3G

KAMAT's K 10000 high-pressure pump offers a very wide application spectrum for industrial cleaning: With its 130 kW of power, the high-pressure pump is suitable for smaller applications, such as cleaning with a gun as well as for large-scale applications with surface cleaners or the Ship Hull Crawler. It is constructed in the classic KAMAT modular component system, which means that the pump's duty can be modified by simply by changing a few component parts. Thus the pumps can also be retrofitted at the customer's site with very little outlay. Like all KAMAT models, the pump is extremely reliable and the short stroke of the pump leads to a low level of wear.


  • Gear with forced lubrication
  • Optionally available with oil cooler
  • Integrated gear reduction-ratio
  • Also available in accordance with API 674 and/or ATEX
  • Special media, such as sea water, glycol, methanol, oils etc., on request
  • Filtration up to 350 ┬Ám

Technical Specification

  • Flow15 - 449 l/min
  • Pressure90 - 3500 bar
  • Power Input75 - 130 kw
  • Weight440 kg
