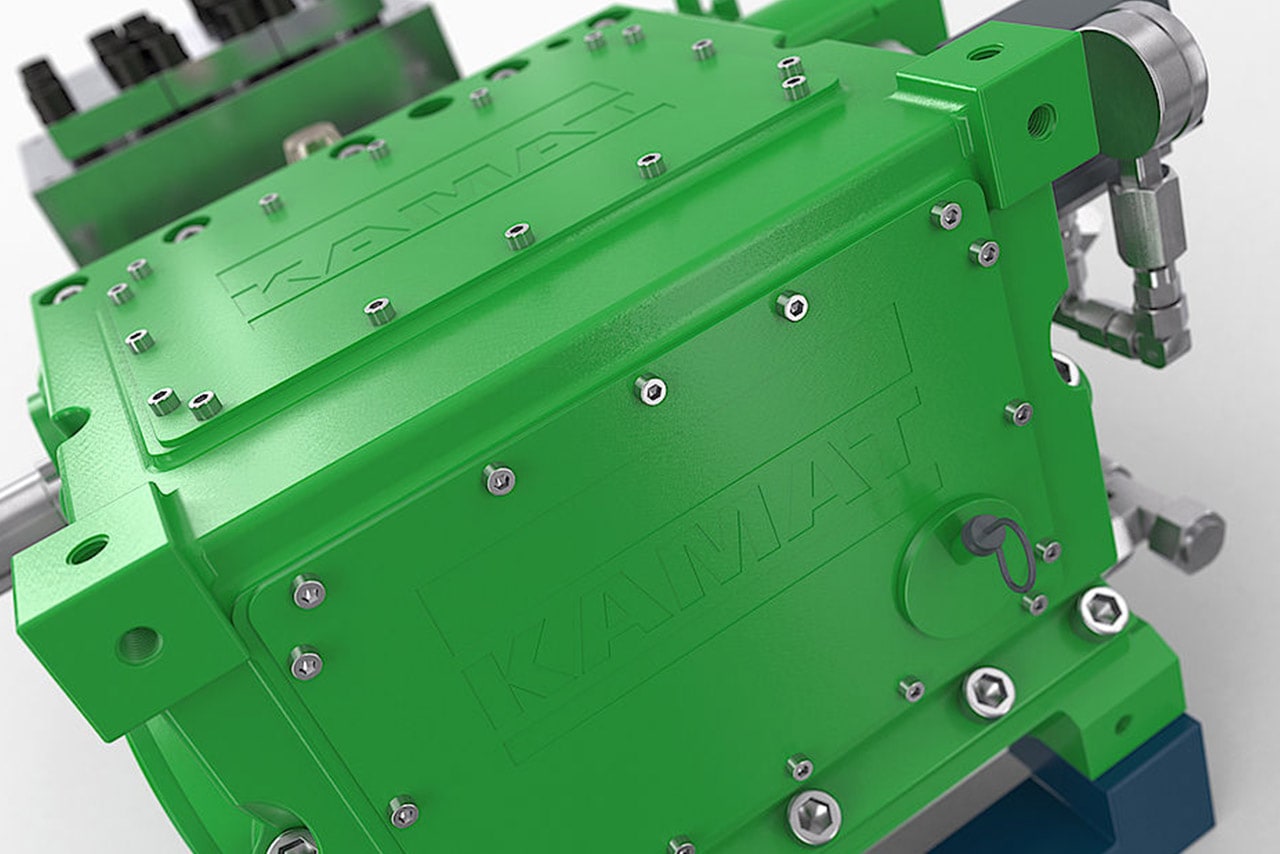

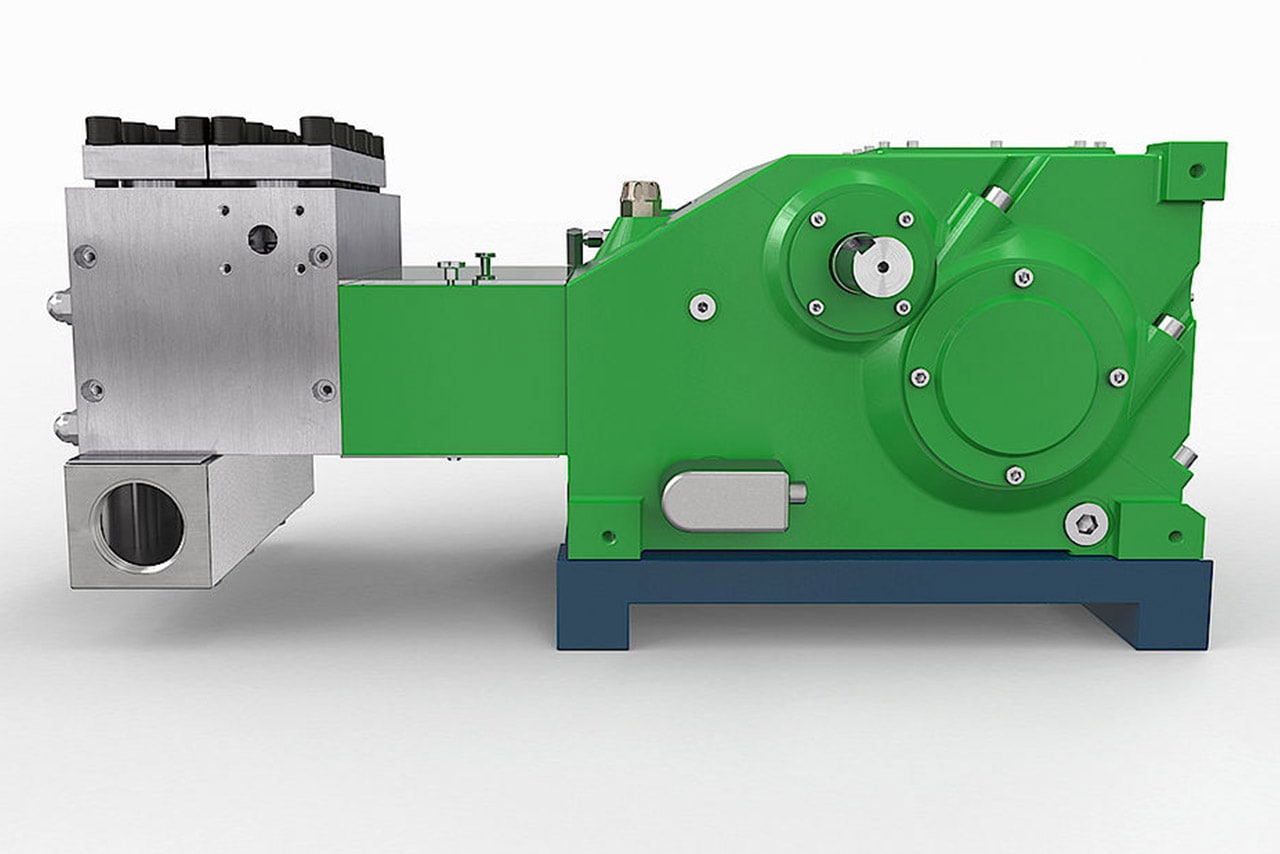

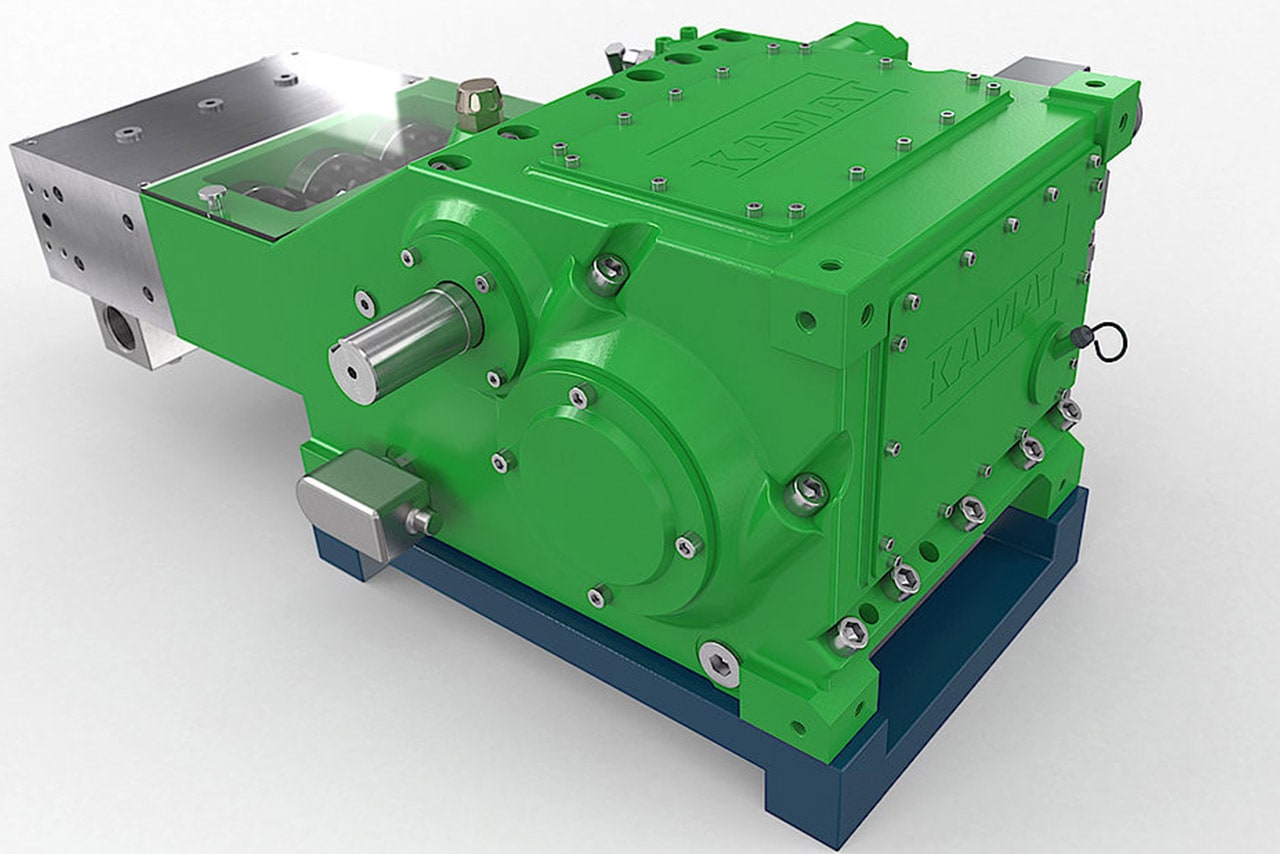

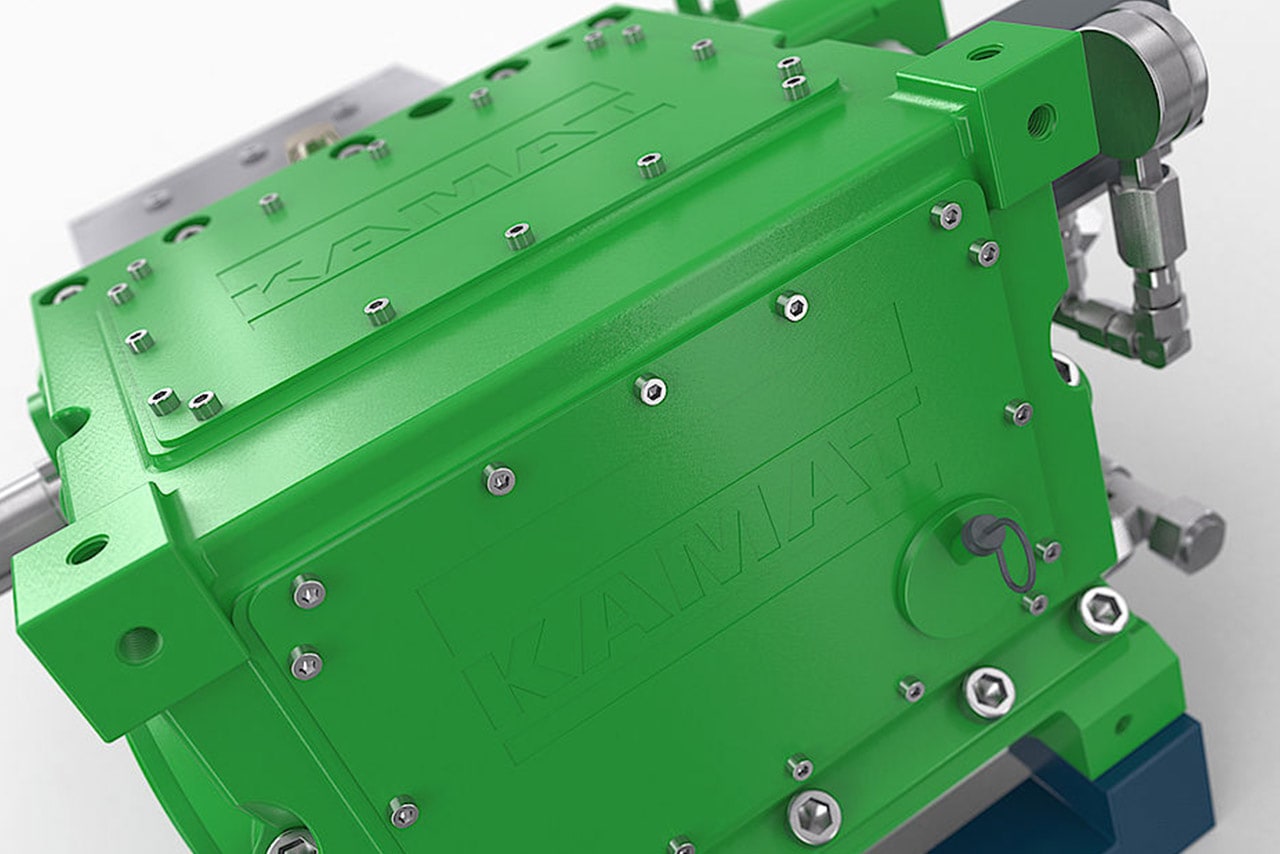

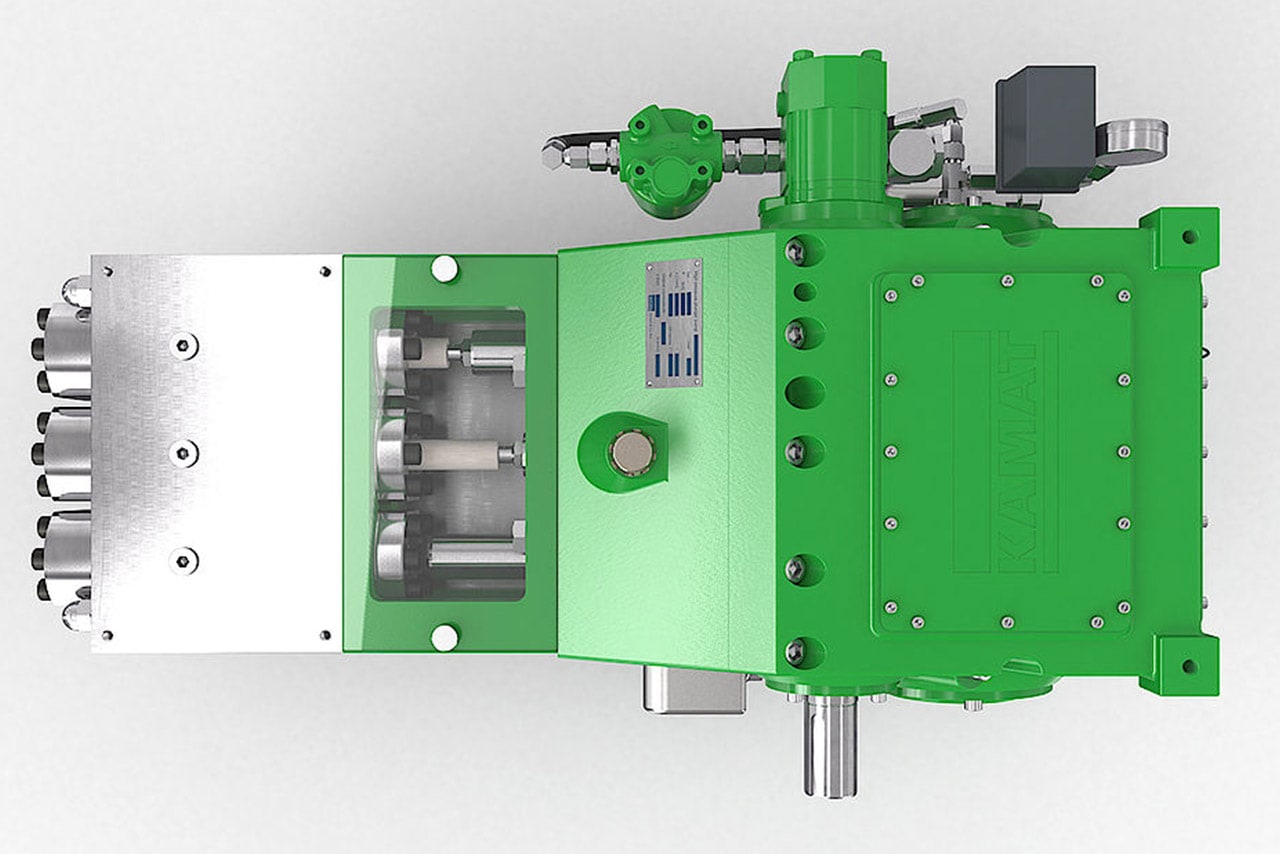

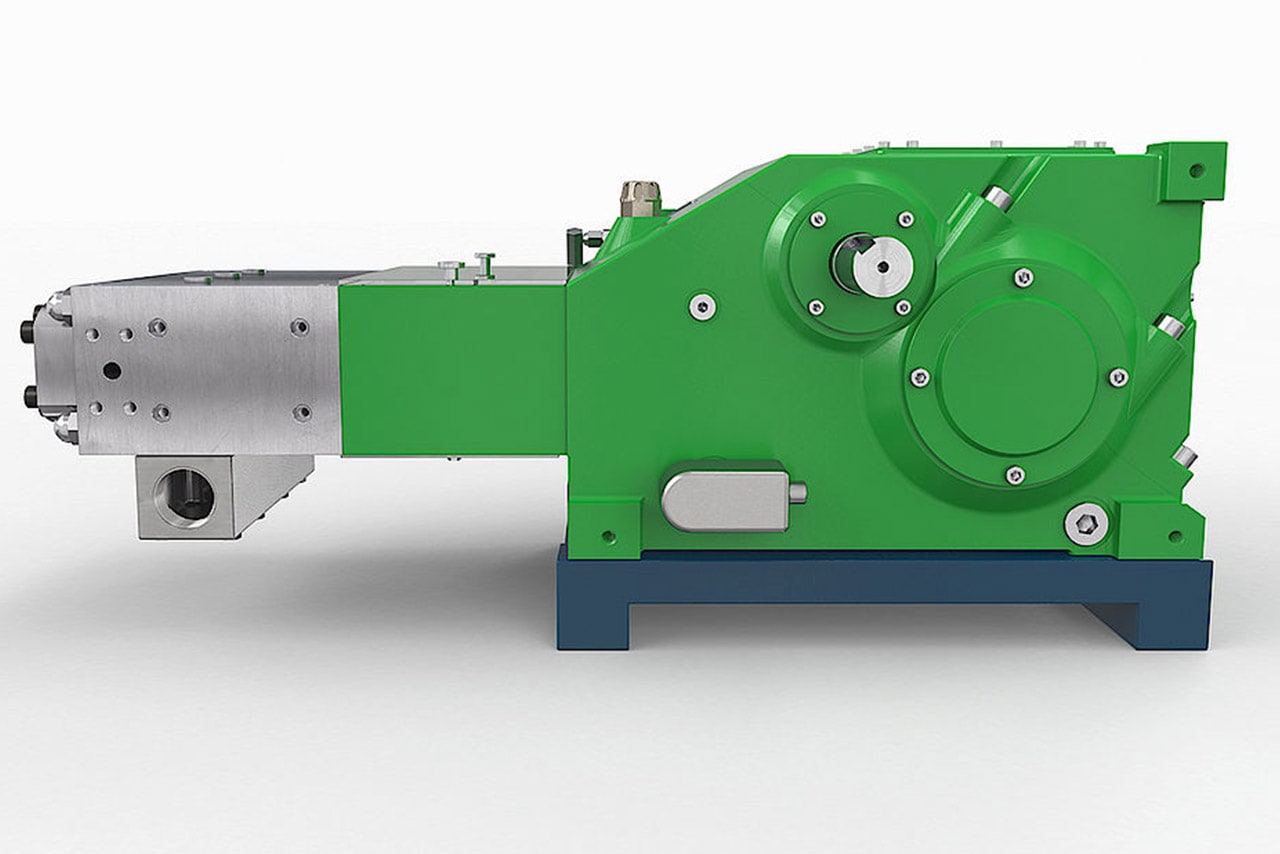

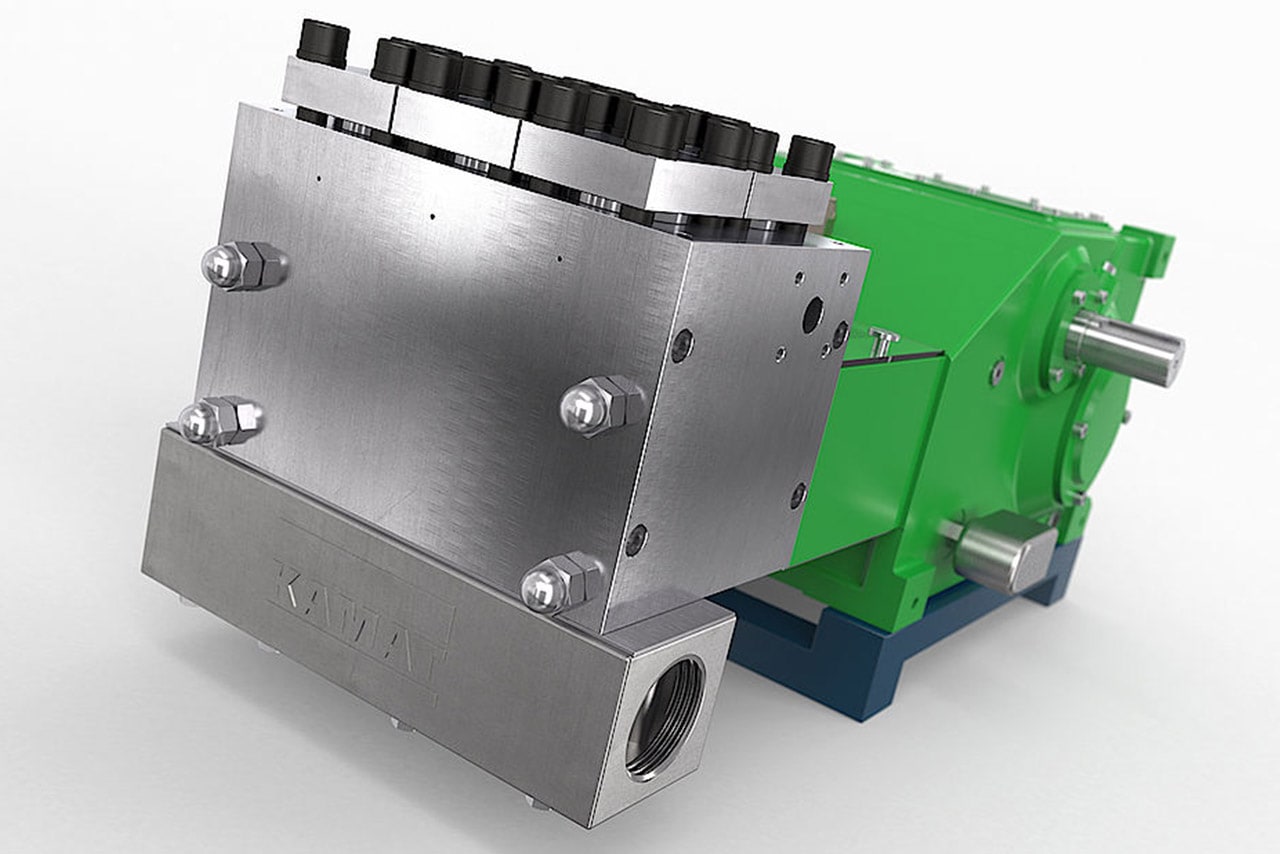

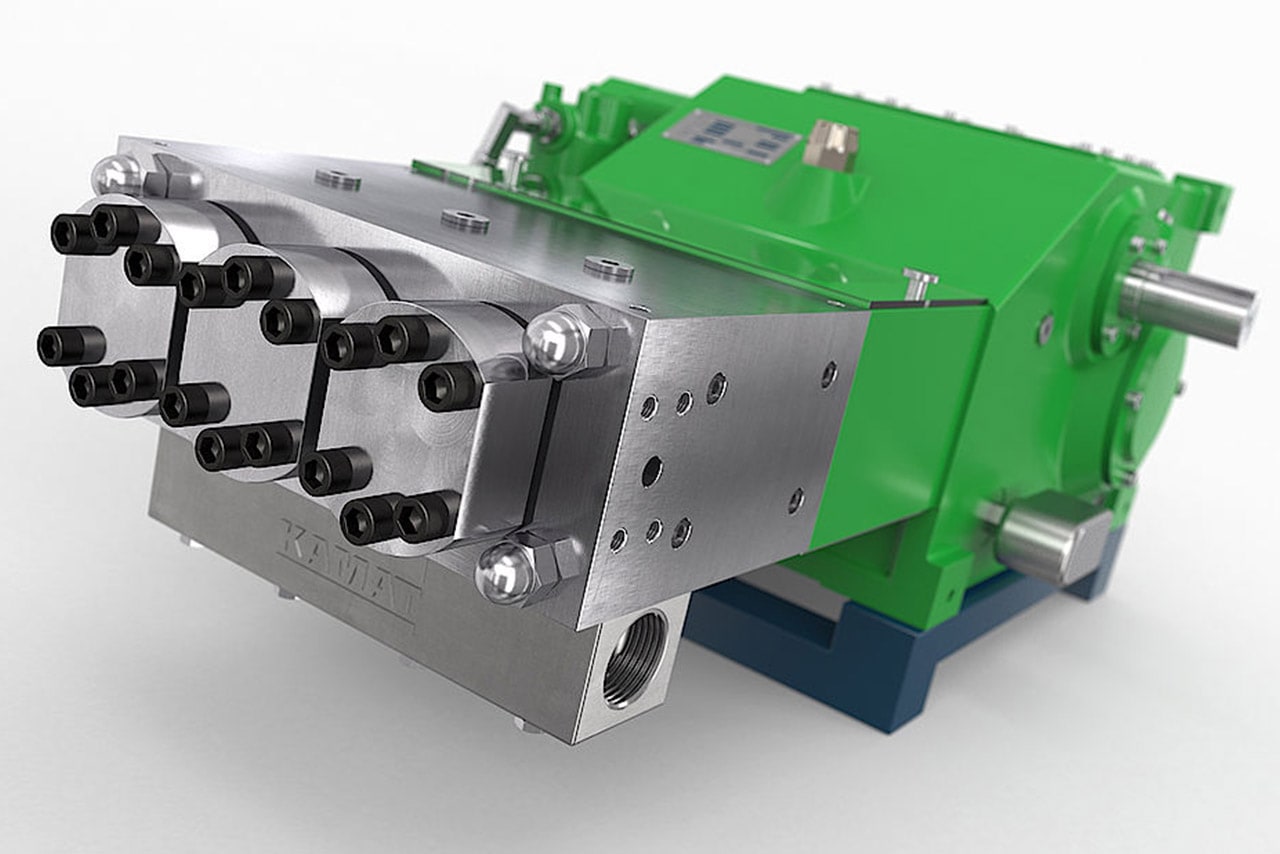

Triplex Plunger Pump K 13000 - 3G

People requiring high-pressure pumps for jetting or hydraulic applications , suitable for 24/7 operation, have a powerful entry model with the K 13000. The 130 kW high-pressure pump is provided with a gearbox with forced lubrication and can be optionally equipped with an oil cooler for demanding continuous operation. This pump model is also constructed in the classic KAMAT modular component system, so that an adaptation to different pumped media can be carried out simply. Due to relatively few component parts, the pump is very rugged and this applies particularly for 24/7 operation.

Characteristics:

  • Gear with forced lubrication

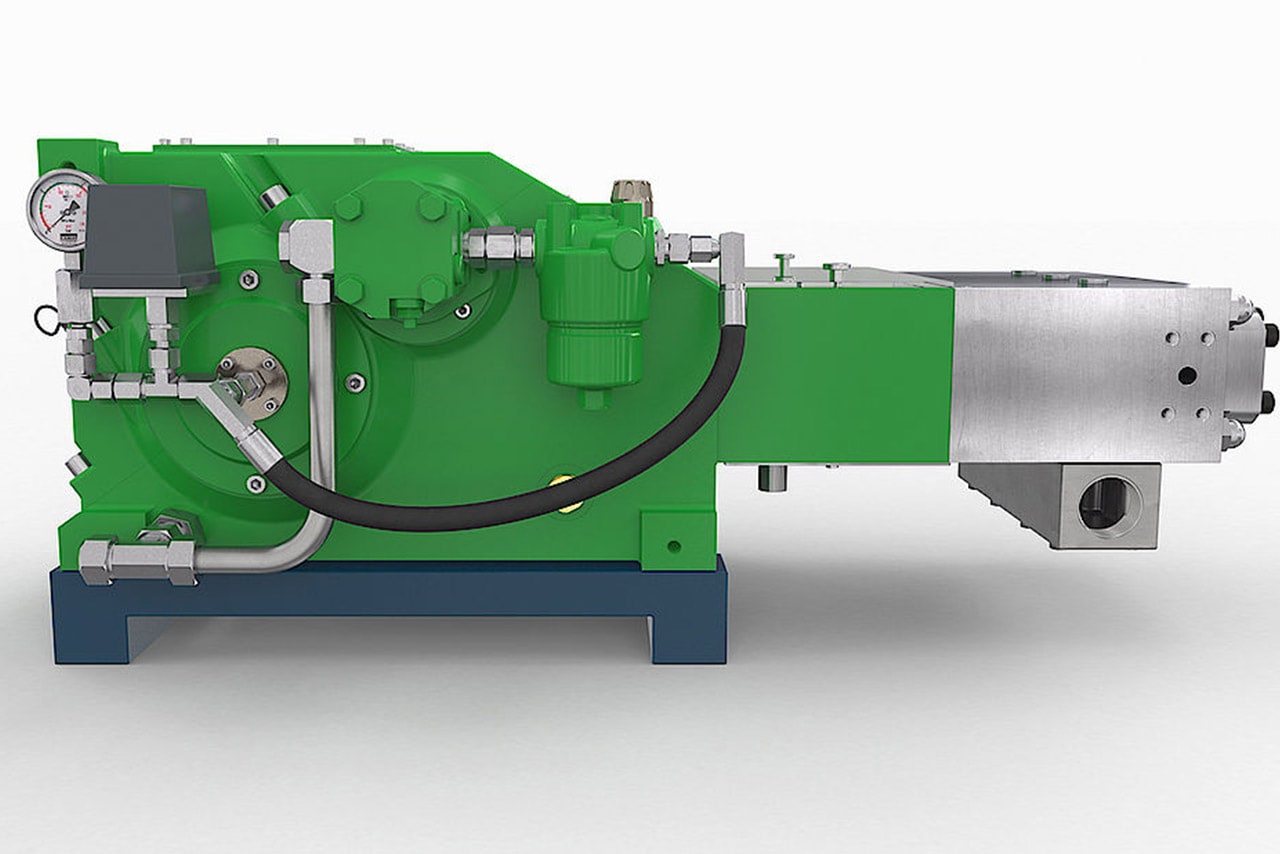

  • Optionally available with oil cooler
  • Integrated gear reduction-ratio
  • Also available in accordance with API 674 and/or ATEX
  • Special media, such as sea water, glycol, methanol, oils etc., on request
  • Filtration up to 350 µm

Technical Specification

  • Flow38 - 496 l/min
  • Pressure80 - 1500 bar
  • Power Input75 - 130 kw
  • Weight440 kg
