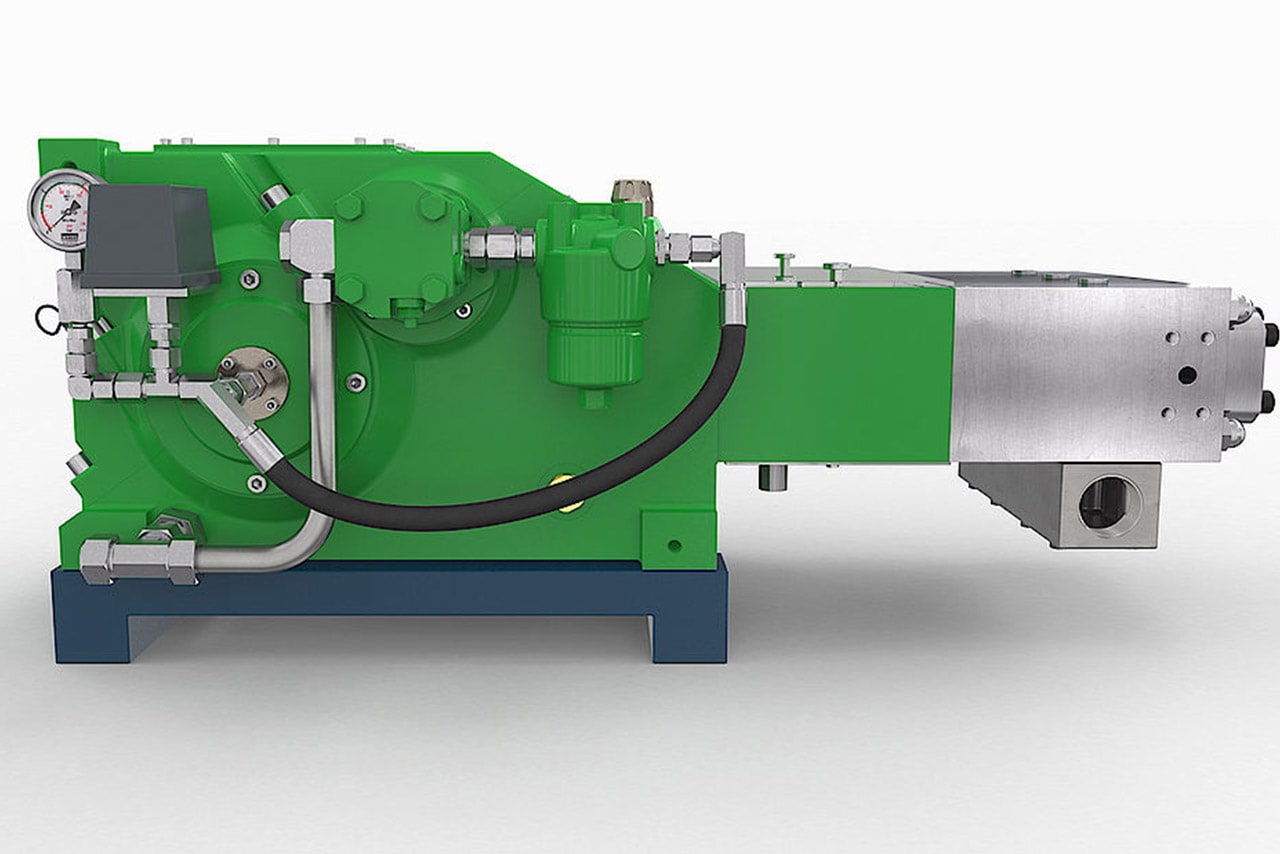

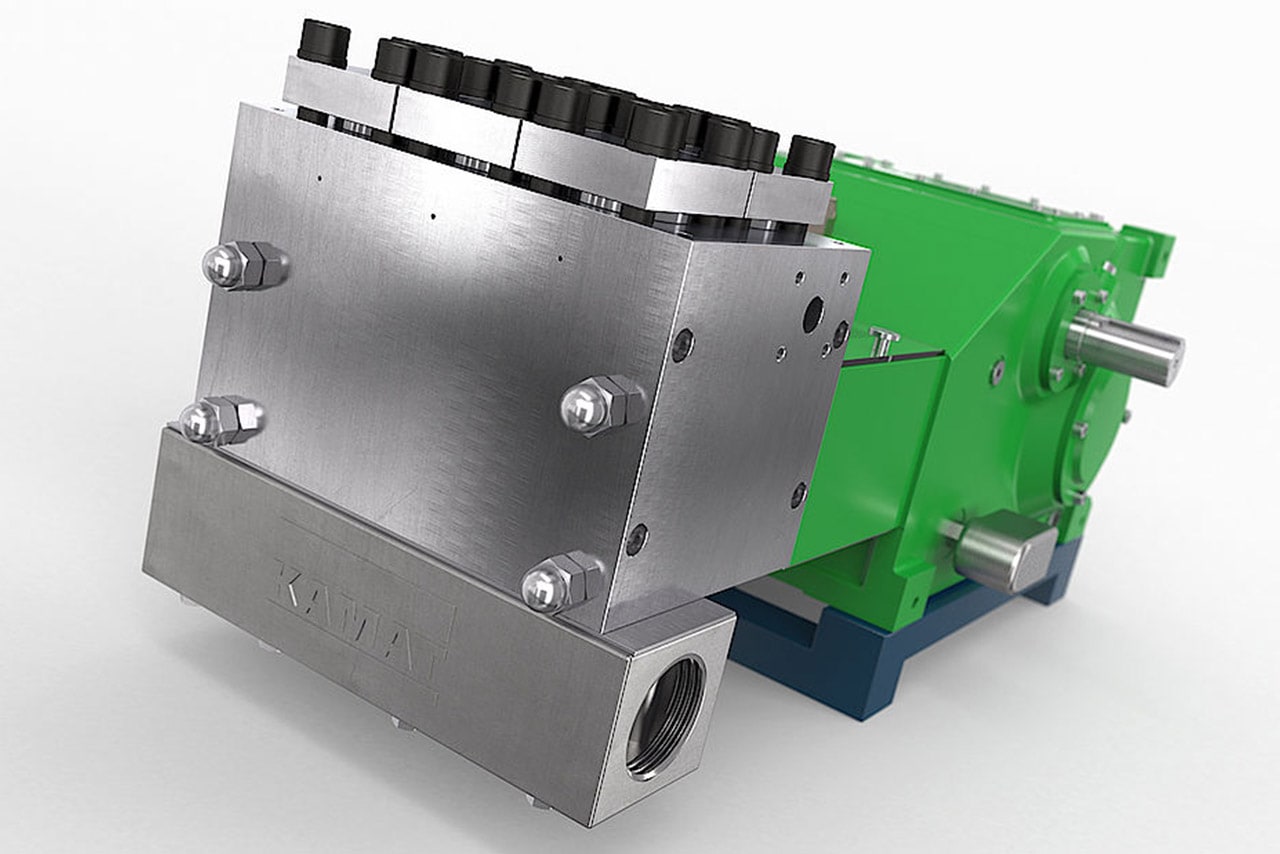

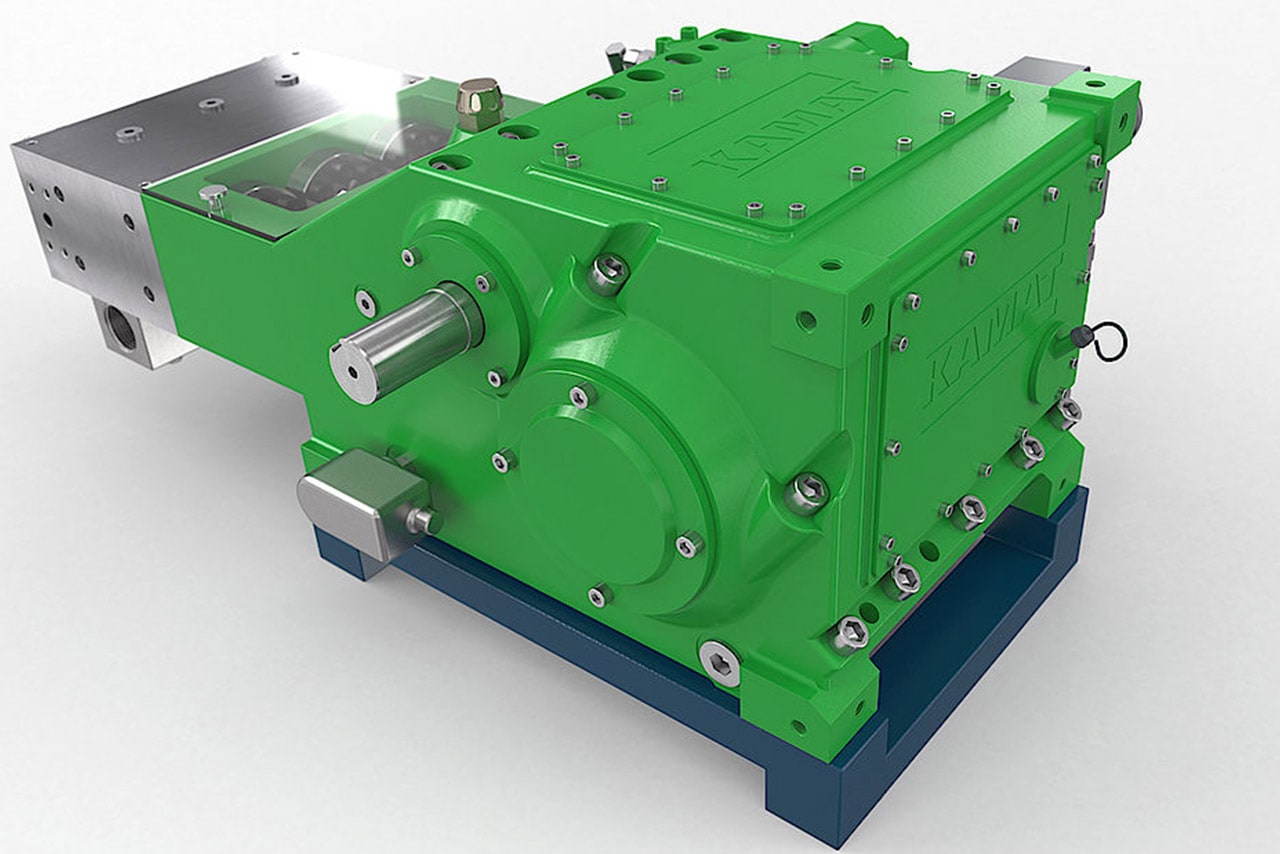

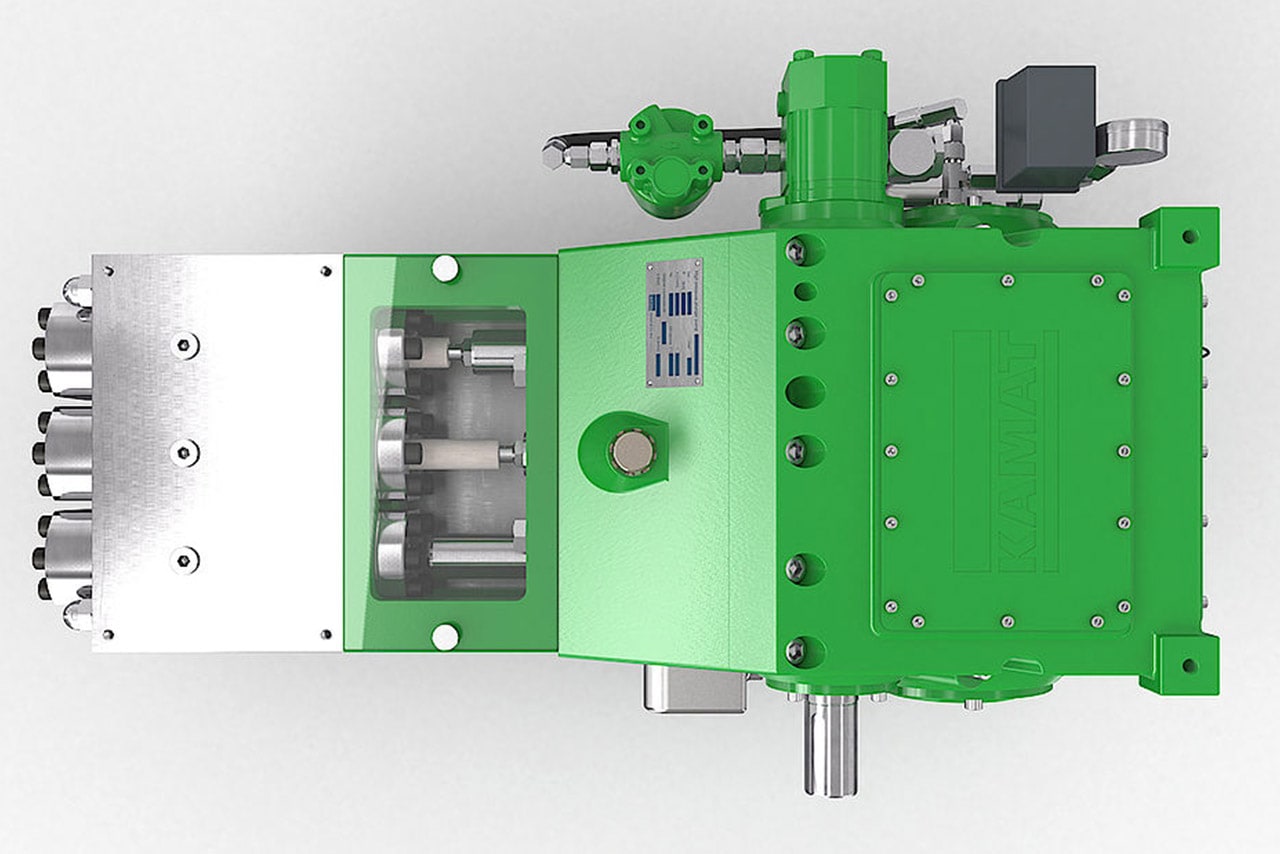

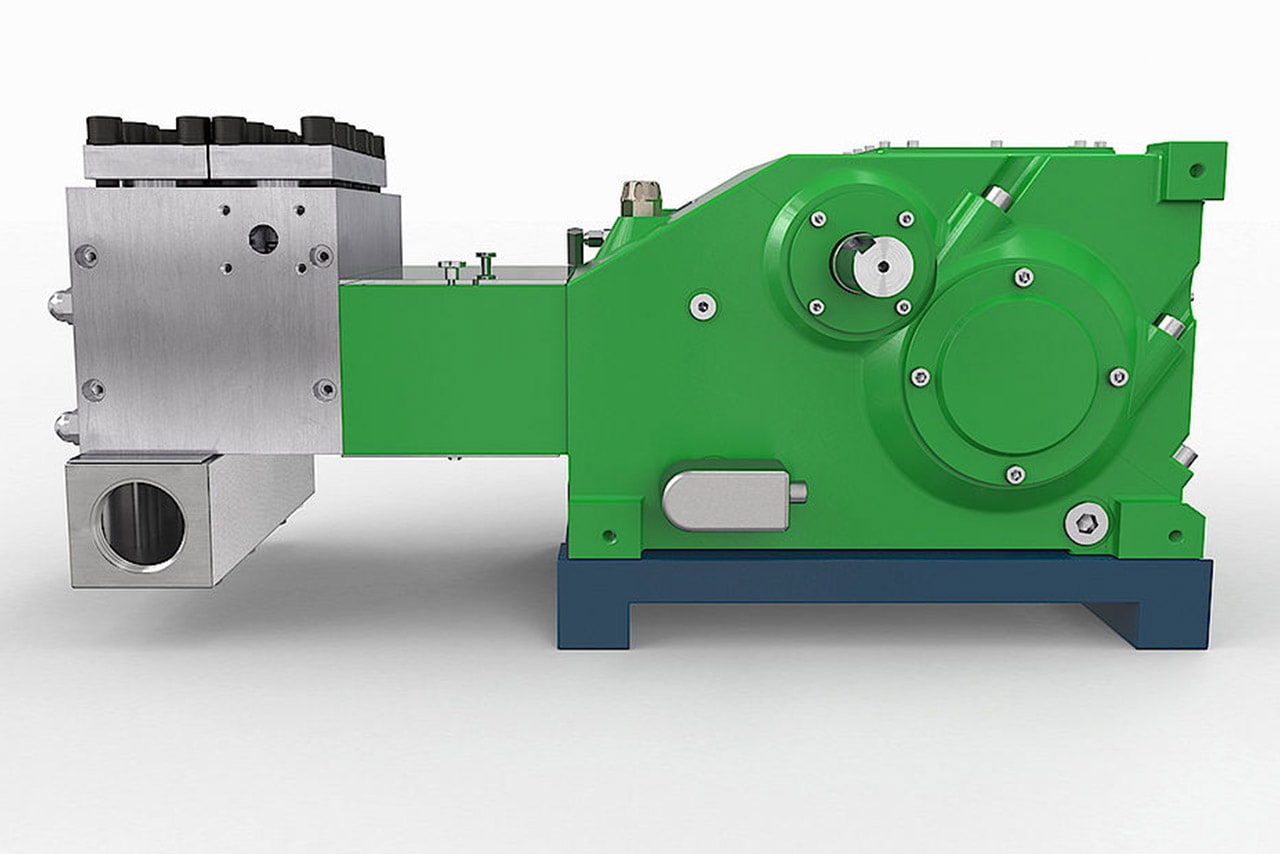

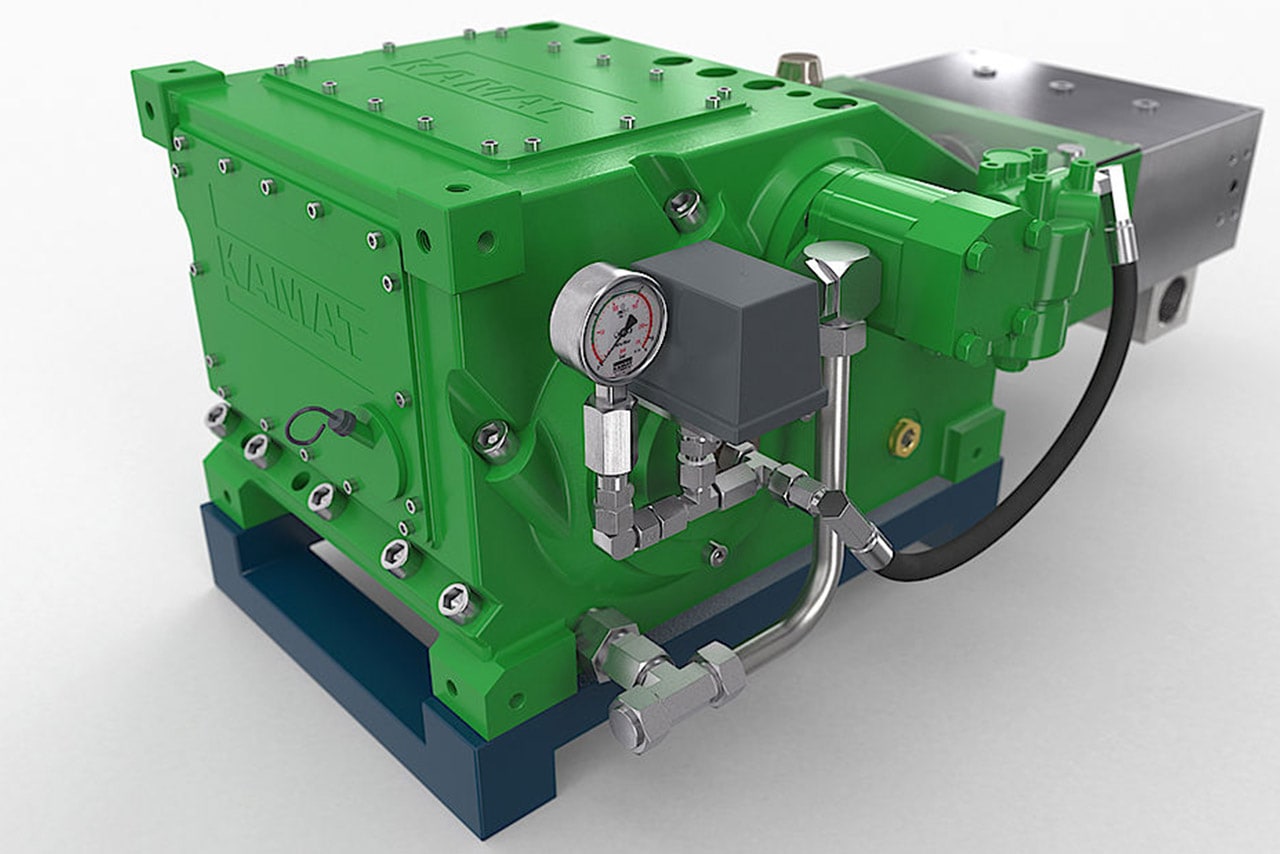

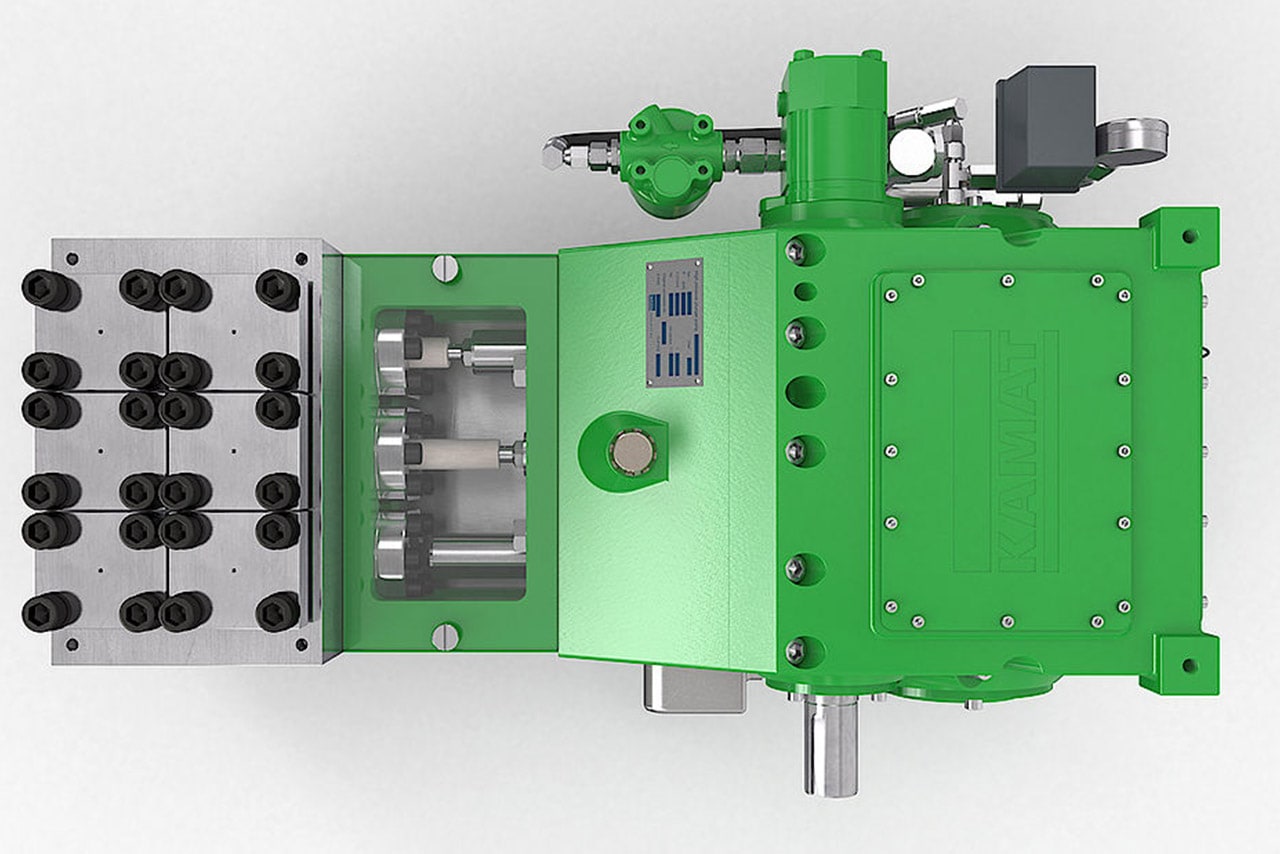

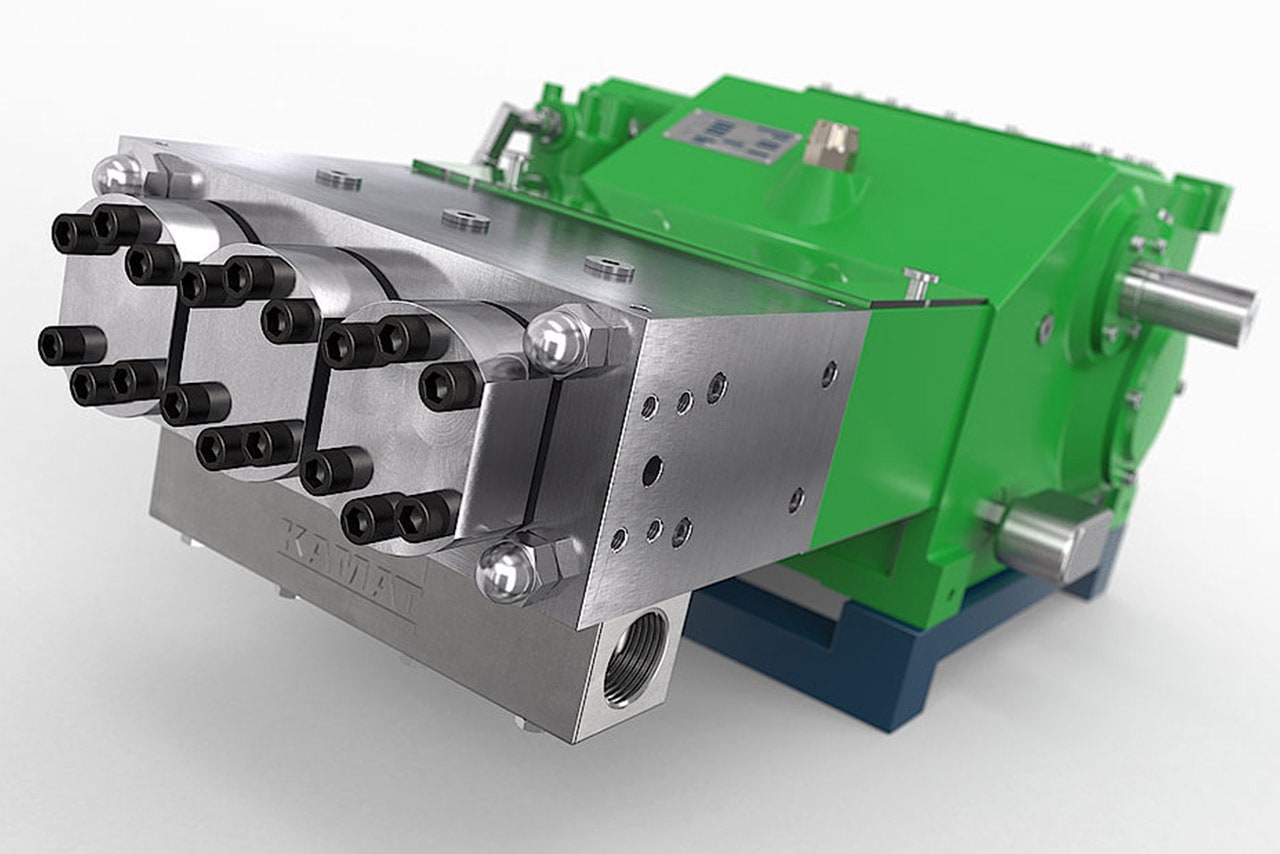

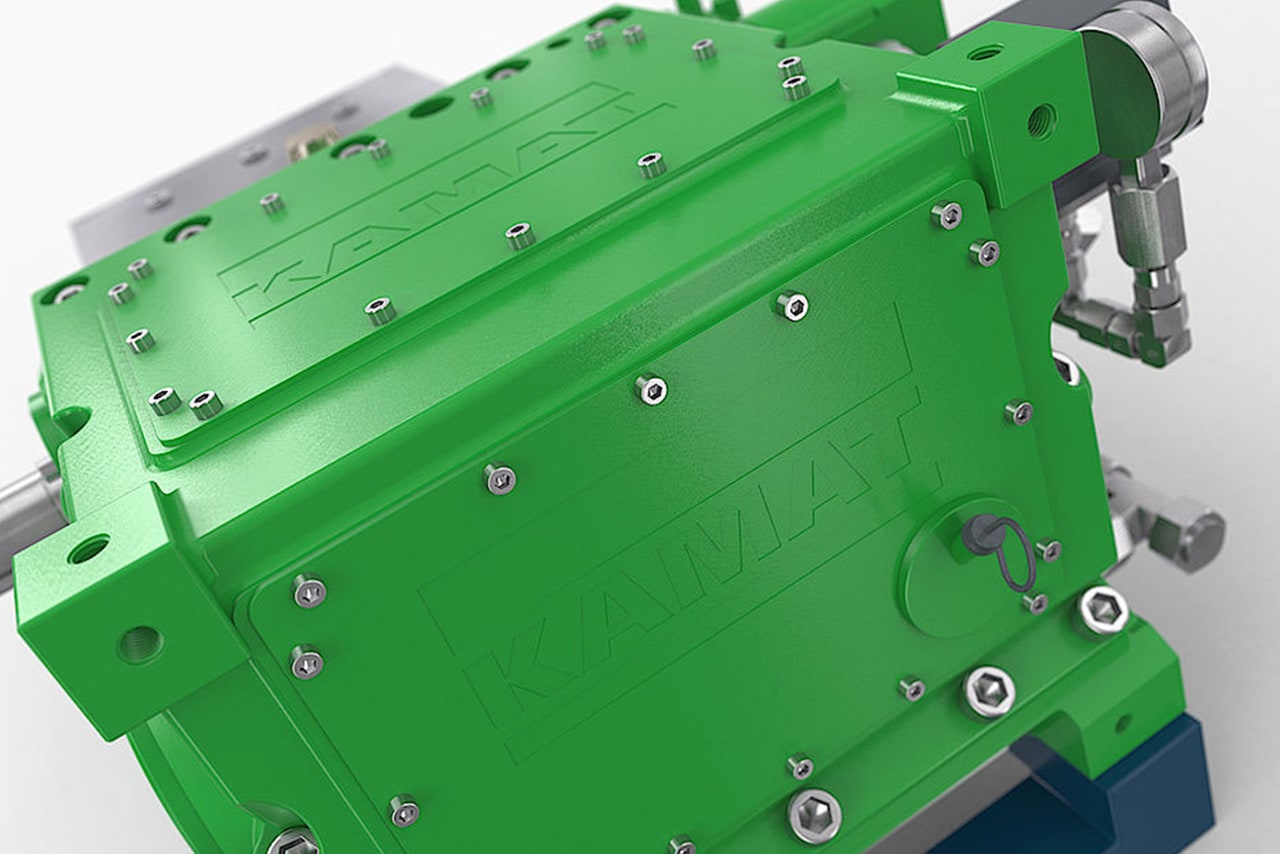

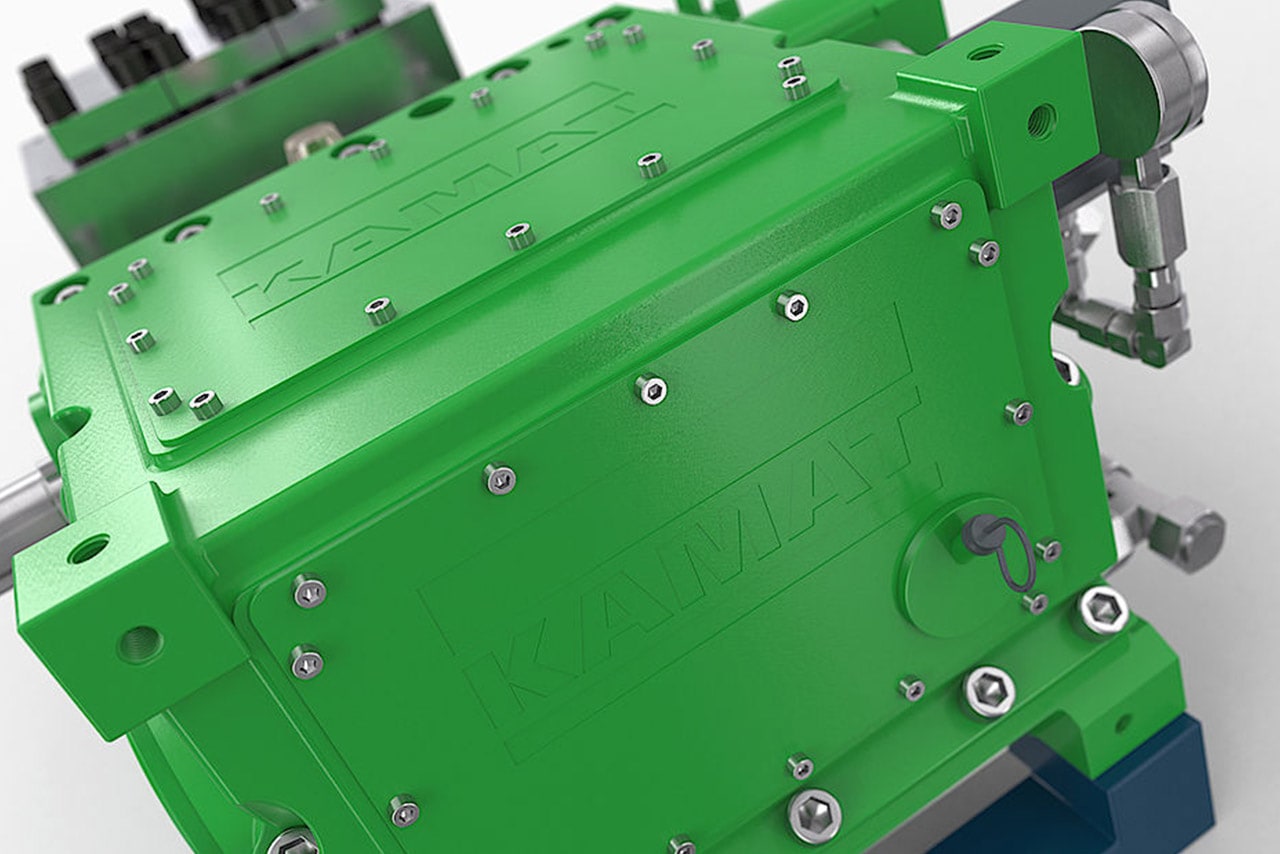

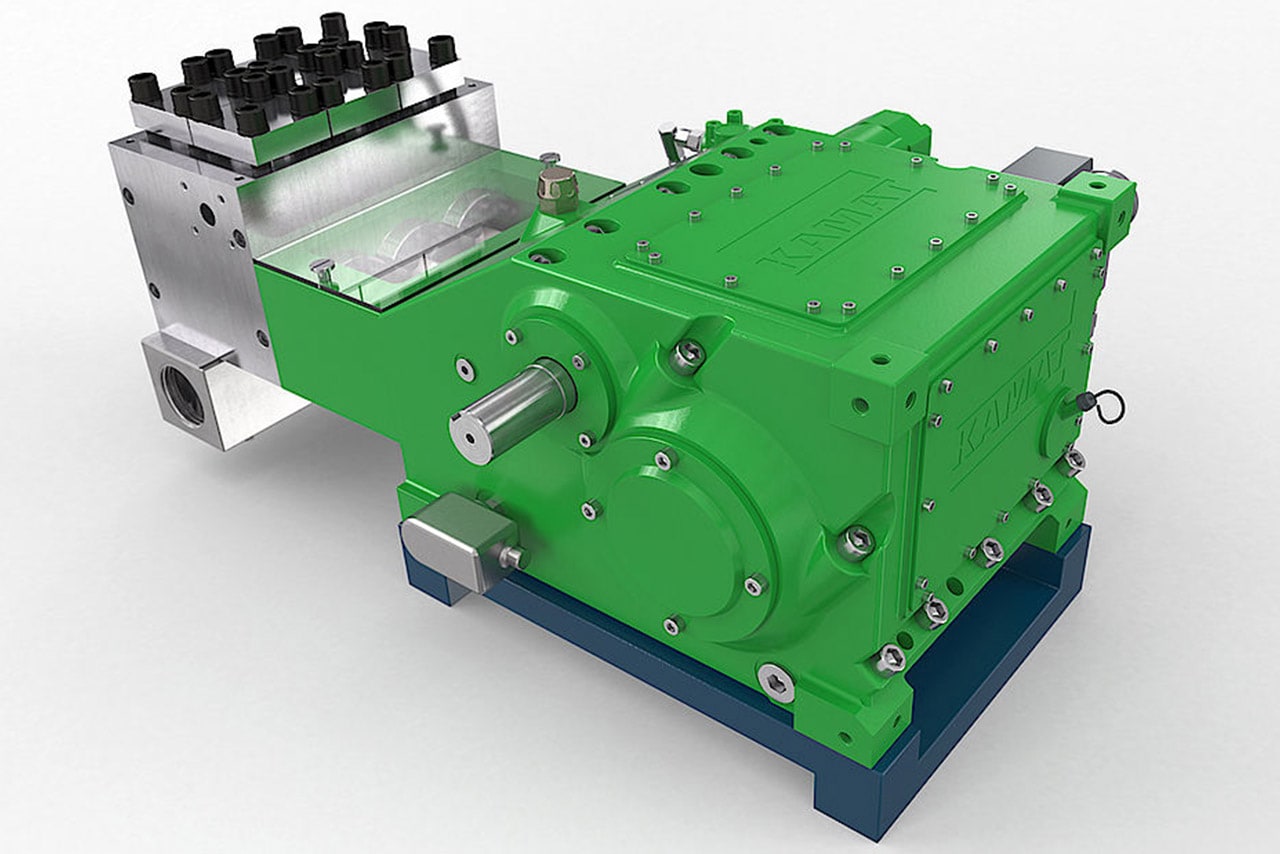

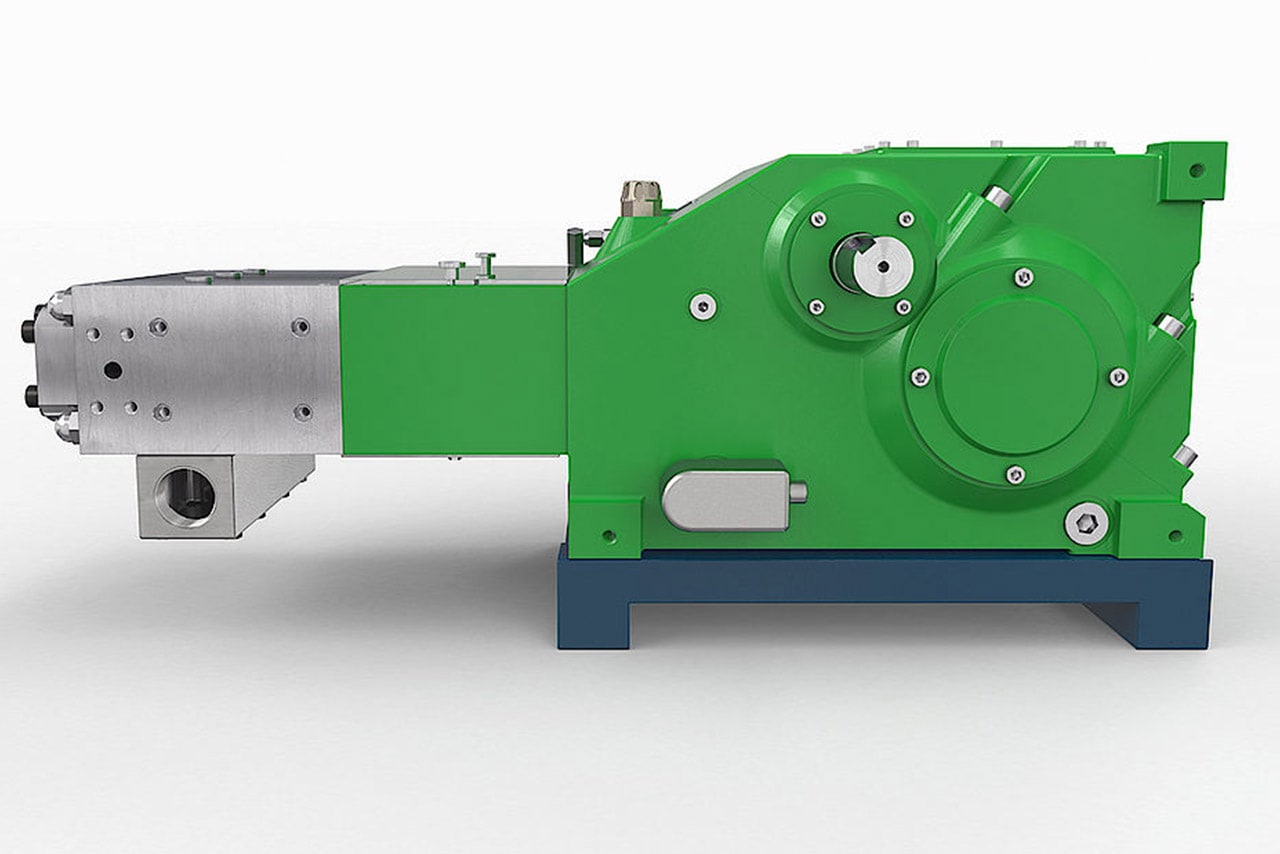

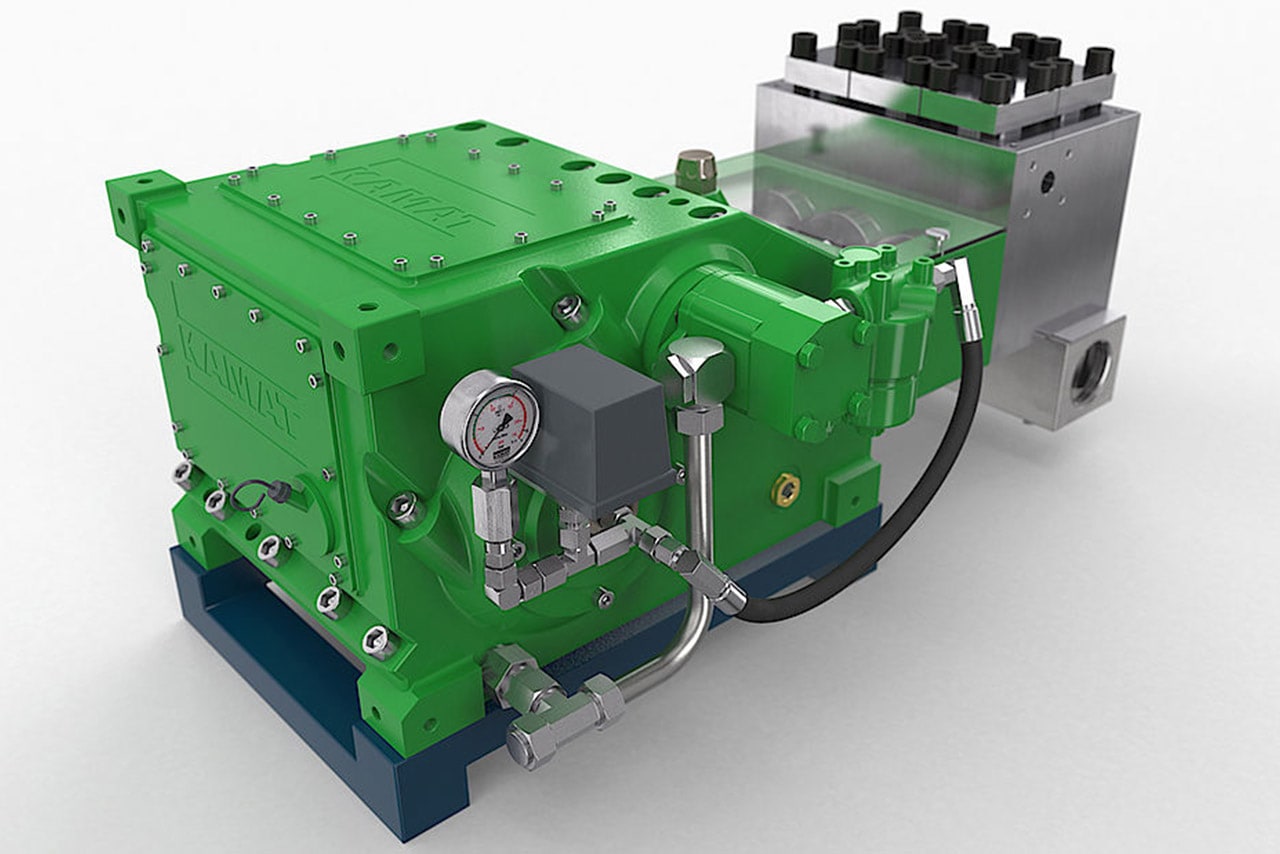

Triplex Plunger Pump K 18000-3G
The K 18000 is provided with forced lubrication which allows it to be used continuously. Its main area of application is in industrial cleaning. In case of large ship surfaces, the combination of the pump with the Ship Hull Crawler With 180 kW, the performance of the pump is far higher than that of the K 13000. It is mostly selected when just this higher performance is required, but where the K 25000 is too large for the application. The KAMAT modular component system with all its advantages is also used in this pump: Pump heads which can be changed simply and change sets for different requirements, as well as few component parts, are the keywords here for reliability and simple maintenance.
Characteristics:
- Gear with forced lubrication
- Optionally available with oil cooler
- Integrated gear reduction-ratio
- Also available in accordance with API 674 and/or ATEX
- Special media, such as sea water, glycol, methanol, oils etc., on request
- Filtration up to 350 µm
Technical Specification
- Flow24 - 522 l/min
- Pressure110 - 3500 bar
- Power Input110 - 180 kw
- Weight440 kg
