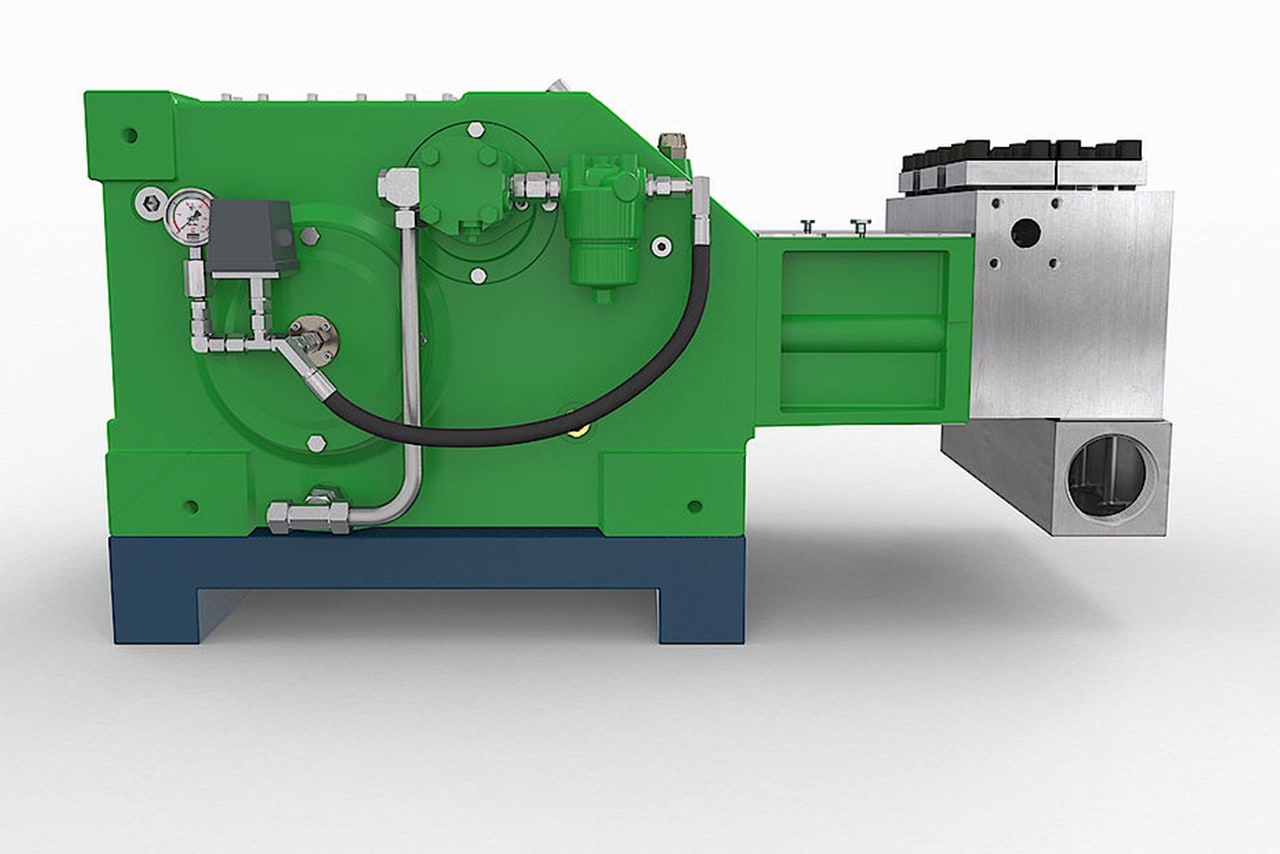

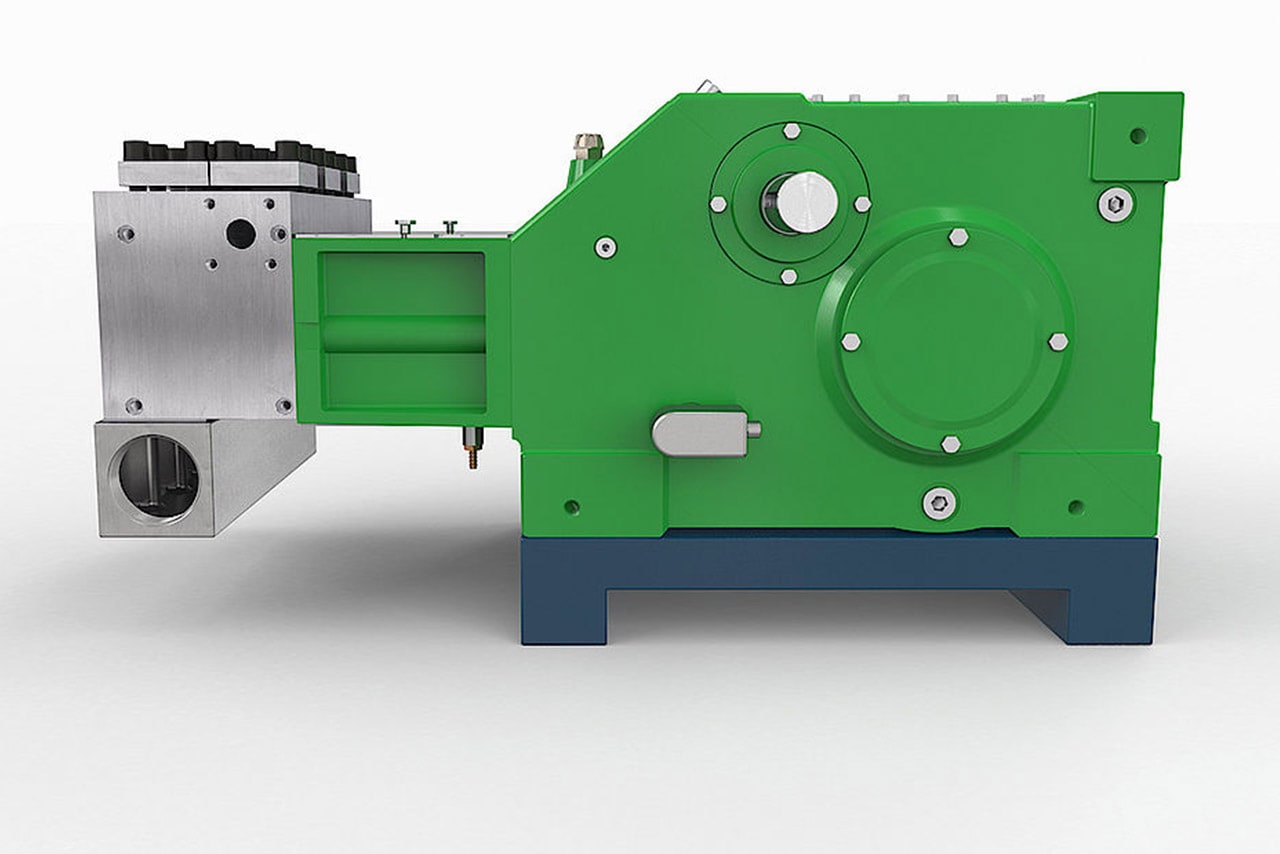

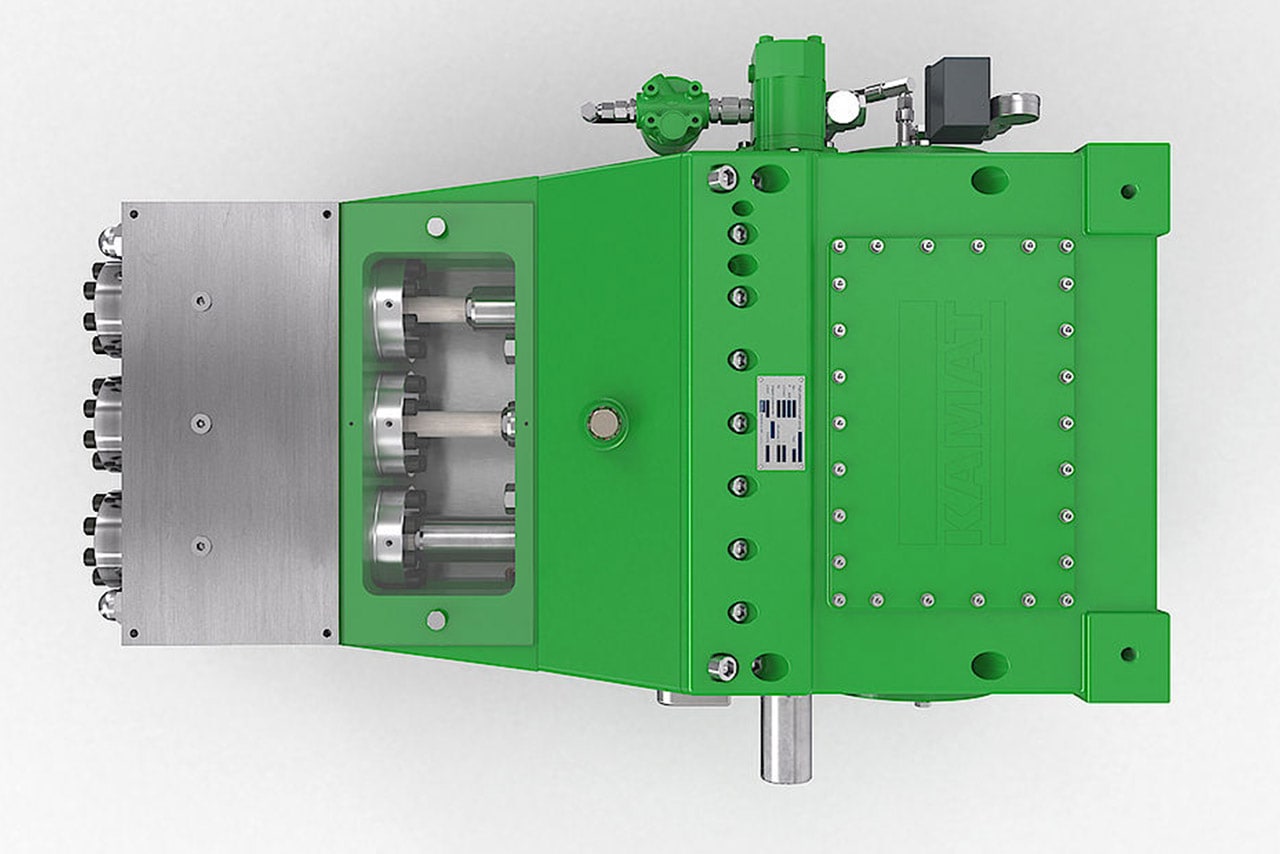

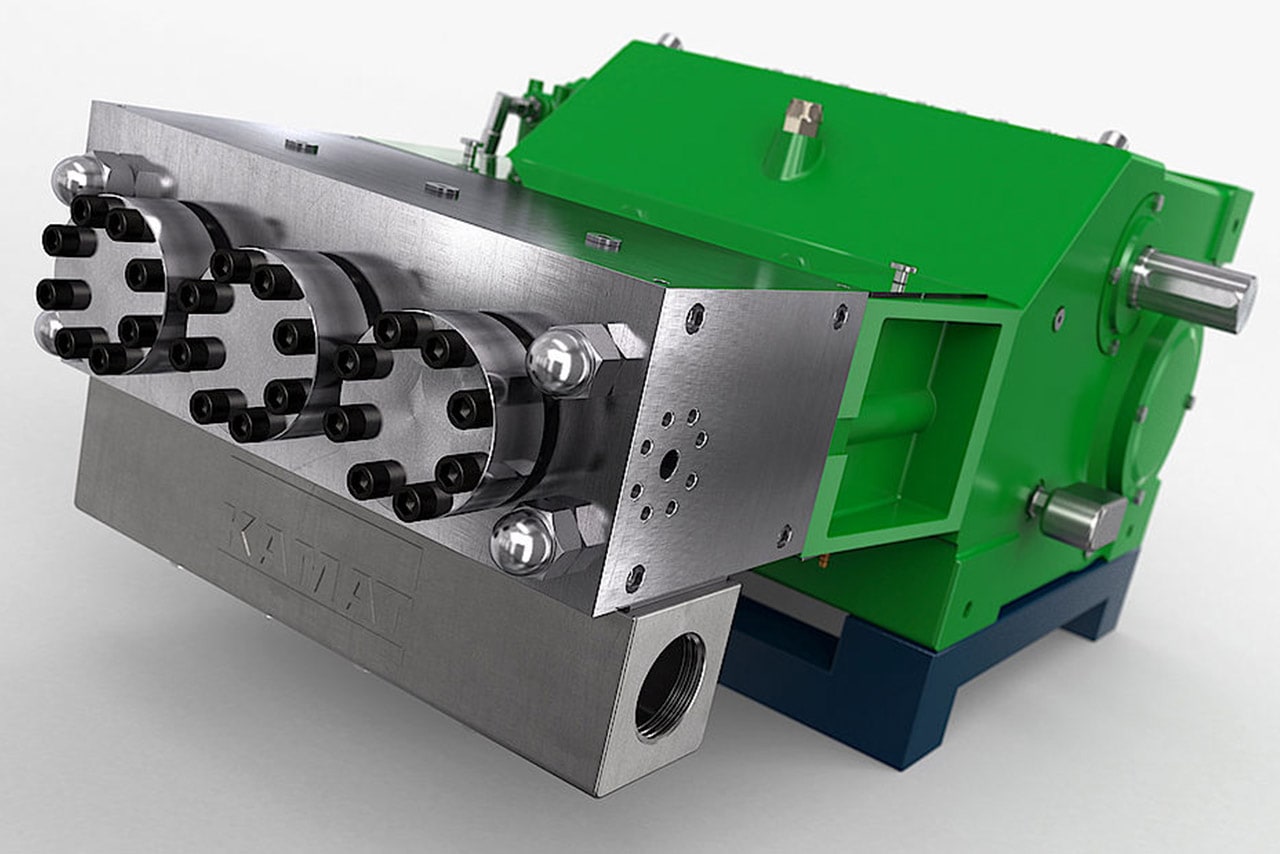

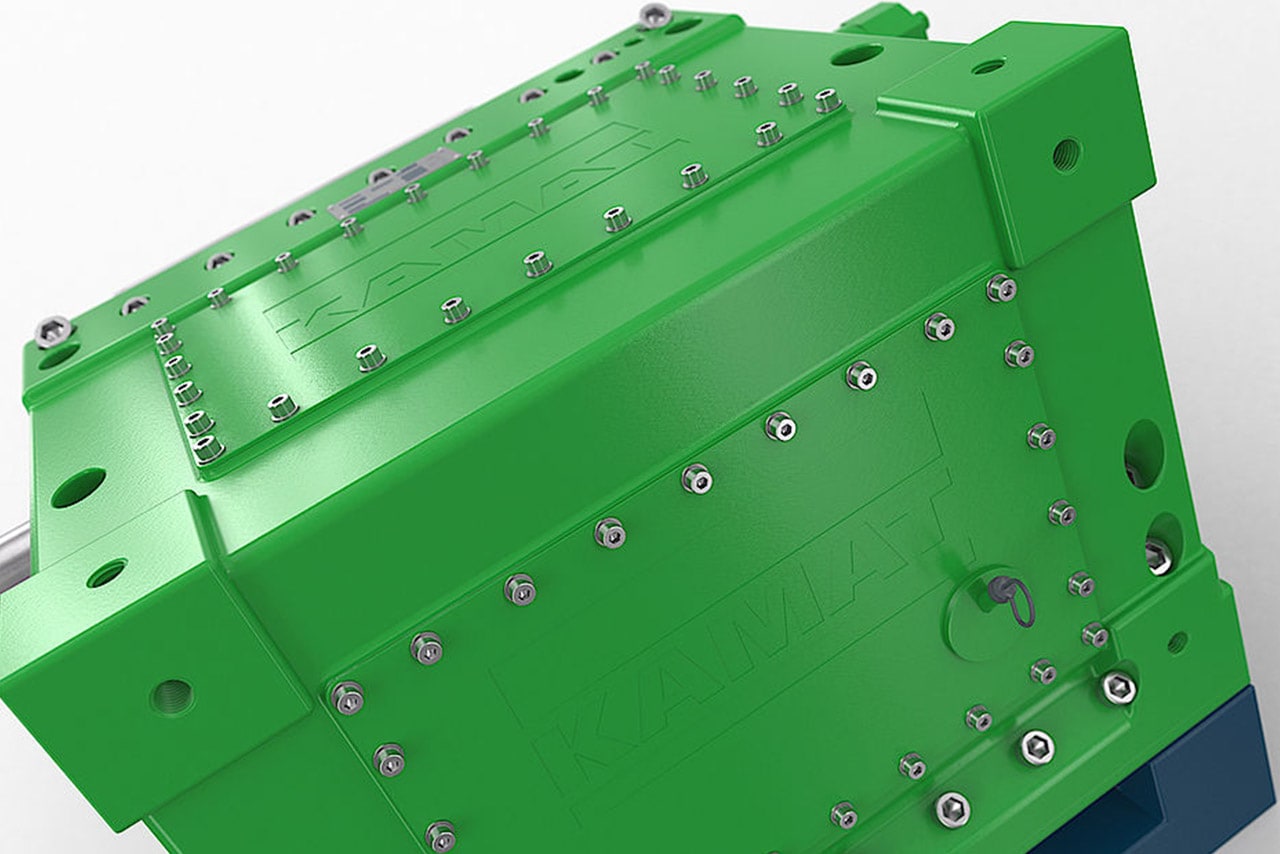

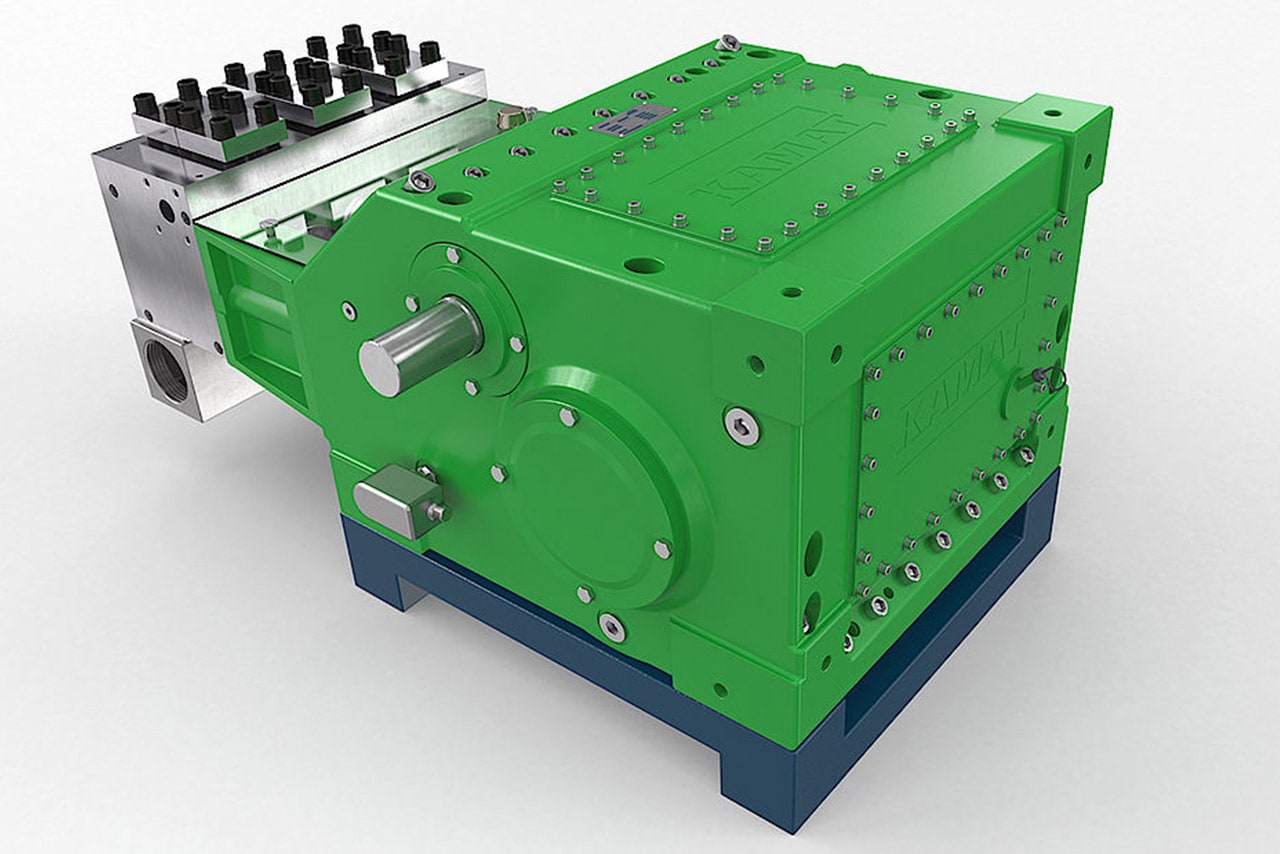

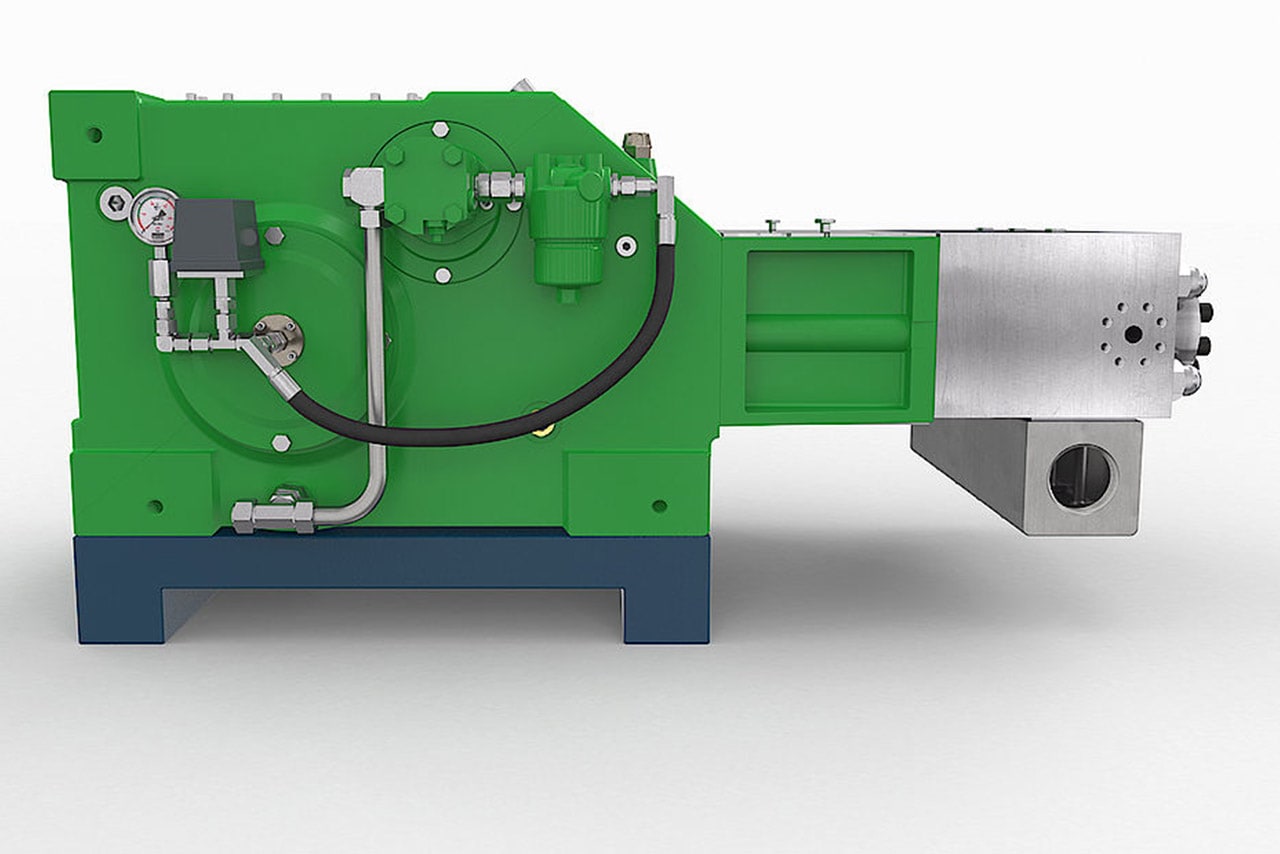

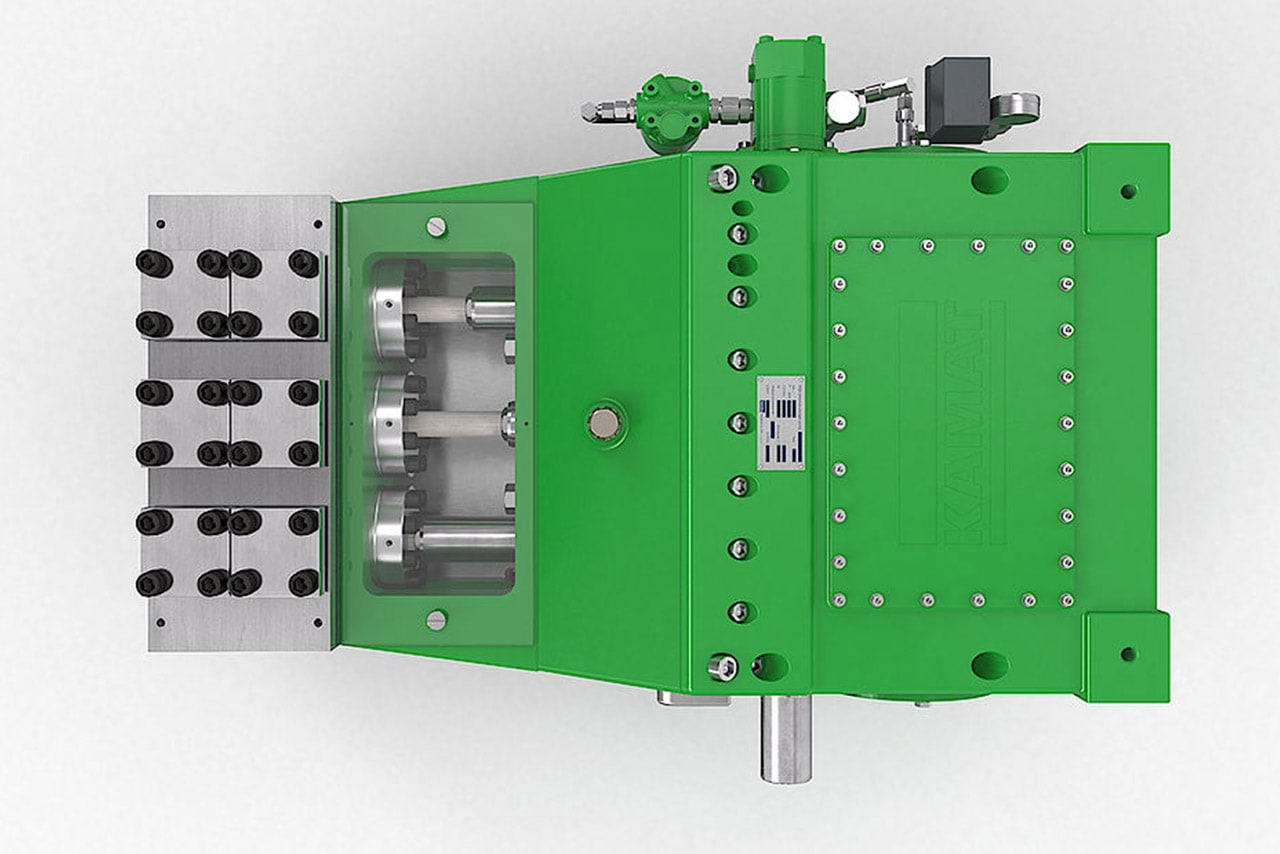

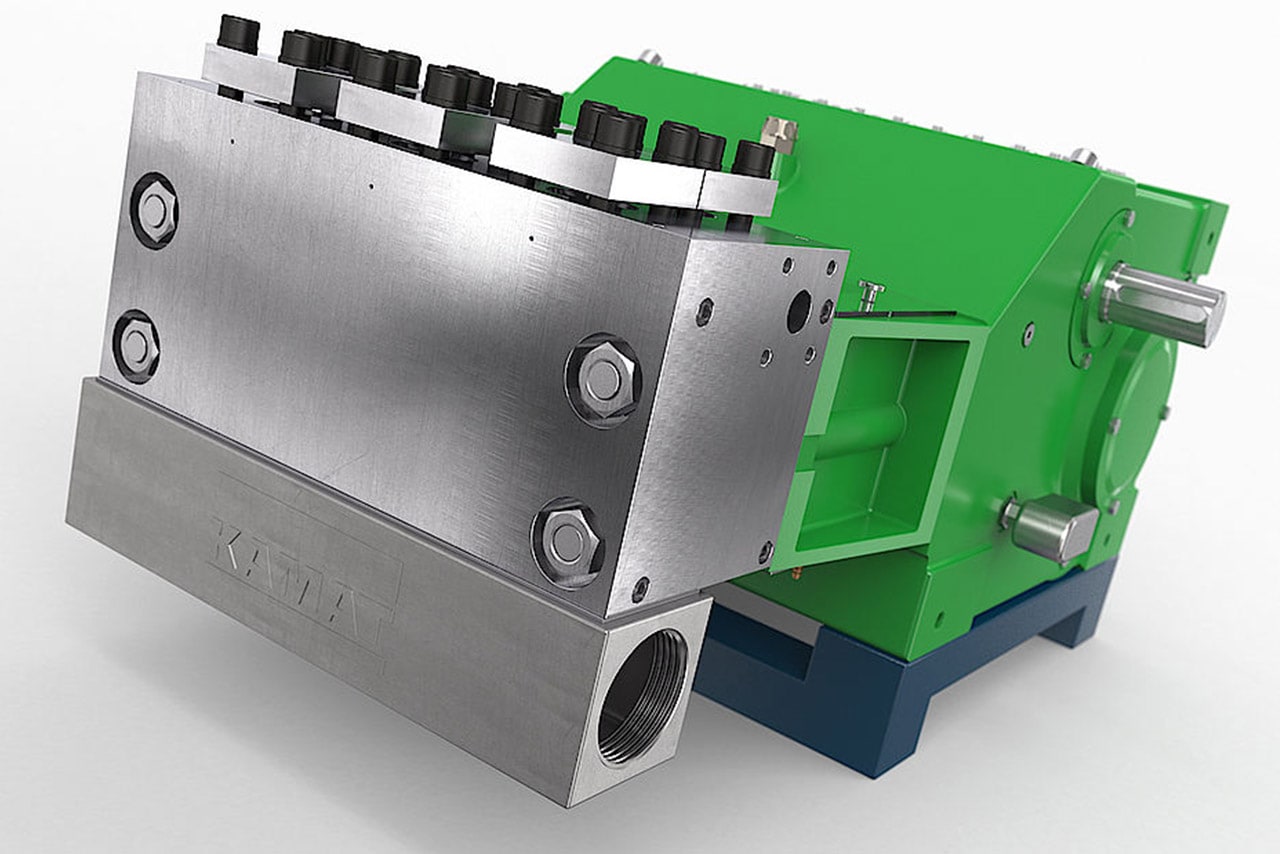

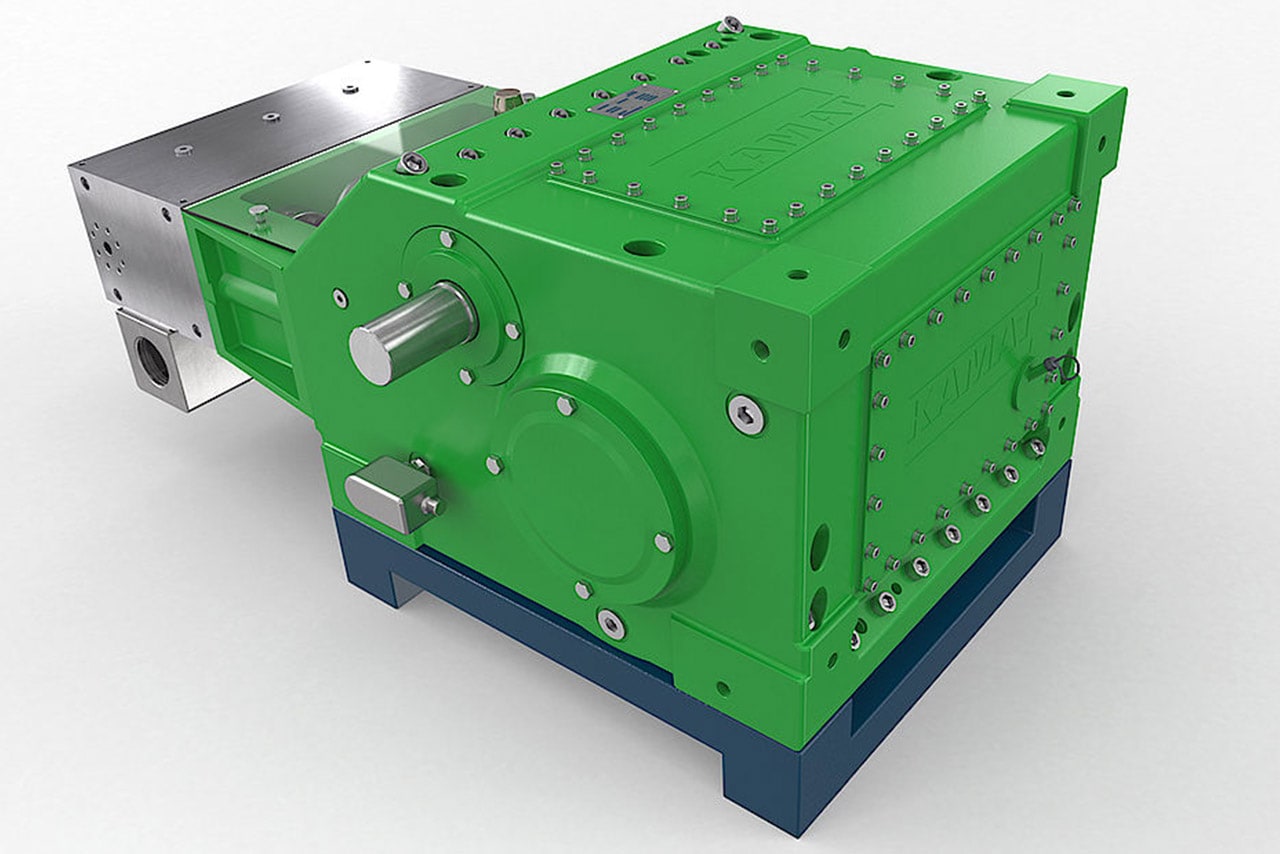

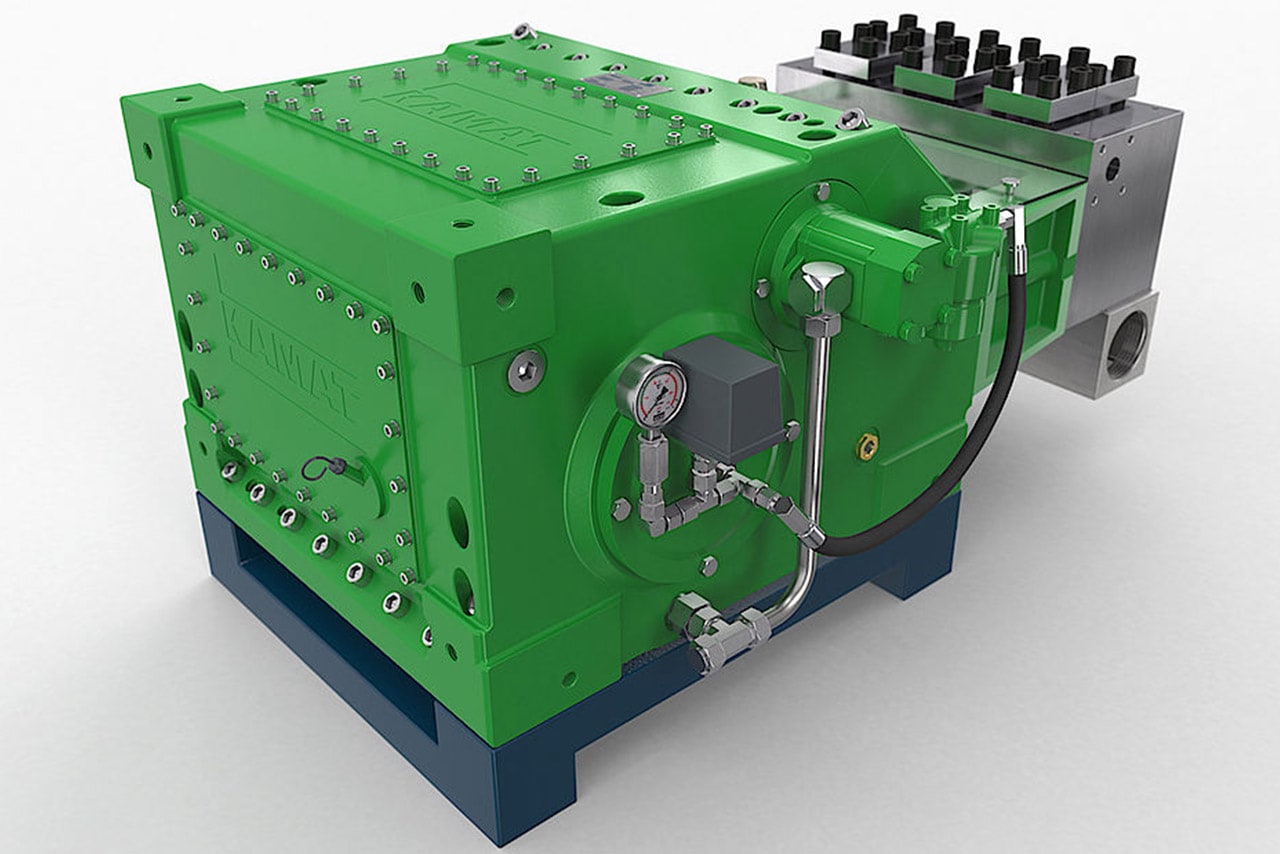

Triplex Plunger Pump K 40000-3G

The K 40000 high-pressure pump is very similar to the K 35000 in respect of the basic areas of application: In main focus are hydraulic hydraulic applications and jetting. In case of jetting, the 400 kW high-pressure pump is frequently installed in large mobile systems. The K 40000 is particularly the choice when, in comparison with the K 35000, the same specific output should be realized at higher pressure. In mining these are, for example, flow rates of between 400 and 600 l/min. With industrial service providers, usually around 200 l/min at approx. 1000 bar. Mostly the pump is used in 24/7 operation. According to layout of the pump heads, the high-pressure pump is suited for pumped media with a viscosity of up to 2,000 mPas (millipascal second) and a fluid temperature of up to 200°C.


  • Gear with forced lubrication
  • With oil cooler
  • Integrated gear reduction-ratio
  • Also available in accordance with API 674 and/or ATEX
  • Special media, such as sea water, glycol, methanol, oils etc., on request
  • Filtration up to 350 µm

Technical Specification

  • Flow58 - 1310 l/min
  • Pressure125 - 3500 bar
  • Power Input315 - 400 kw
  • Weight1360 kg
