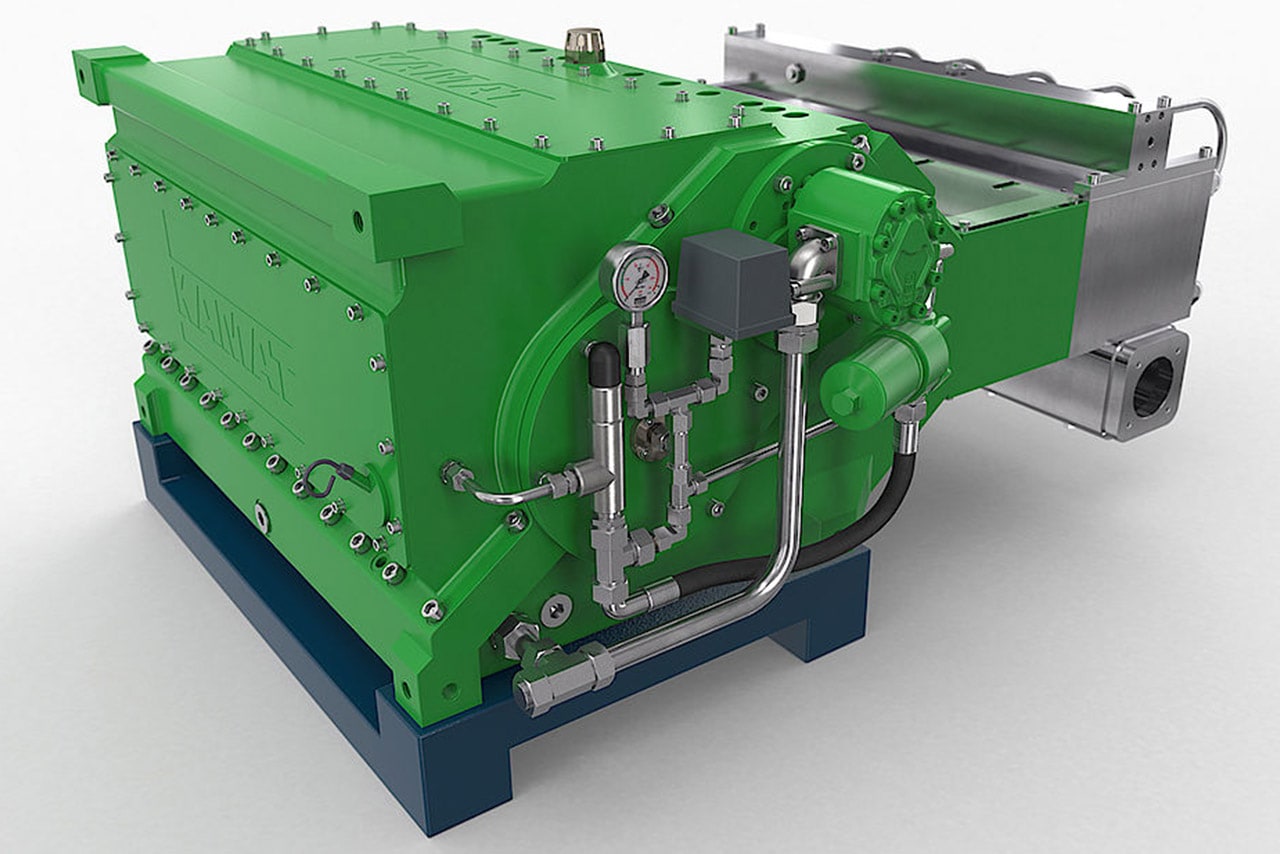

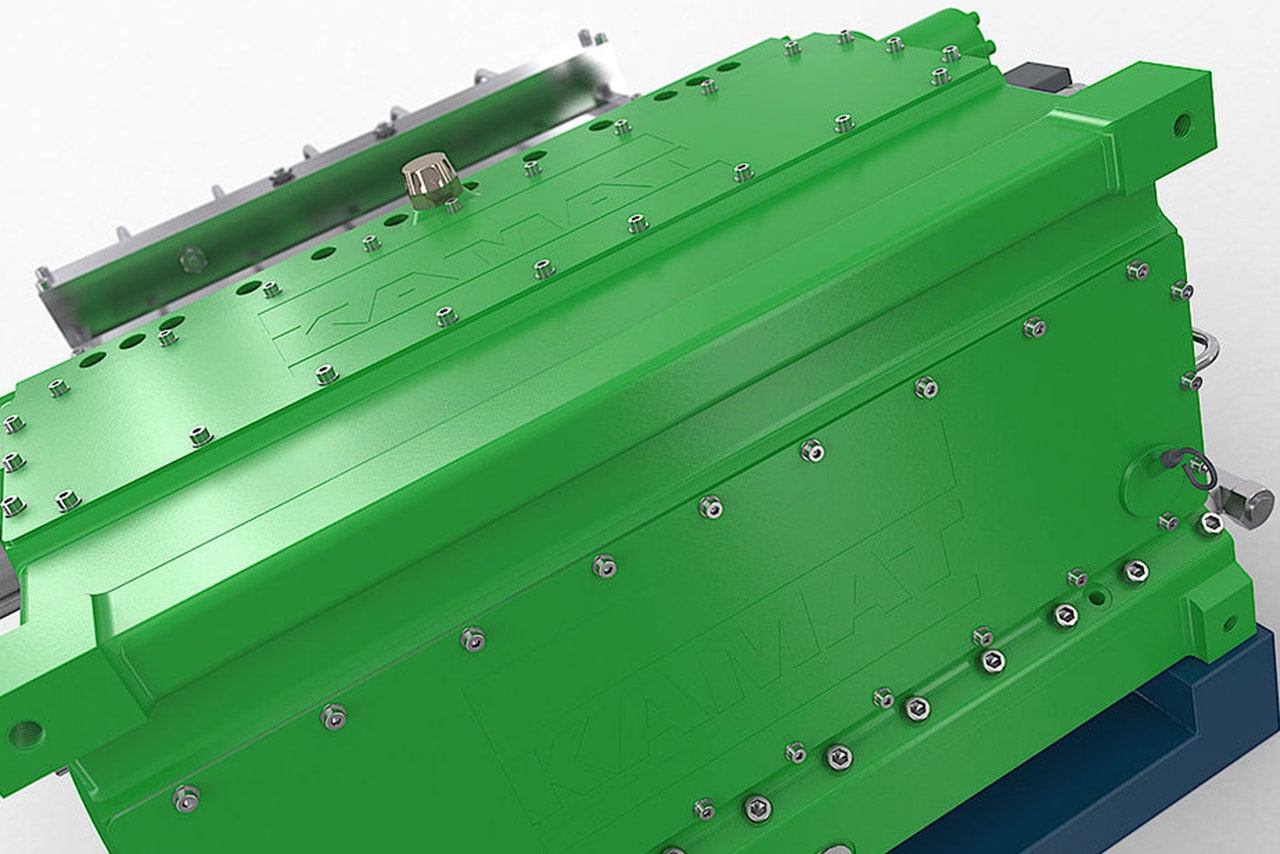

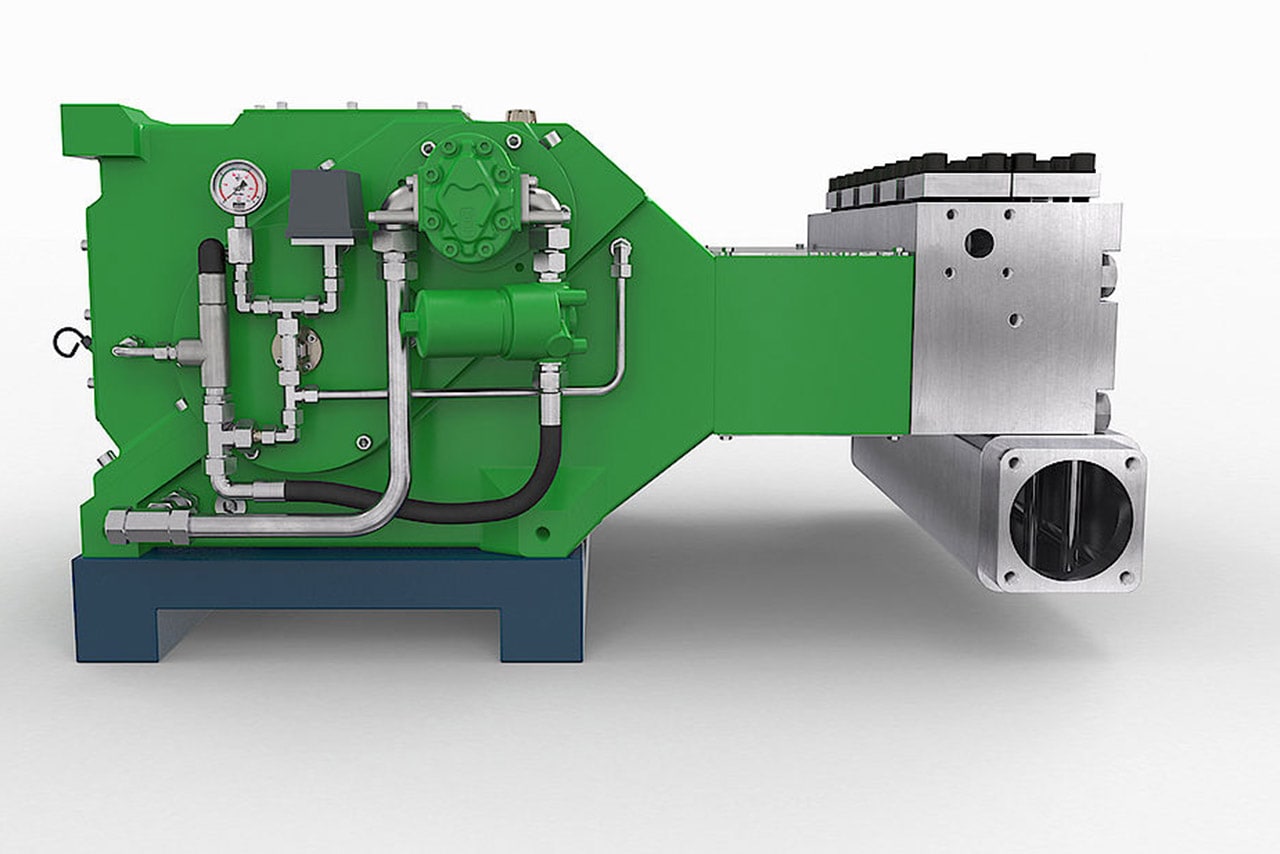

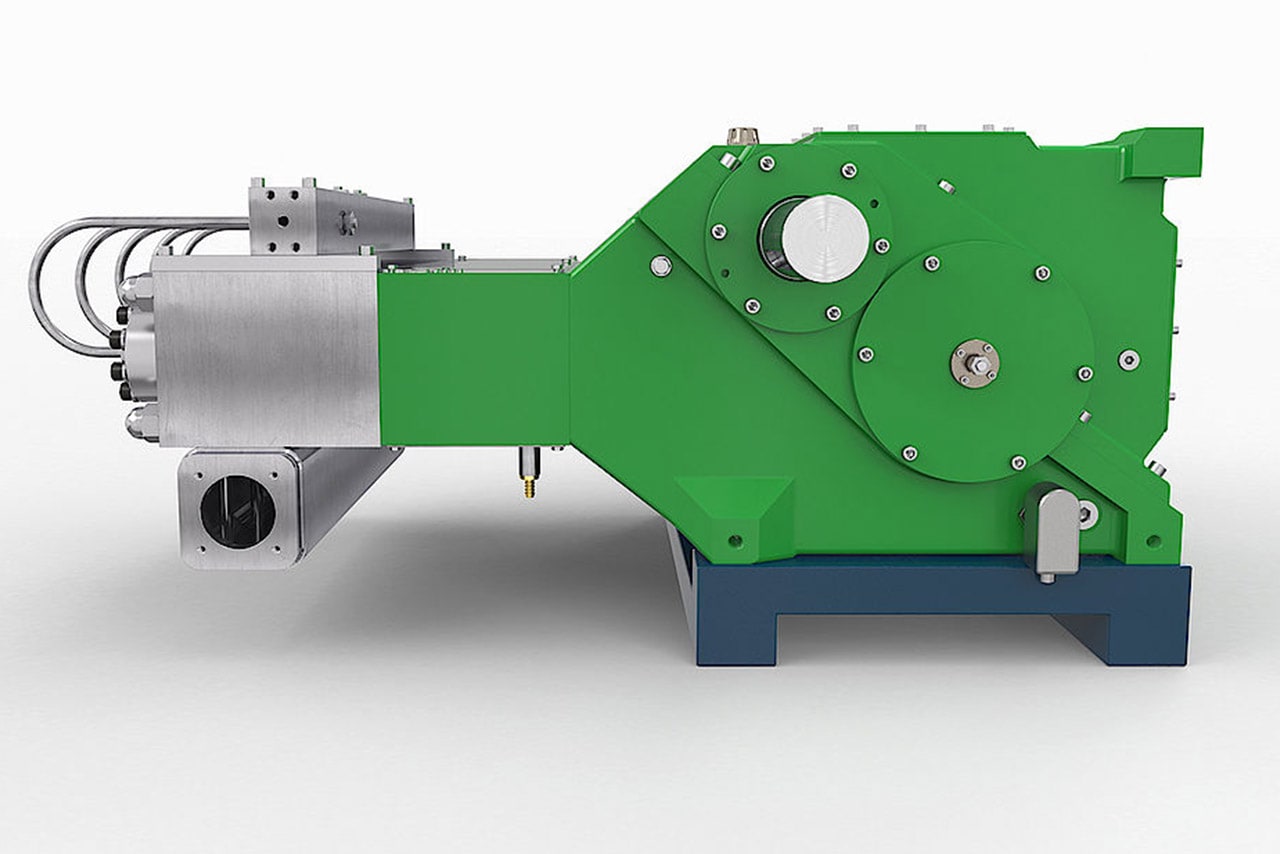

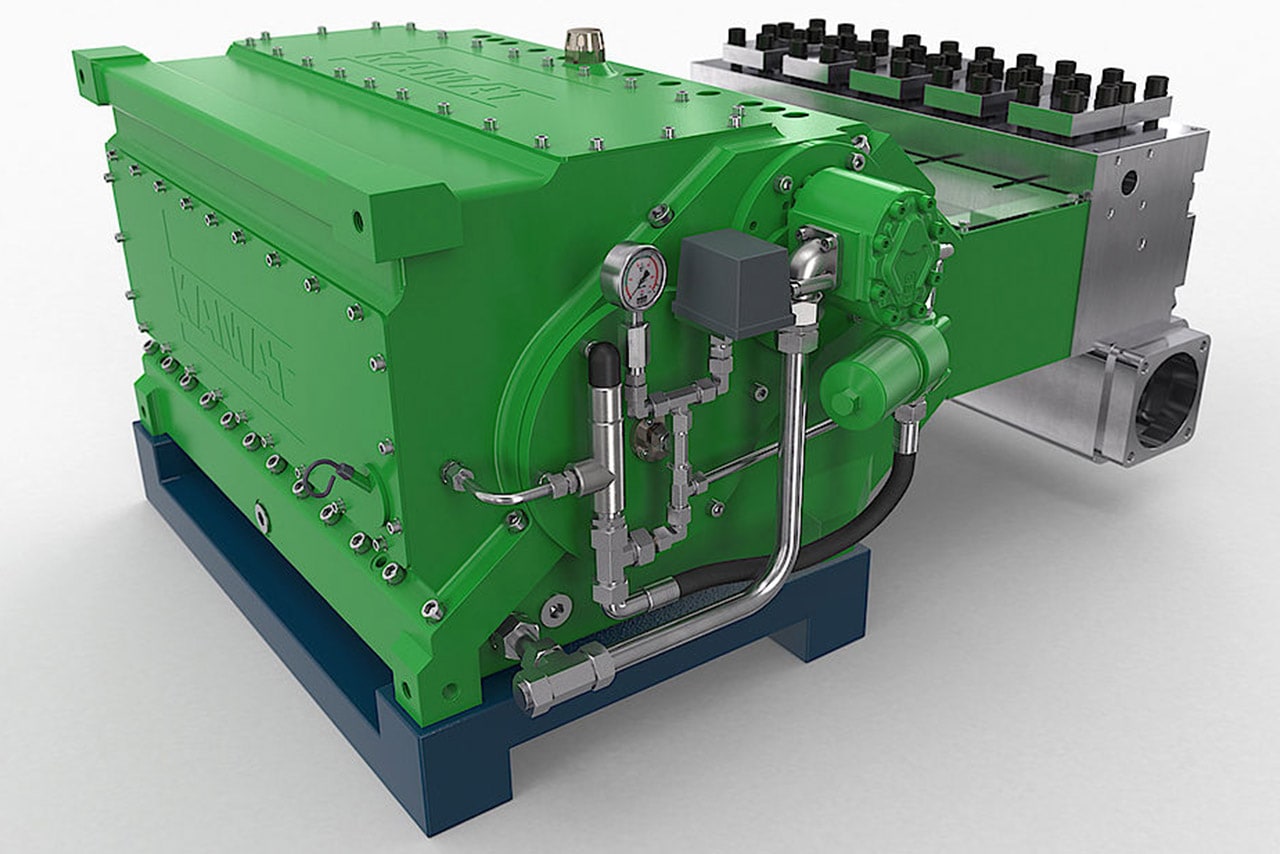

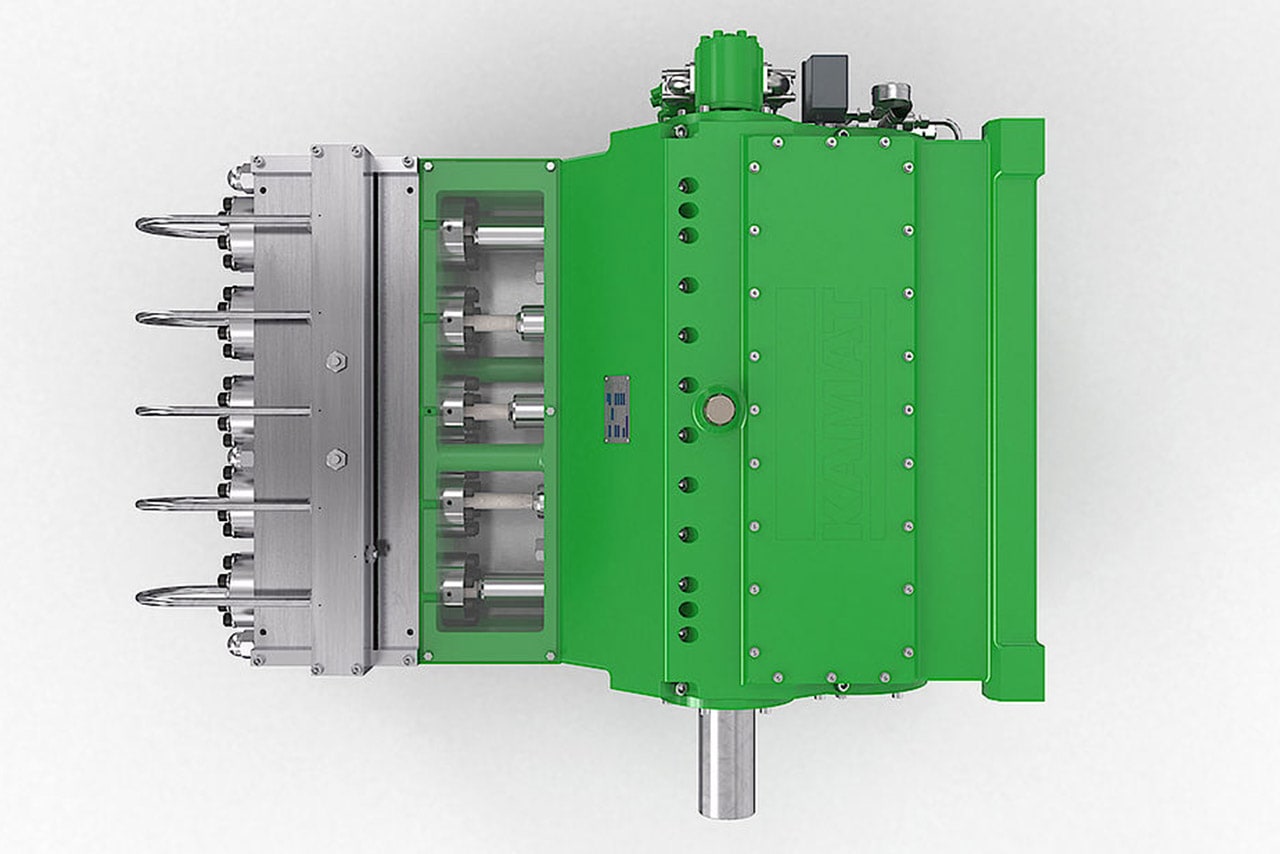

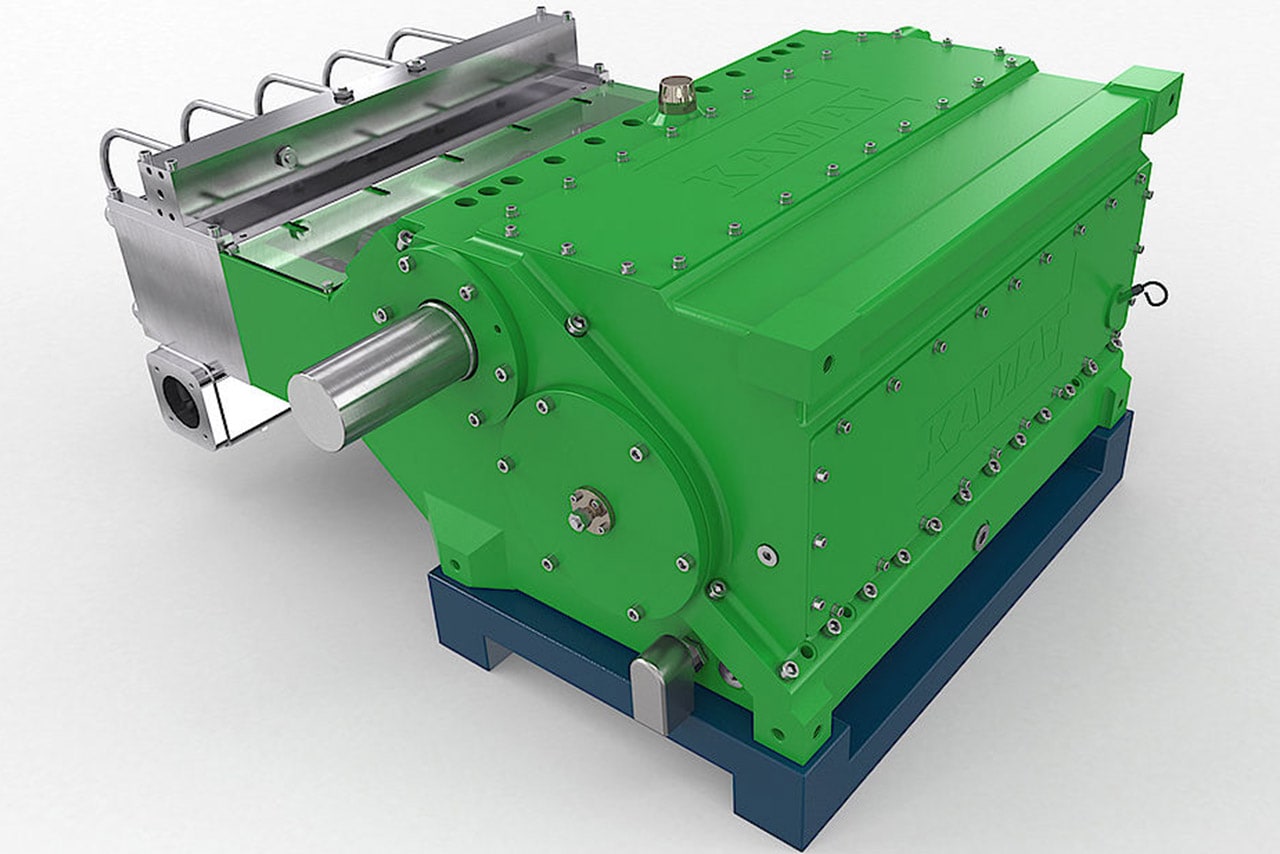

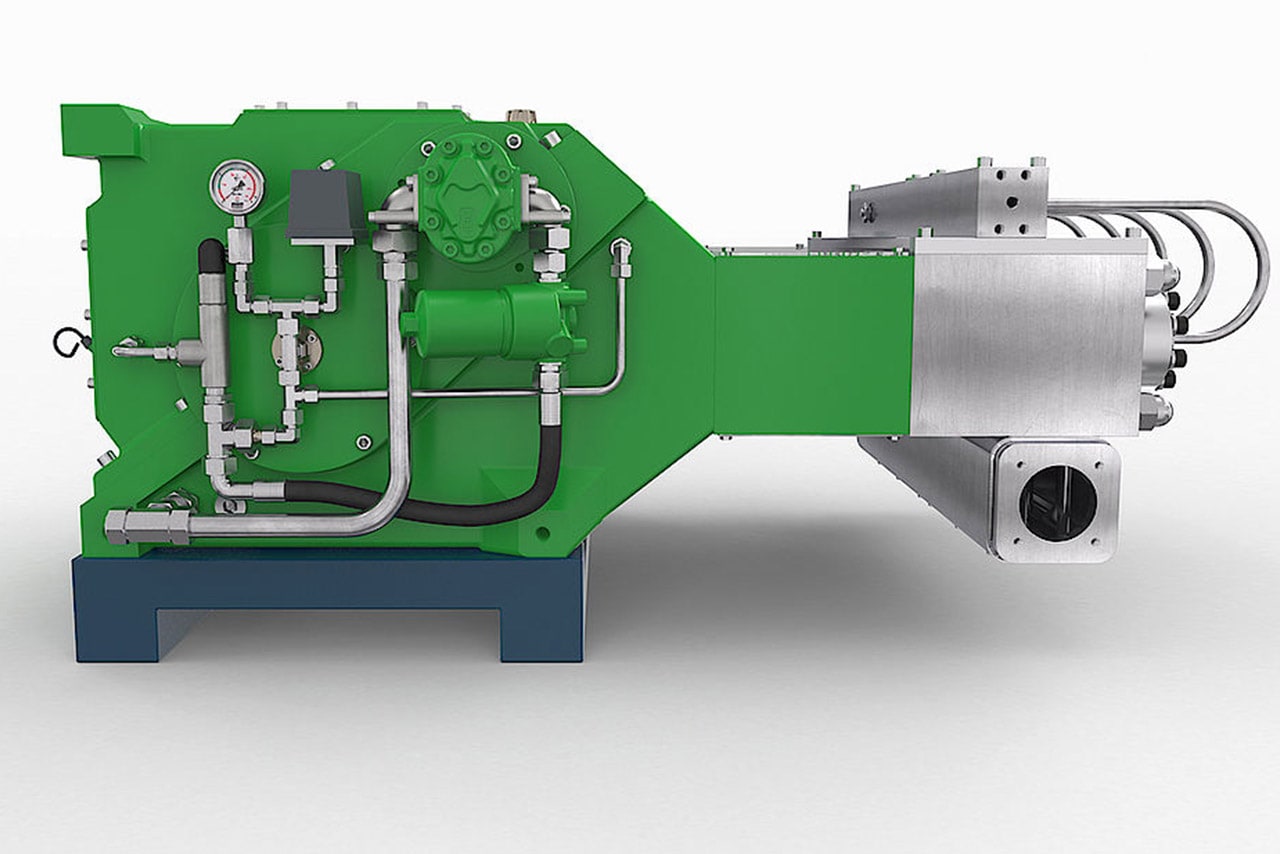

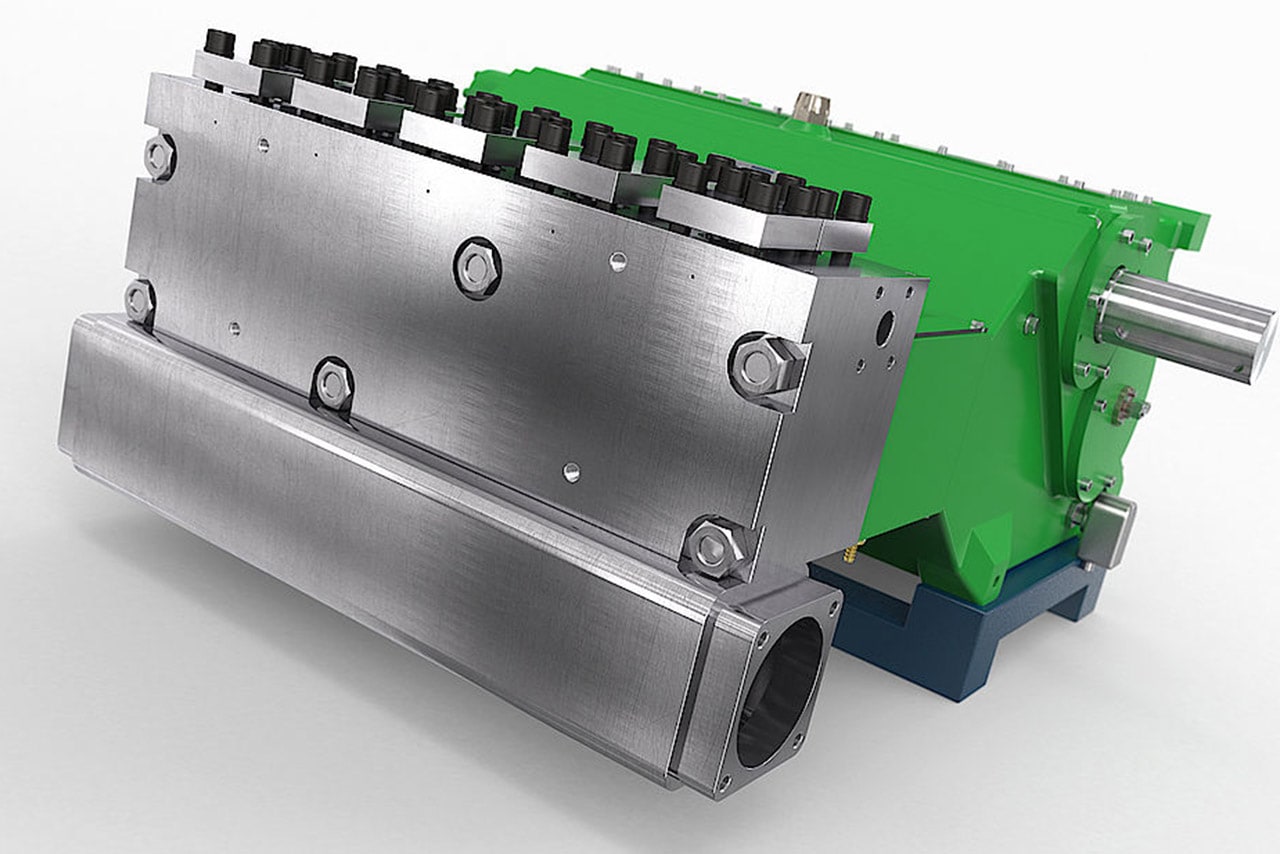

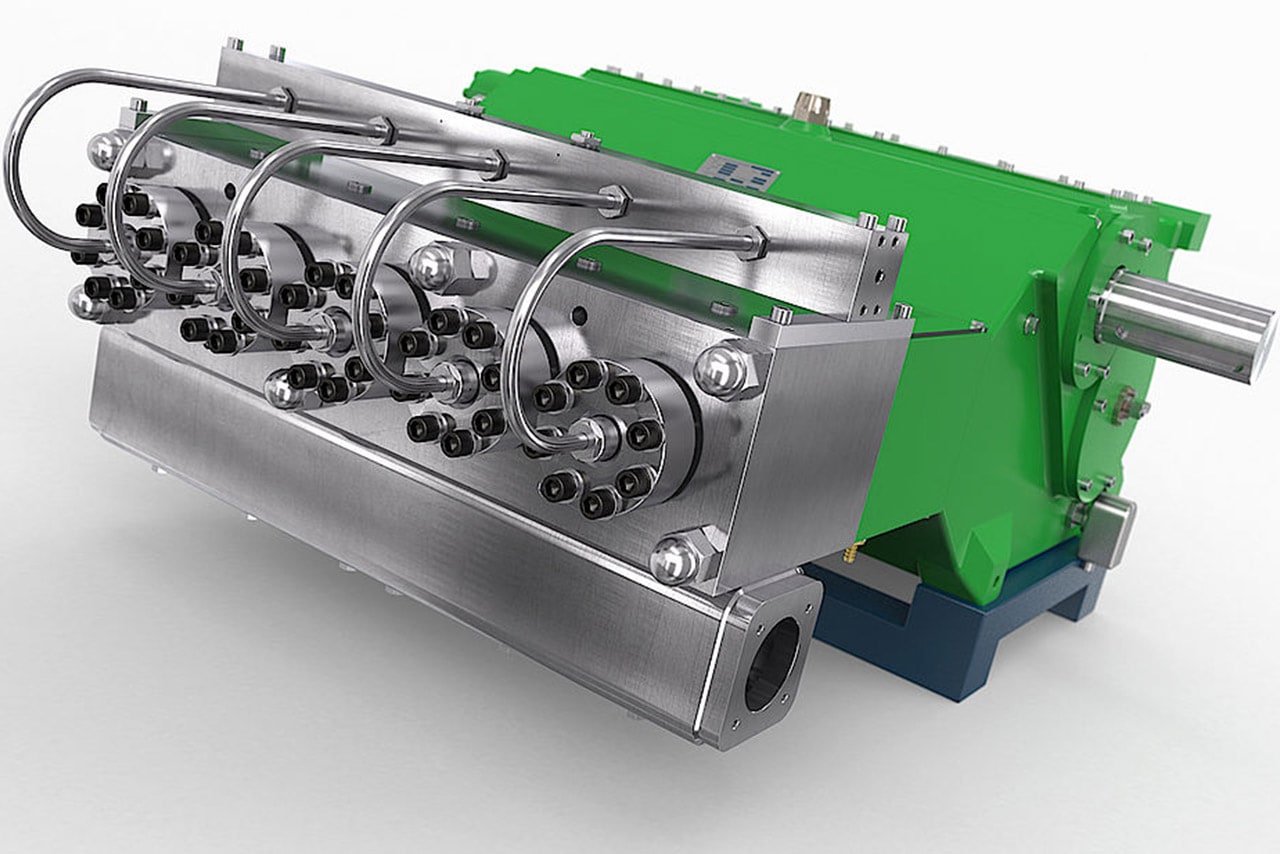

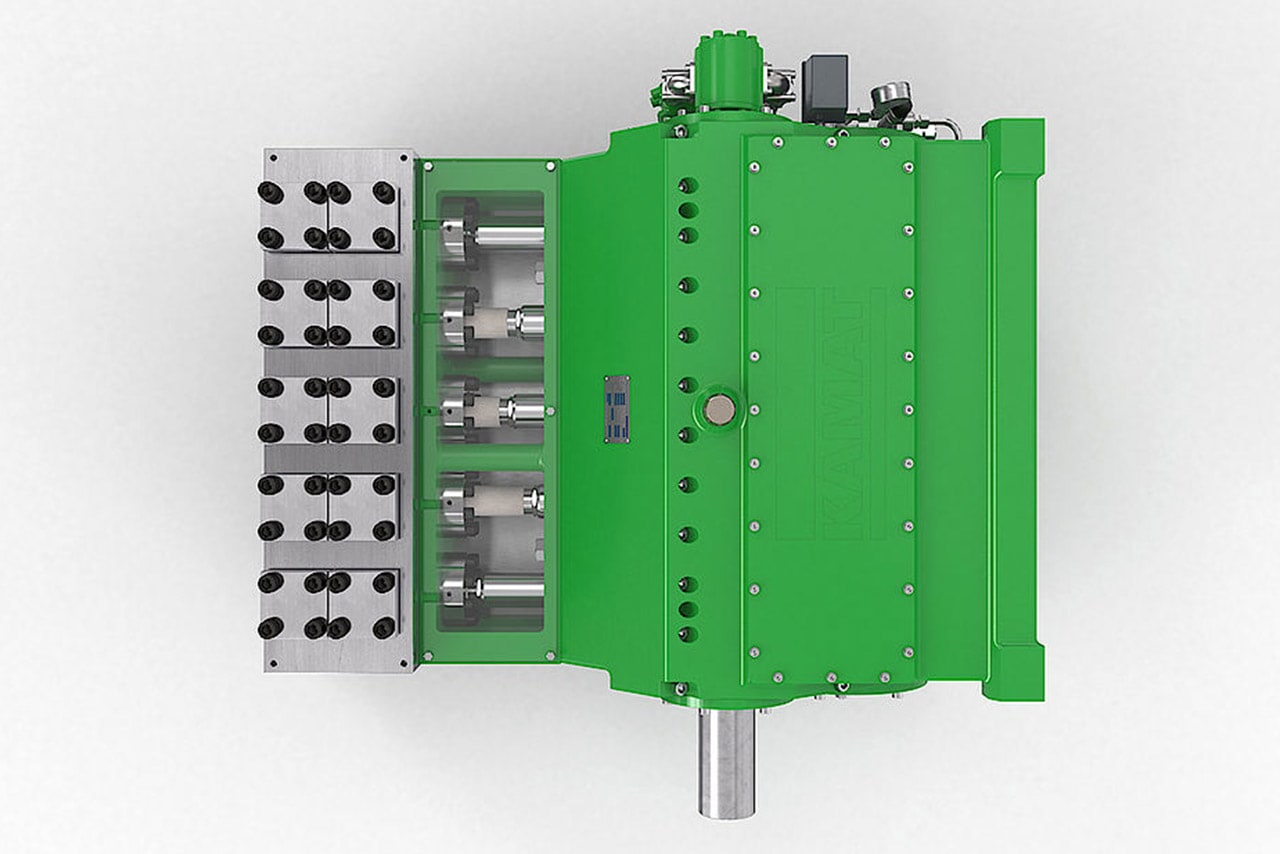

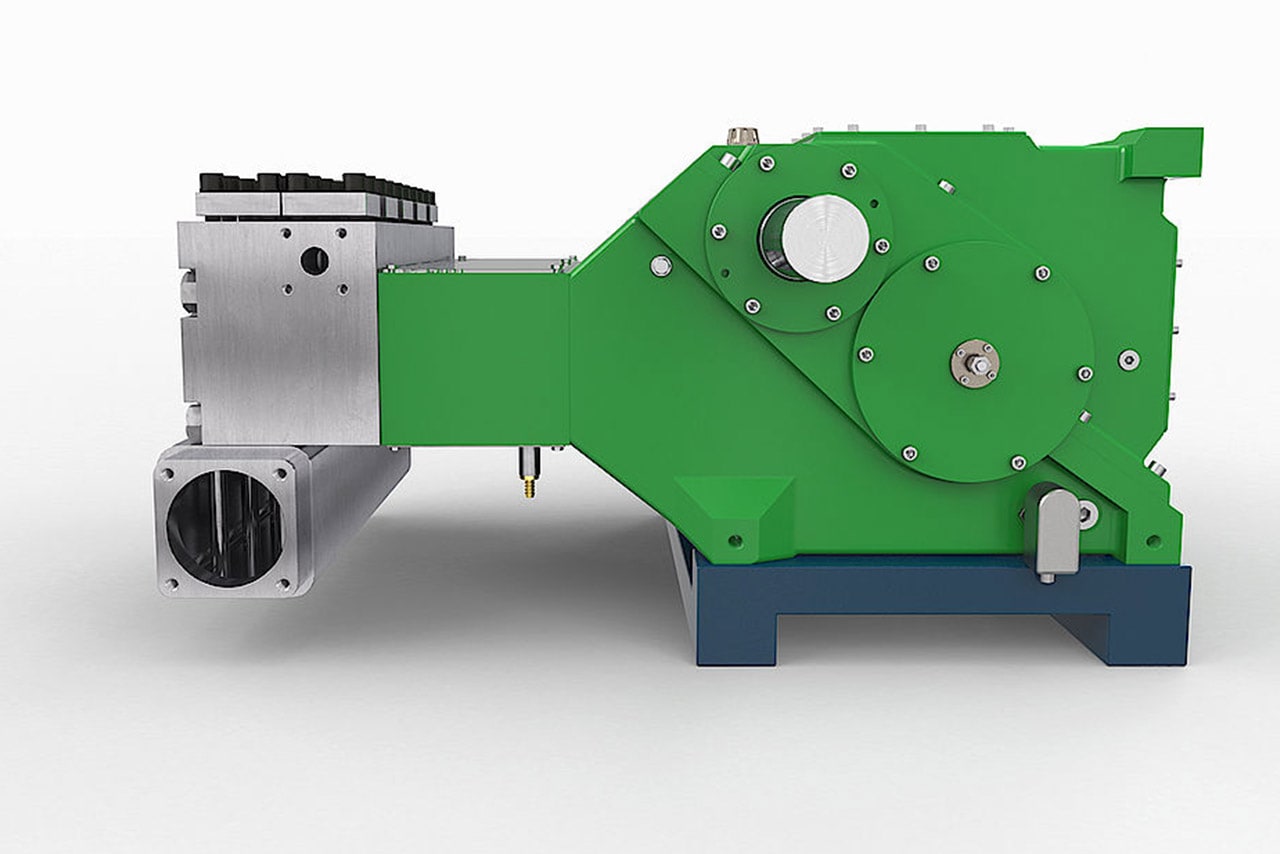

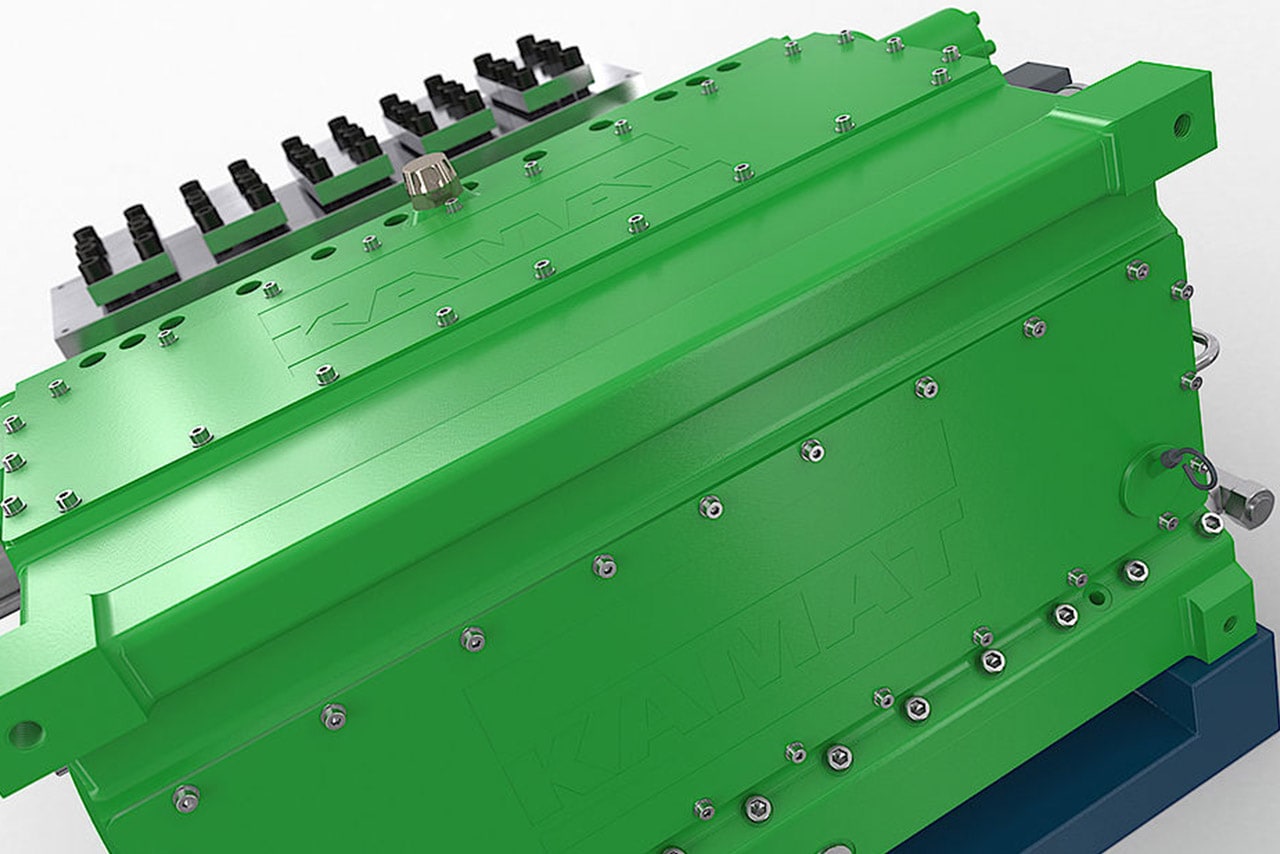

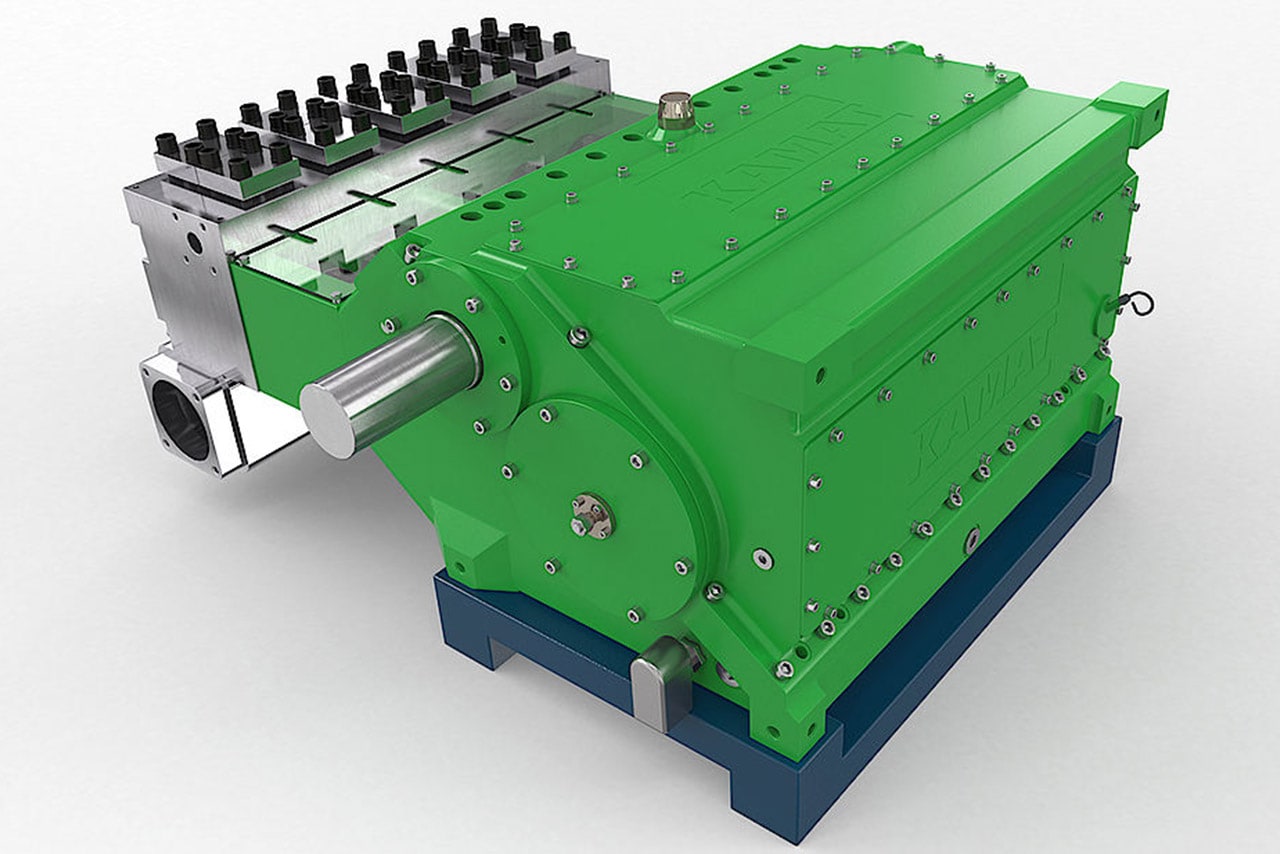

Quintuplex Plunger Pump K 50000-5G

With five cylinders the K 50000 is one of our key, powerful, high-pressure pumps. Its special feature consist in its having five cylinders which are calculated exactly and coordinated with each other: Thus the K 50000 achieves a high performance capability without any cavitation arising. It is even able to pump up to 640 l/min without inlet boost pressure. This high-pressure pump, with 500 kW drive power, is particularly suitable for large jetting, or hydraulic applications. It is used as a high-end pump in mining, as a work-horse in water hydraulics and in steelworks, as well as in large mobile jetting systems for concrete upgrading.


  • Quintuplex pumps, in order to avoid cavitation
  • Gear with forced lubrication and oil cooling
  • Integrated gear reduction-ratio
  • Also available in accordance with API 674 and/or ATEX
  • Special media, such as sea water, glycol, methanol, oils etc., on request
  • Filtration up to 350 ┬Ám

Technical Specification

  • Flow69 - 1913 l/min
  • Pressure85 - 3500 bar
  • Power Input315 - 530 kw
  • Weight2200 kg
