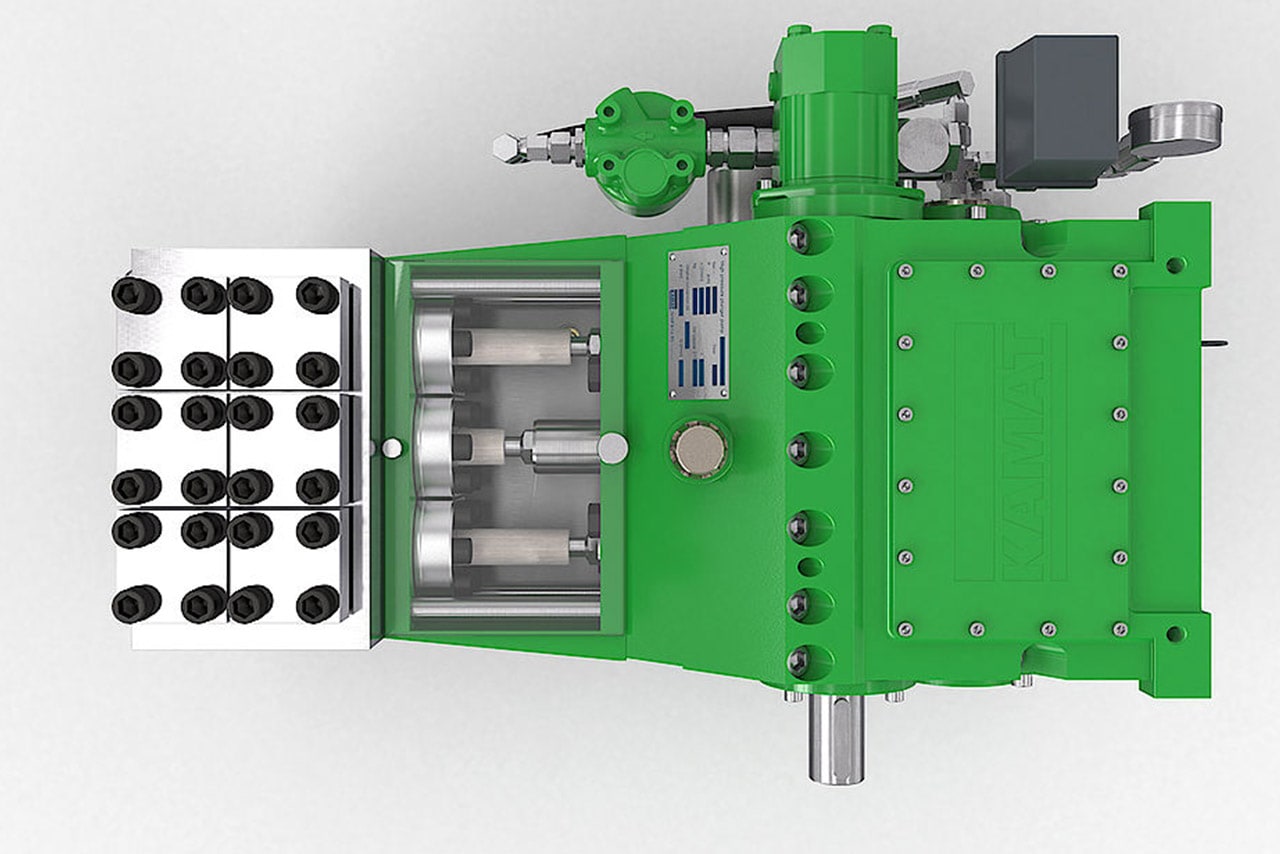

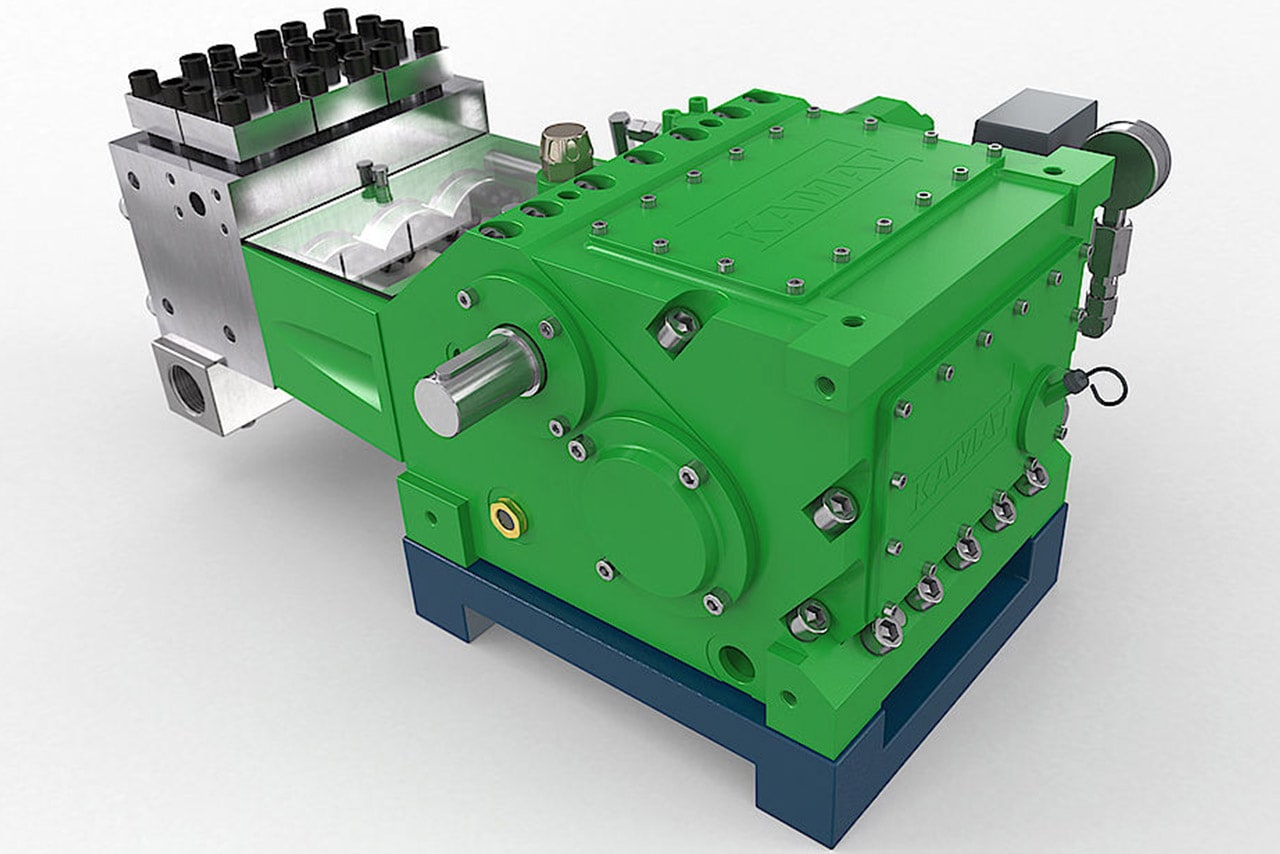

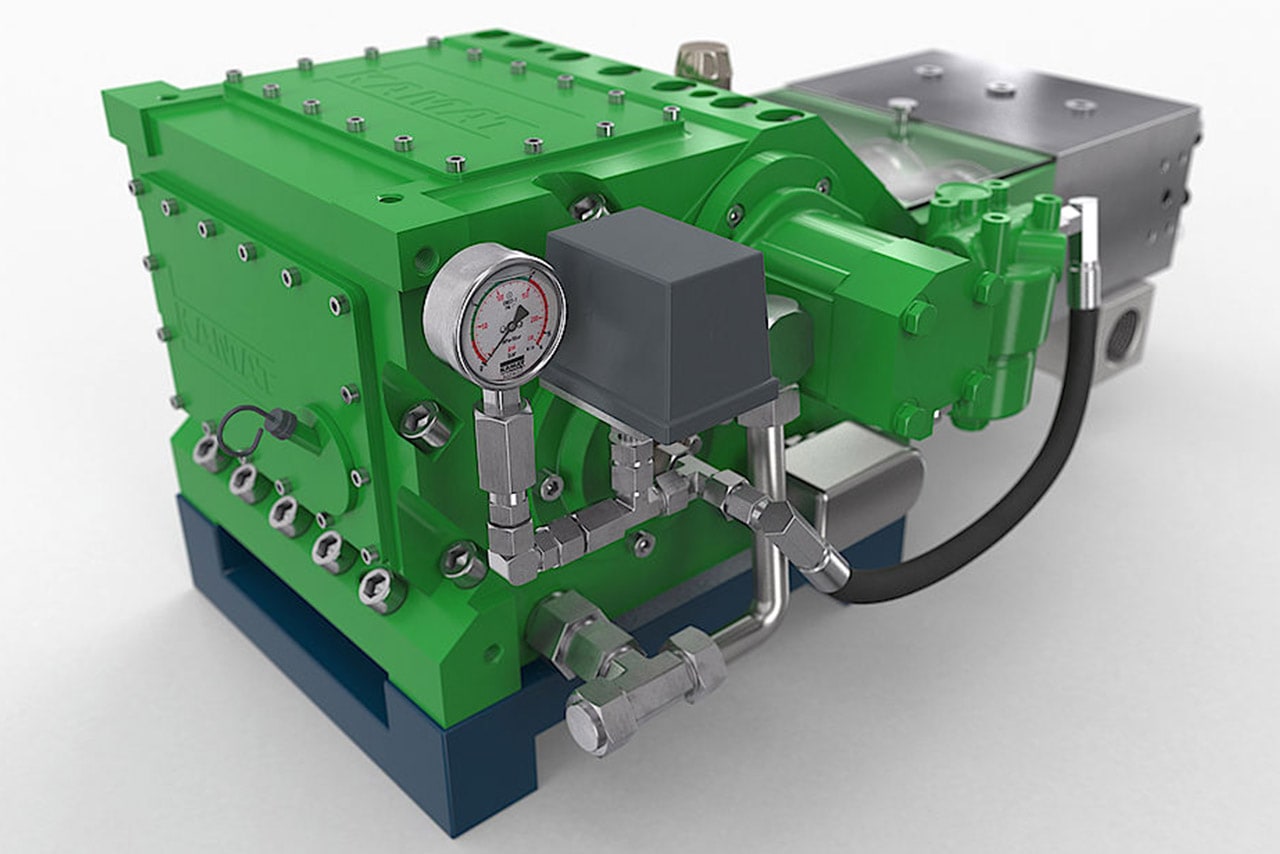

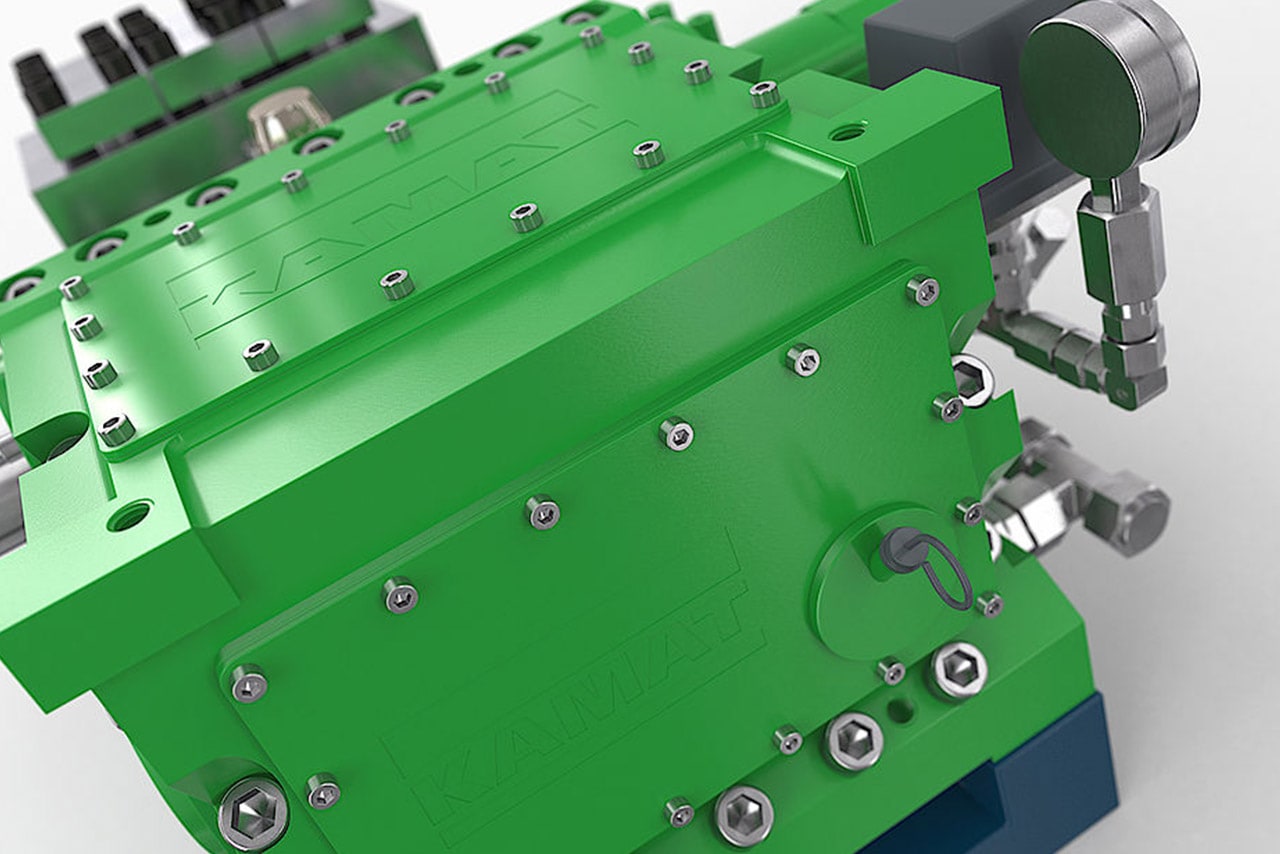

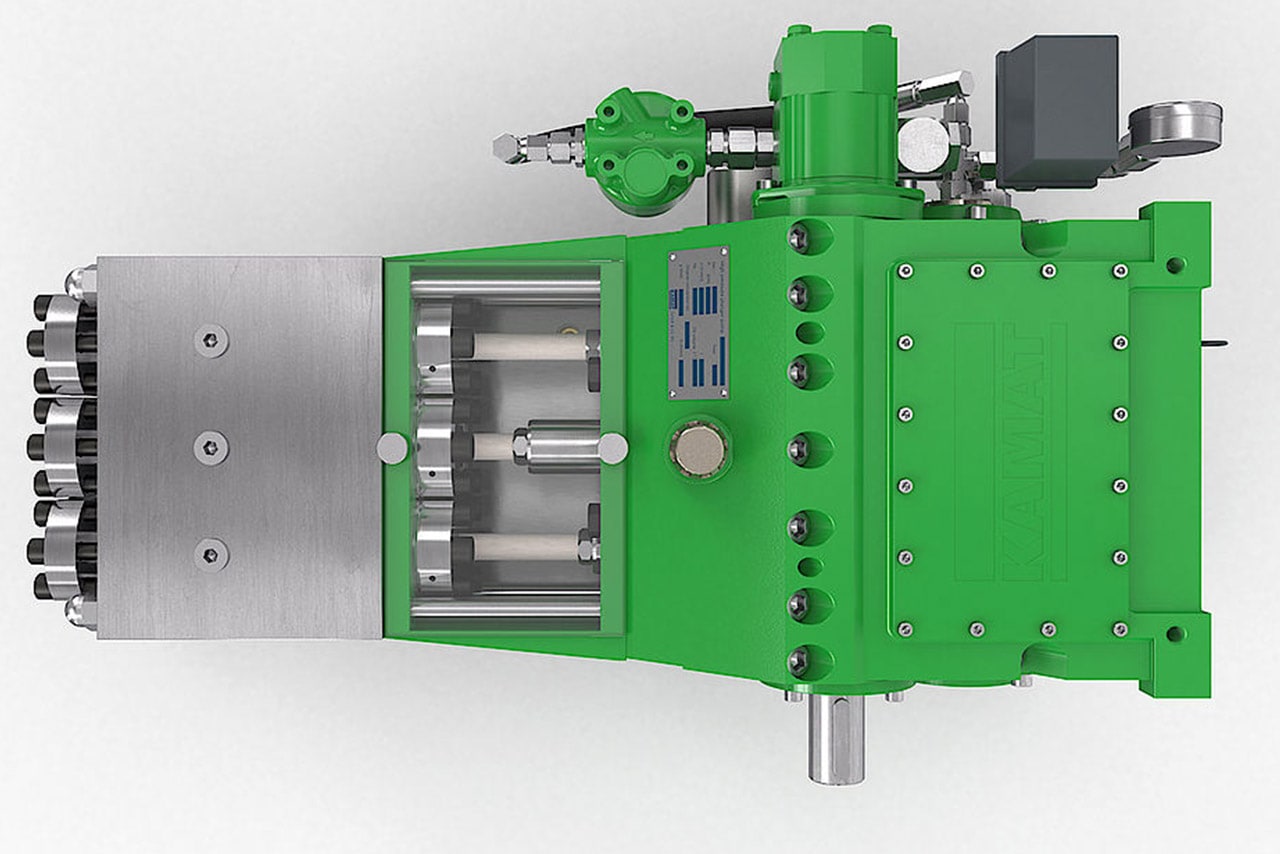

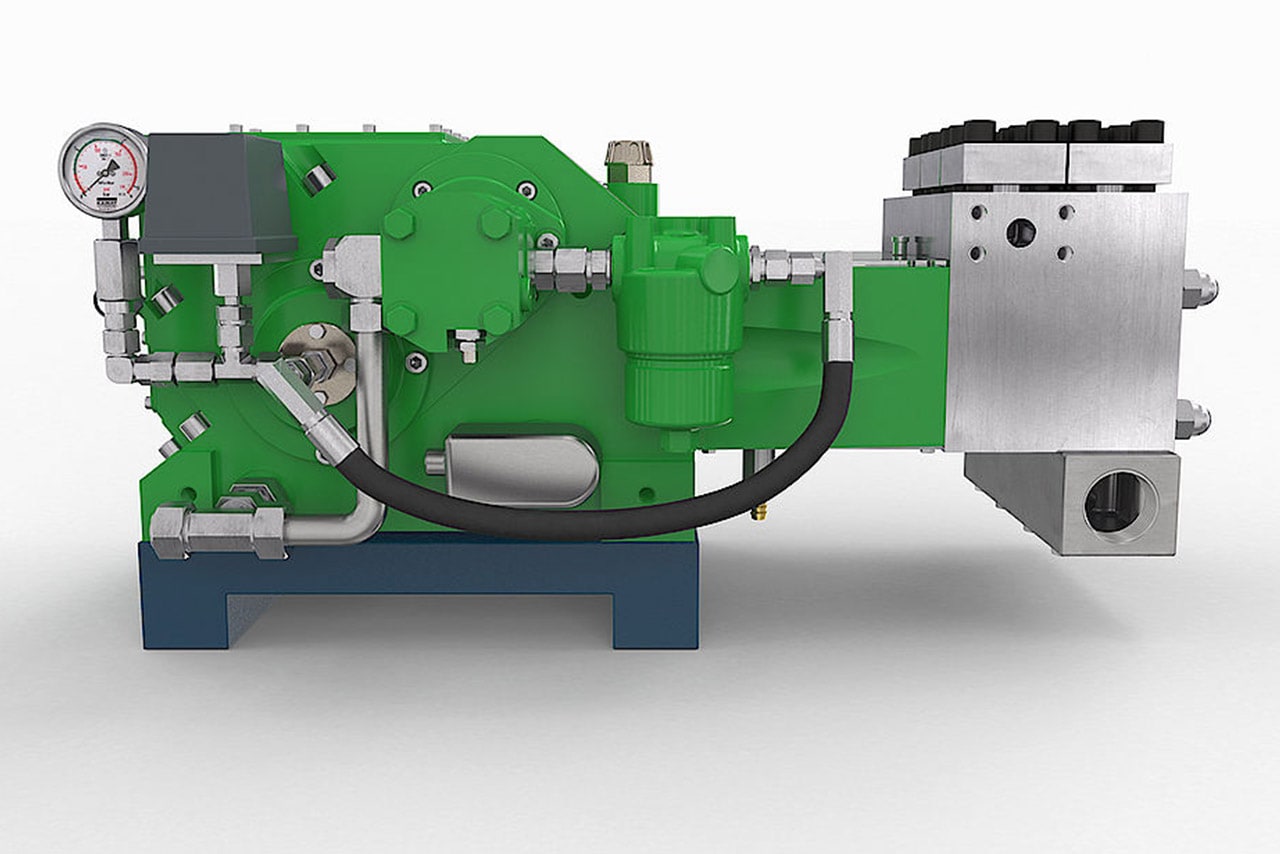

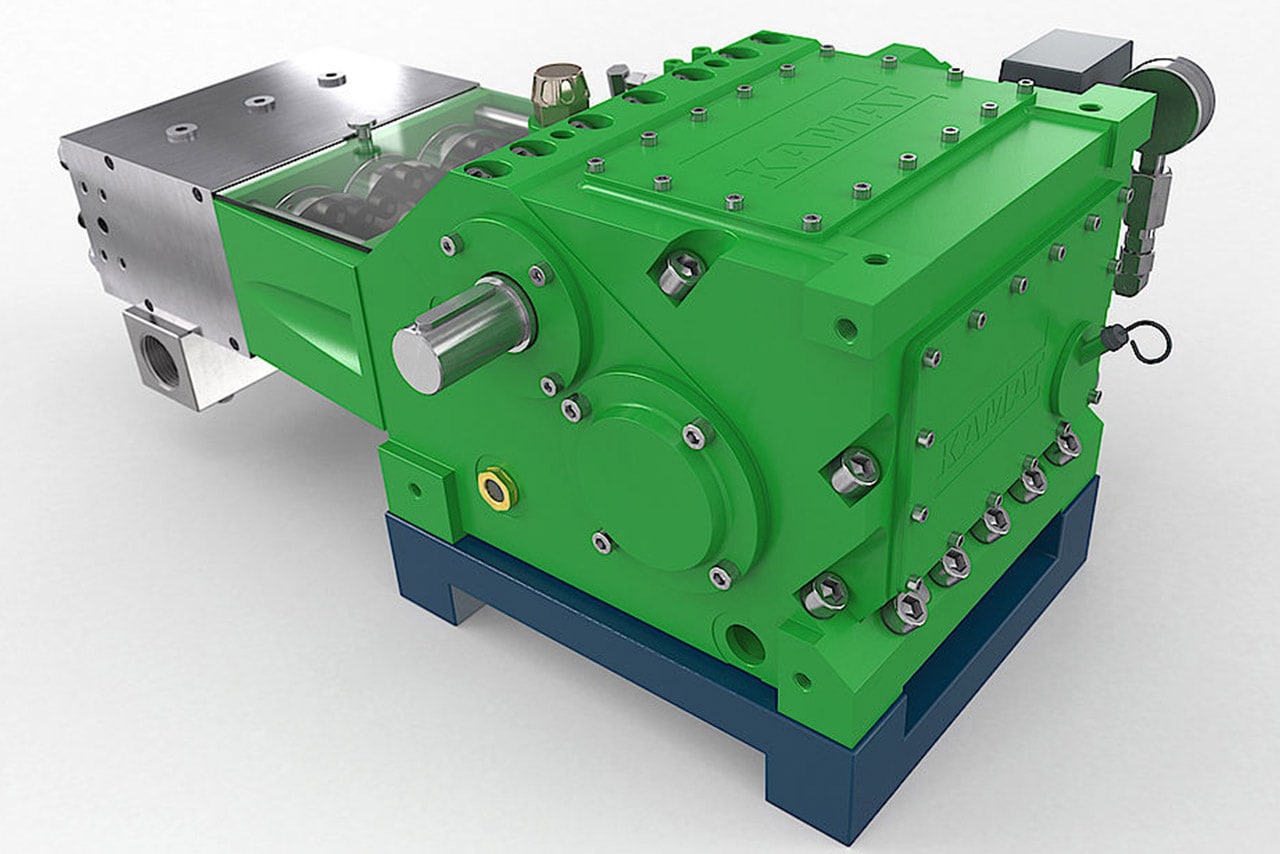

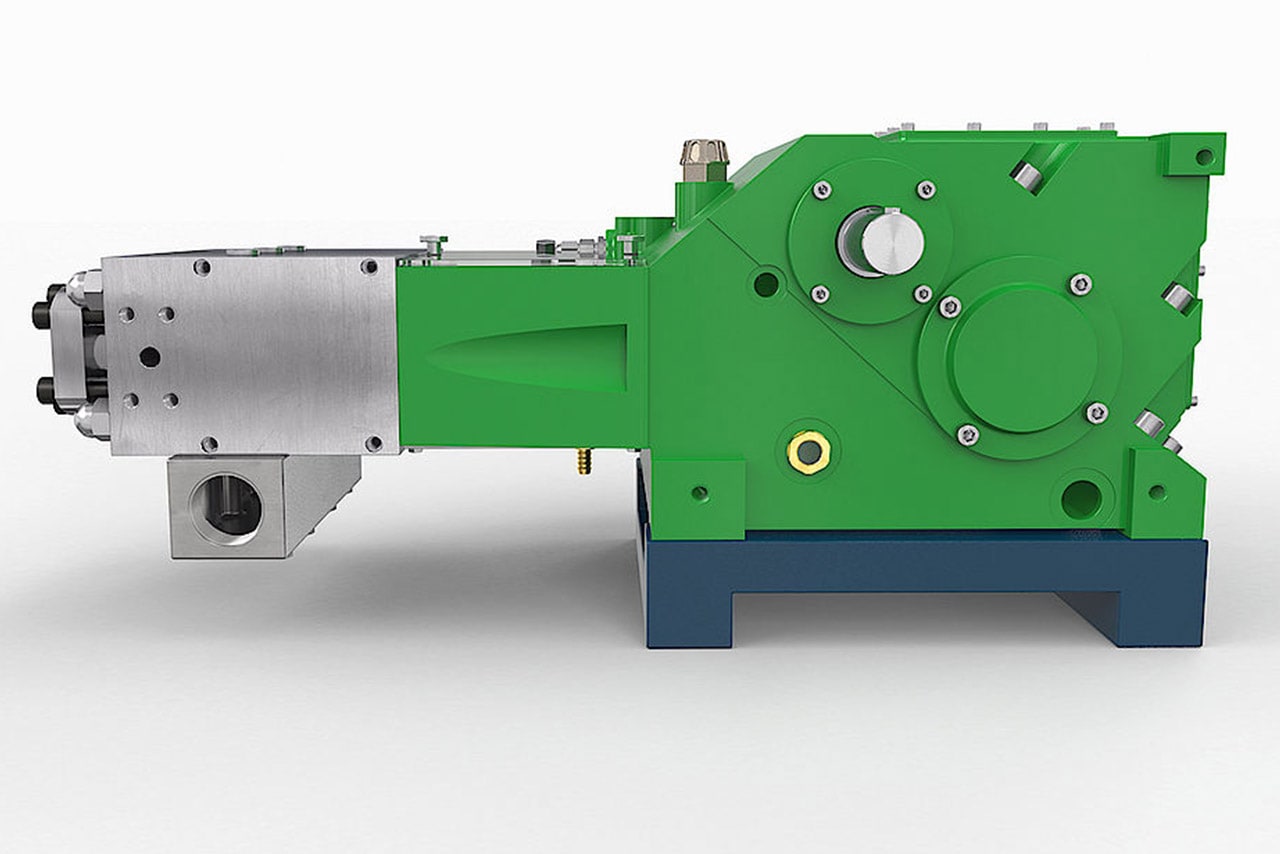

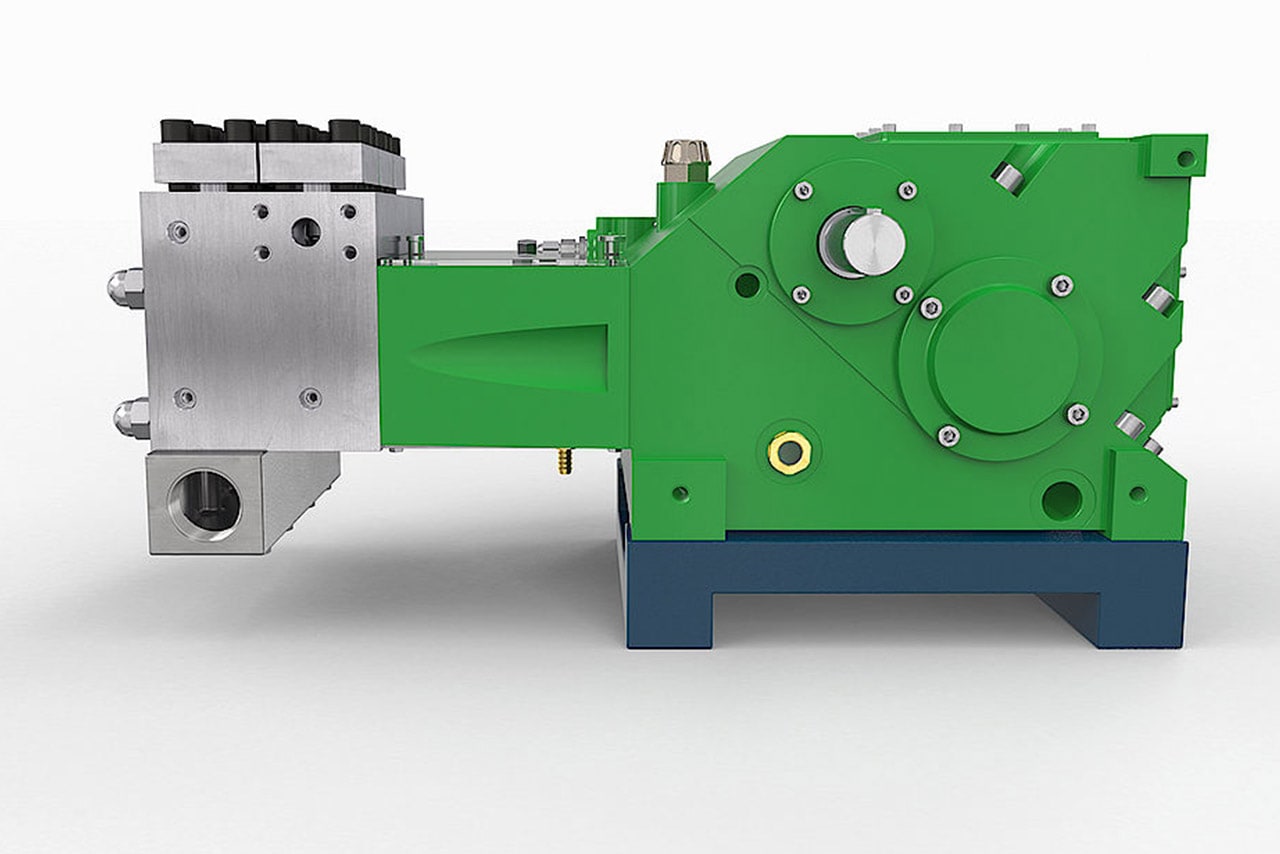

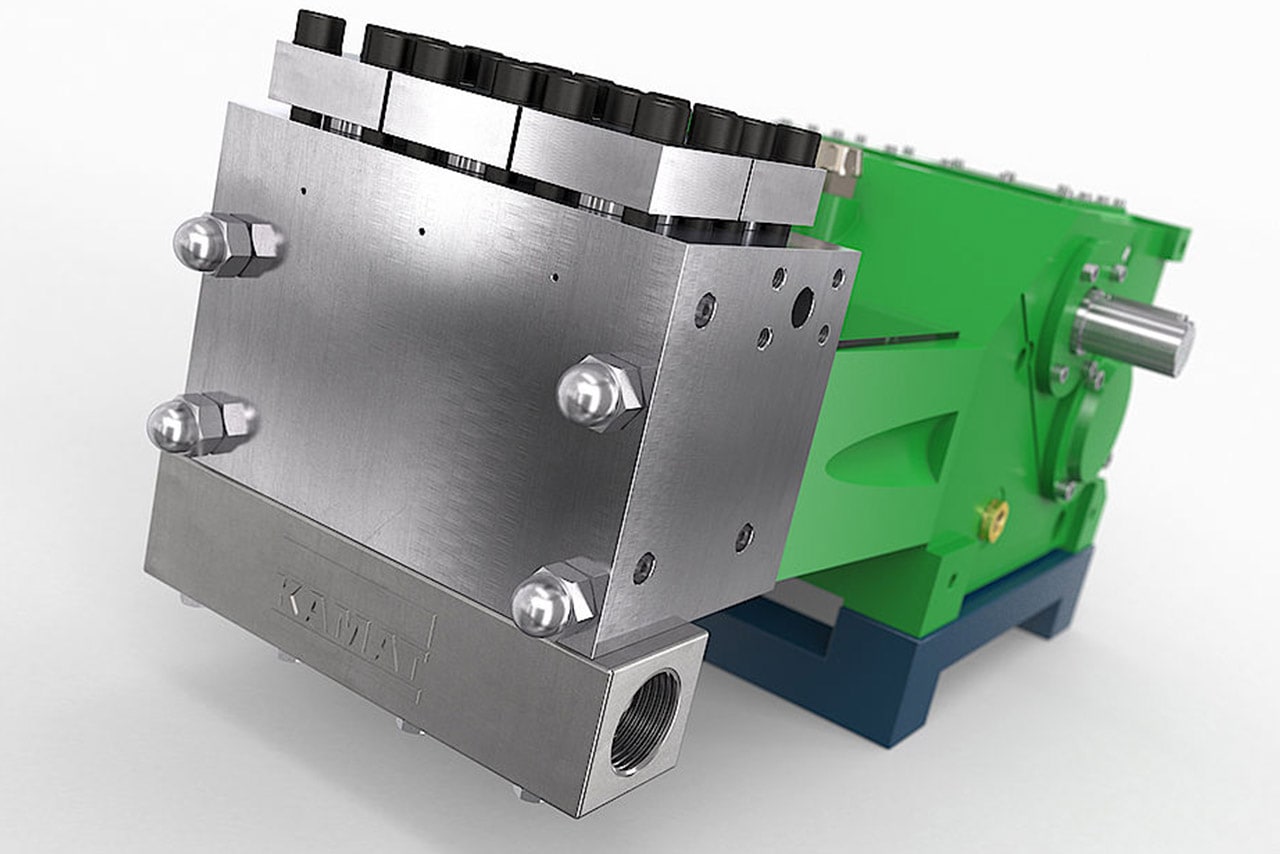

Triplex Plunger Pump K 9000-3G

If forced lubrication and possibly an oil cooler is required, then the K 9000 is the slightly higher-performance alternative to the K 8000. This 90 kW high-pressure pump, similar to the previously described model, is suited for smaller applications in industry, such as industrial cleaning or process technology. The employment of different pump heads in the KAMAT modular system makes possible different pumped media, for example with fluid temperatures up to 200°C. As with the smaller models, the K 9000 is also characterized by its basic design consisting of relatively few parts.


  • Gear with forced lubrication
  • Optionally available with oil cooler
  • Integrated gear reduction-ratio
  • Also available in accordance with API 674 and/or ATEX
  • Special media, such as sea water, glycol, methanol, oils etc., on request
  • Filtration up to 350 µm

Technical Specification

  • Flow13 - 283 l/min
  • Pressure100 - 3100 bar
  • Power Input55 - 90 kw
  • Weight255 kg

Product Downloads

Click the links below to download product information

Make and Enquiry

For more information on this product please call us on NSW (02) 4271 2999 or QLD (07) 4952 3612 or fill out the form below and we will get back to you.
