DX1009-T

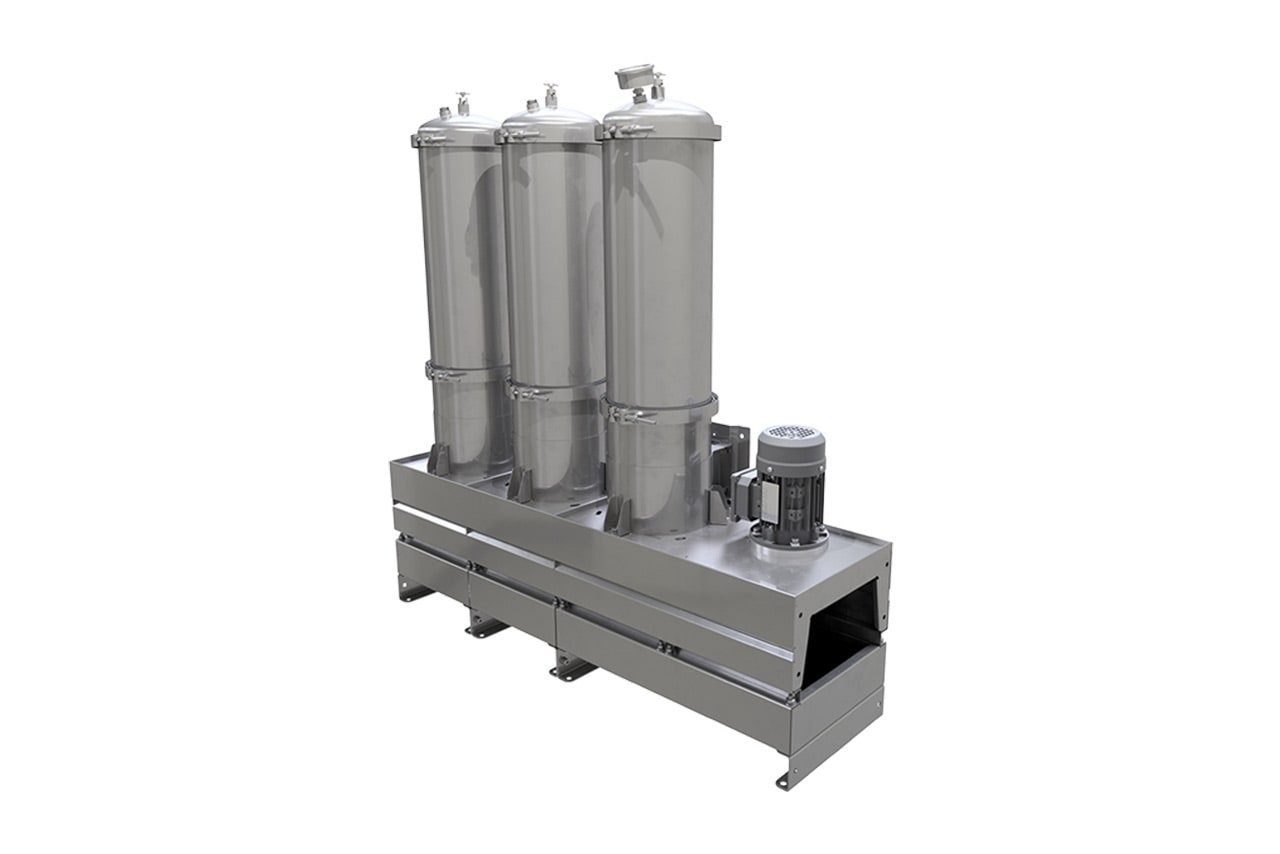

The DX modular housing arrangement offers a flexible and space conscious solution to integrating our innovative DXO Cartridge to both new and existing systems. We provide up to 12 cartridges as a single unit in a compact and easily maintainable layout.
The unit can be supplied with a number of standard options to provide an effective conditioning and monitoring package to suit the majority of systems. The flexibility of the unit allows tailoring to a customer’s specific requirements.
- Drive InputElectric or Pneumatic
- Connection Ports3/8”BSP In & Out

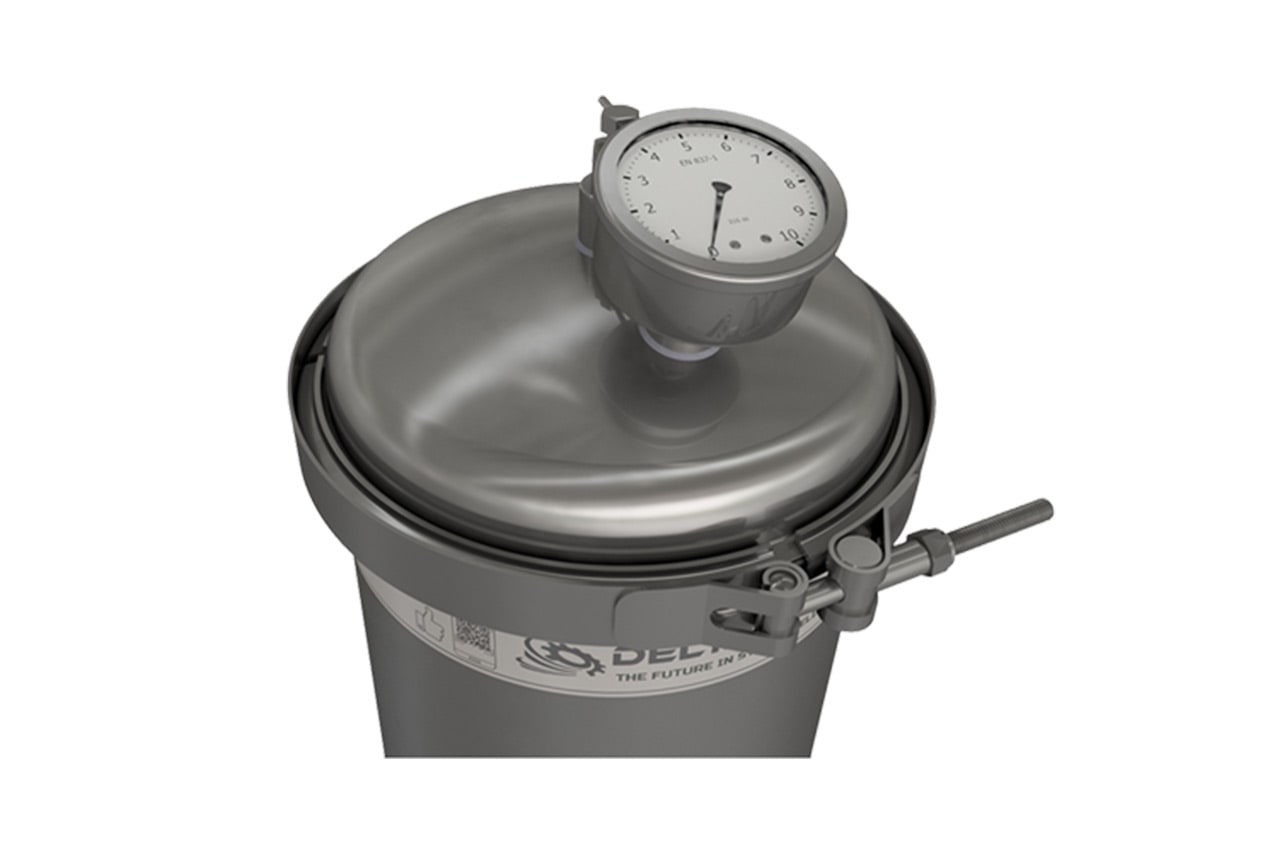

- Flow IndicatorVisual
- Suggested System VolumeUp to 40500ltrs @ 32cSt
- Particulate RemovalFrom 0,1 μ
- Weight70kg
- DimensionsH 1158mm x D 300mm x L 1100mm
- MaterialSS316
- DXO Cartridge QTY9
- Flow Rate varies depending on viscosity, pressure and temperature
Approx flow at 2.7bar 32 cSt 46 cSt 68 cSt 100 cSt 220 cSt 320 cSt 460 cSt 6.25l/min 5.0l/min 4.0l/min 3.0l/min 2.0l/min 1.0l/min 0.6l/min Oil Volume 40500ltrs 31500ltrs 27000ltrs 21600ltrs 16200ltrs 7200ltrs 3600ltrs
