DX1012-T

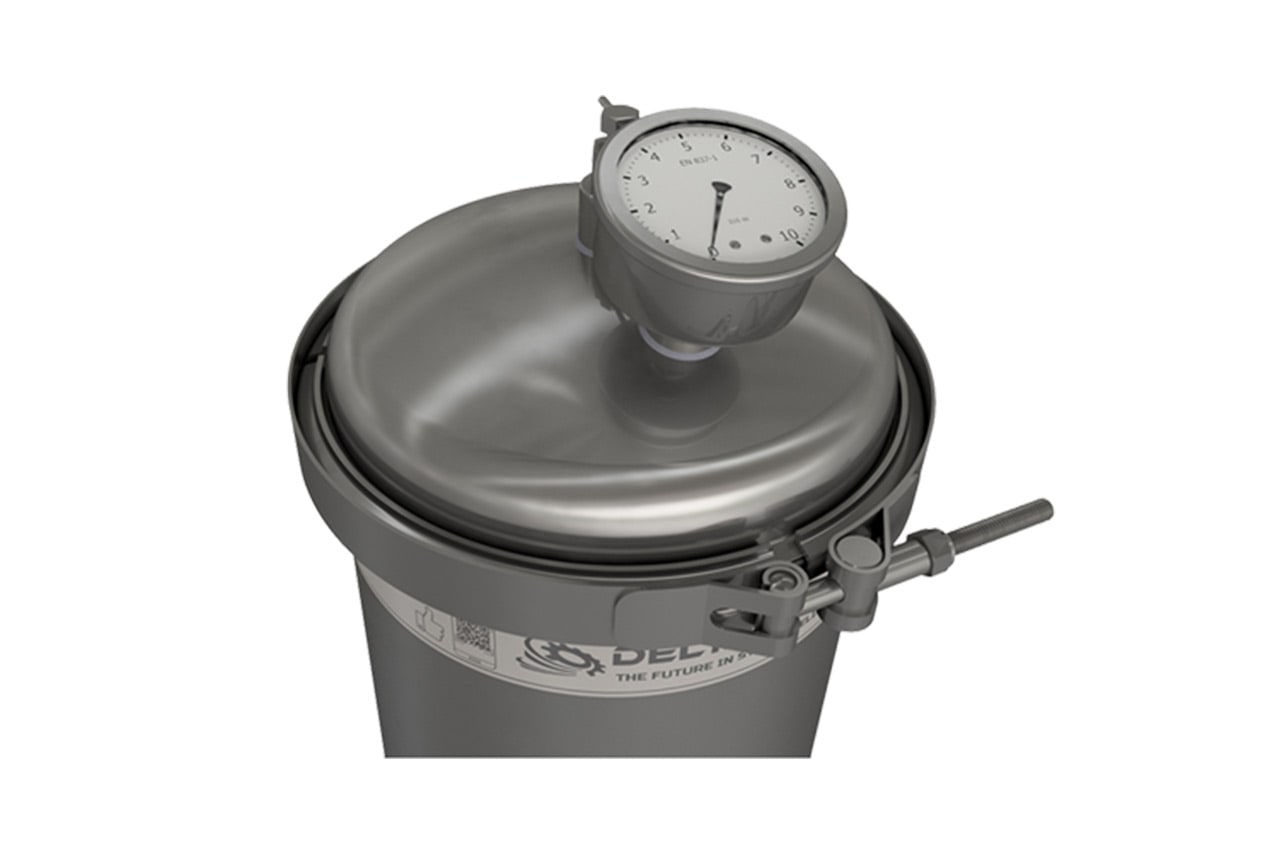

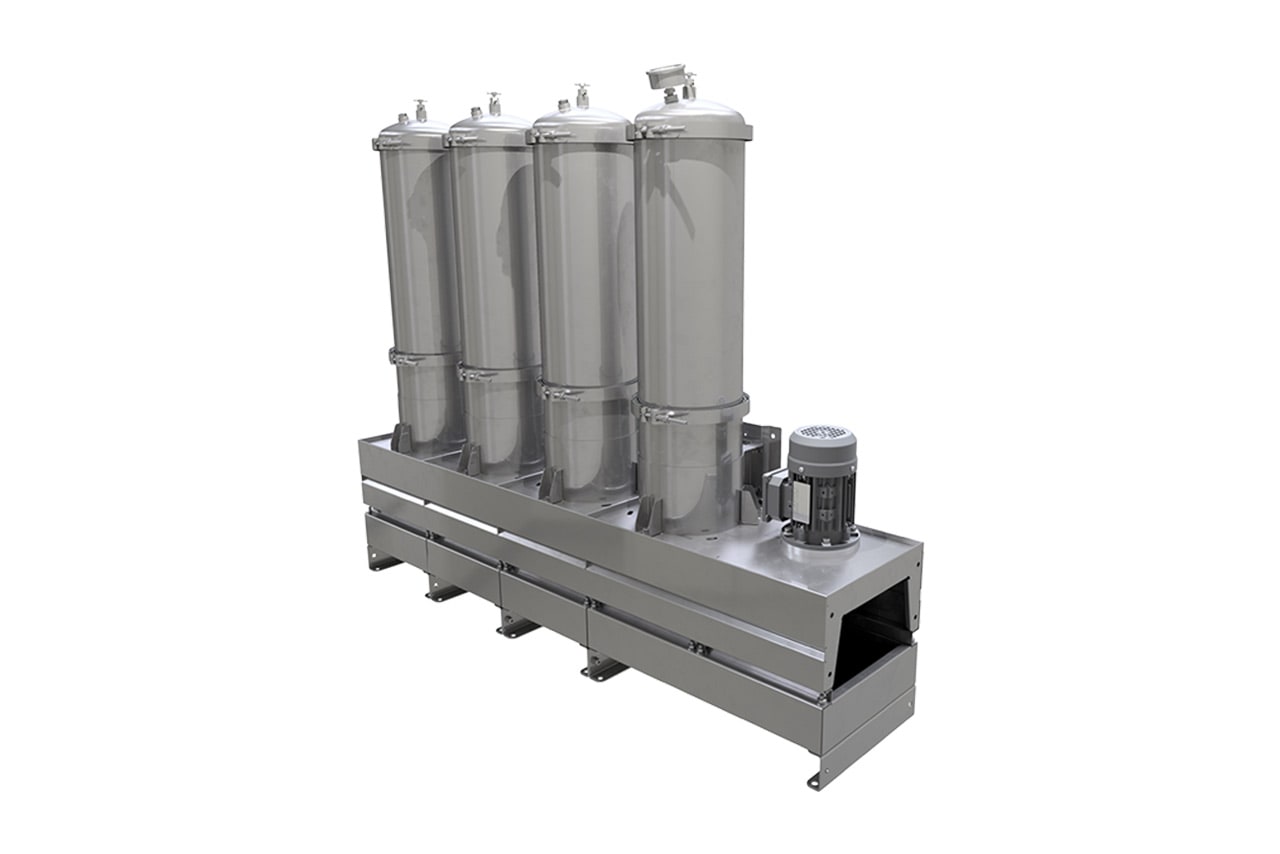

The DX modular housing arrangement offers a flexible and space conscious solution to integrating our innovative DXO Cartridge to both new and existing systems. We provide up to 12 cartridges as a single unit in a compact and easily maintainable layout.

The unit can be supplied with a number of standard options to provide an effective conditioning and monitoring package to suit the majority of systems. The flexibility of the unit allows tailoring to a customer’s specific requirements.

  • Drive InputElectric or Pneumatic
  • Connection Ports3/8”BSP In & Out
  • Flow IndicatorVisual
  • Suggested System VolumeUp to 72000ltrs @ 32cSt
  • Particulate RemovalFrom 0,1 μ
  • Weight85kg
  • DimensionsH 1158mm x D 300mm x L 1374mm
  • MaterialSS316
  • DXO Cartridge QTY12
  • Flow Rate varies depending on viscosity, pressure and temperature
    Approx flow at 2.7bar 32 cSt 46 cSt
    12.7l/min 9.0l/min
    Oil Volume 72000ltrs 61000ltrs
