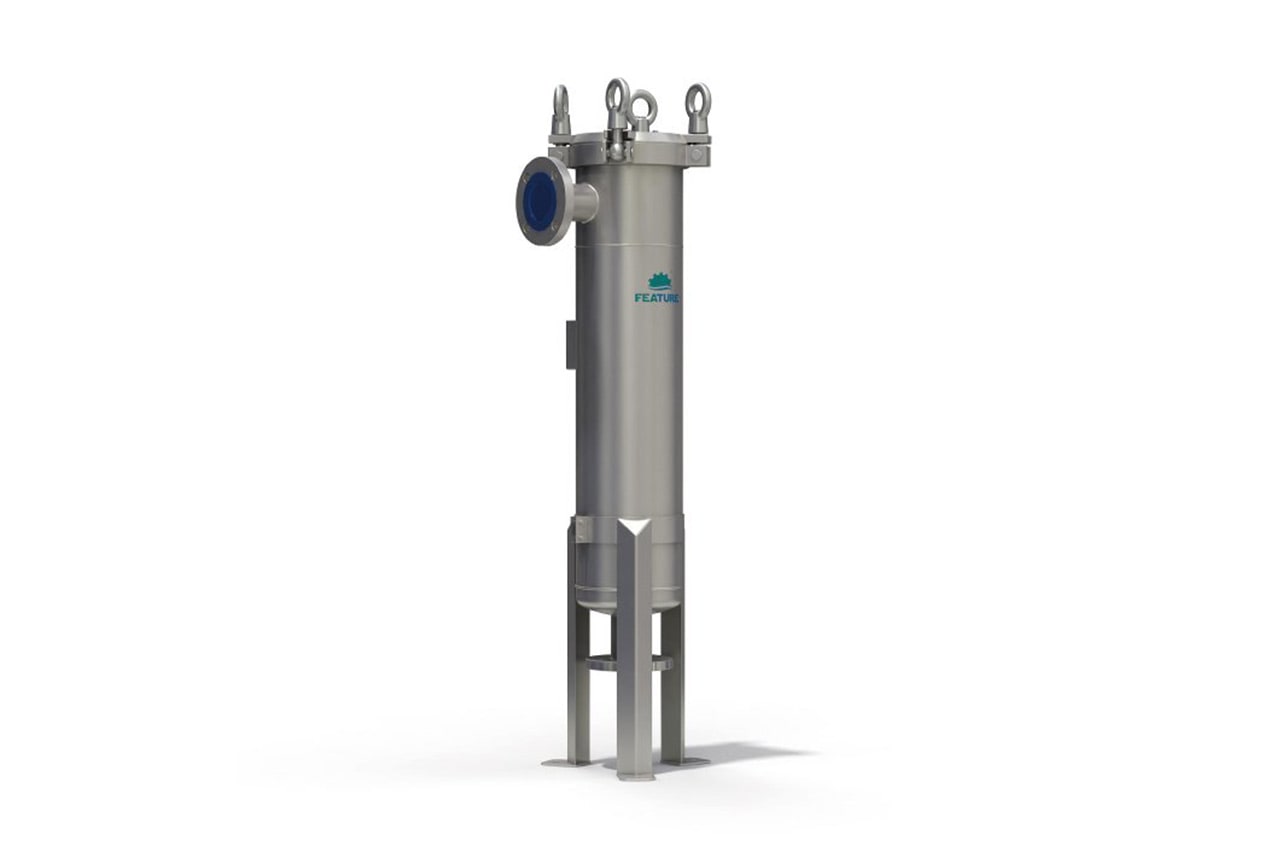

ECS Single Bag Filter Housing

ECS single bag filter housings' side inlet piping connections can be manufacted to face different directions based on customers' requirements. The ECS filter housing' simple design allows easy cleaning of the interior. Feature-Tec's patented clamping device seals the bag for better performance. Precision castings and swing eye-bolt closure guarantees integrity even at high pressures.

Features

  • Side inlet piping connection and evacuation cover - Eliminates liquid spill over when cover is opened.

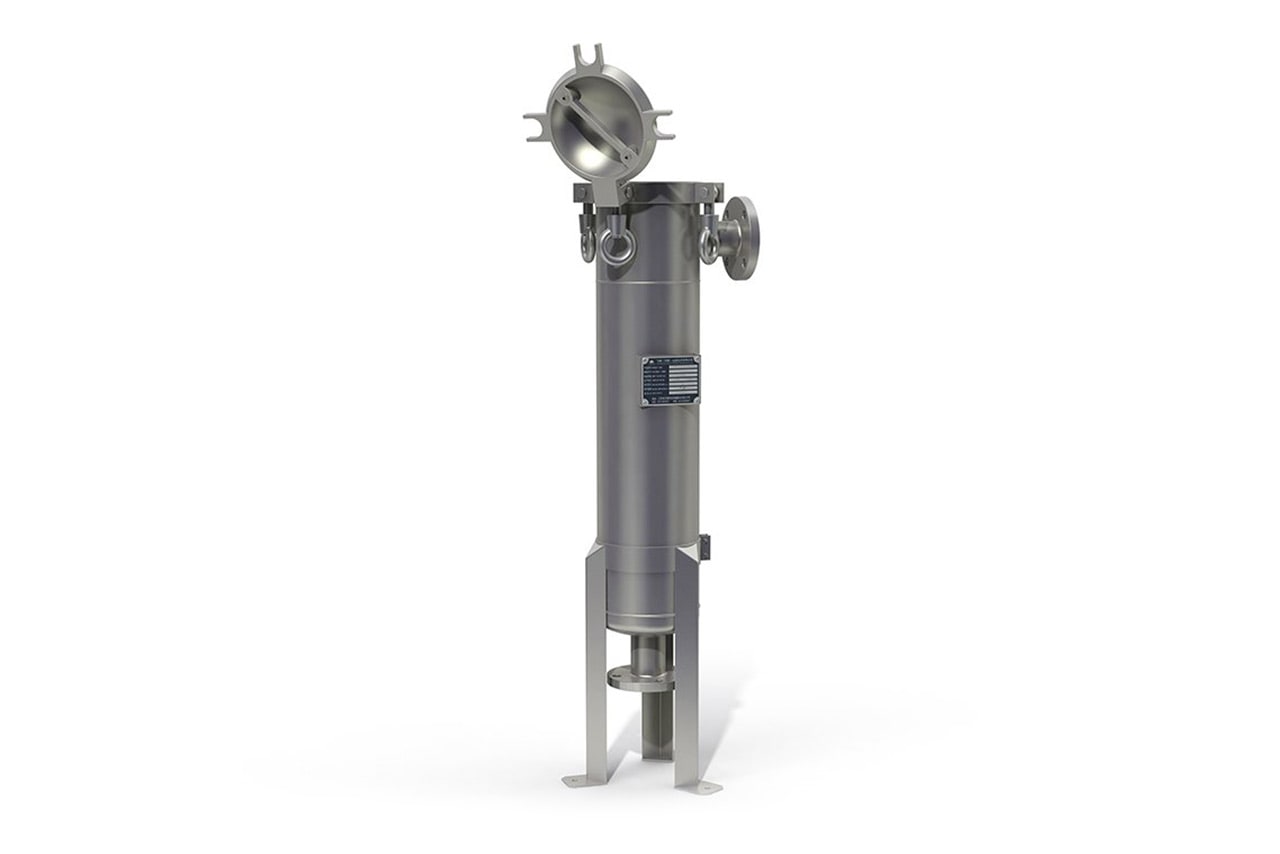

  • Adaptable lid position - Great accessibility, easy maintenance;
  • Integrated handle cover - Single-handed, user-friendly operation.
  • Unique basket seal design - EasyLock ensures no bypass.

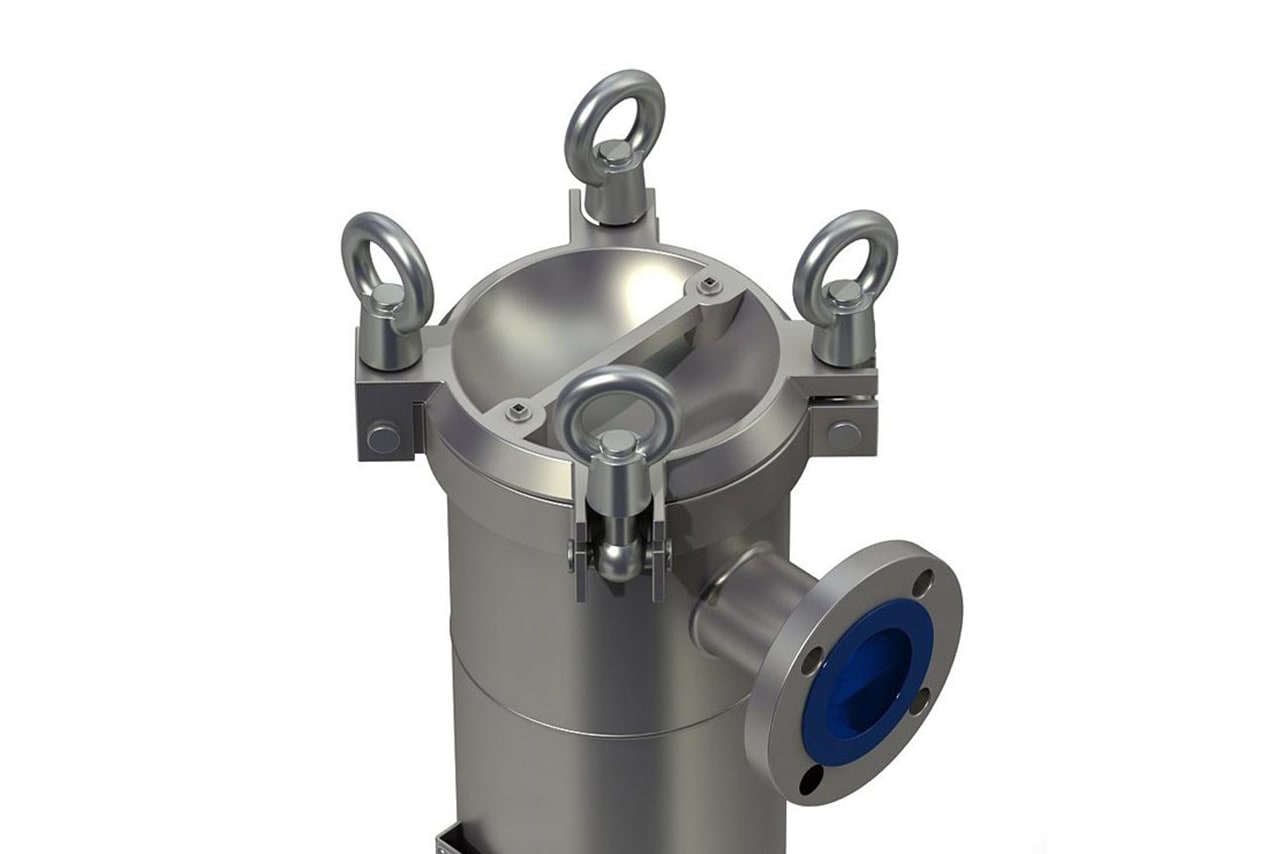

  • Swing eye-bolt closure - Guarantees integrity even at high pressures.

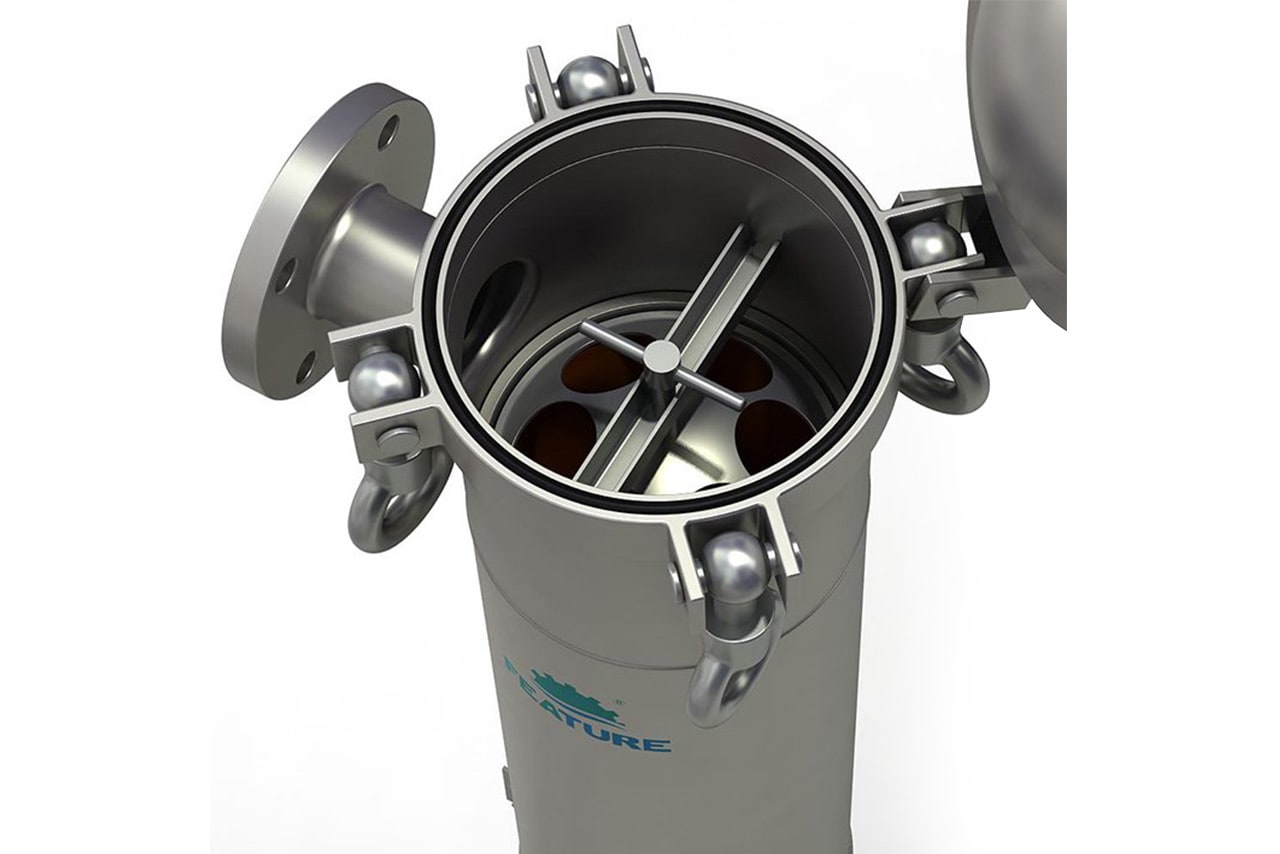

  • Electro-polished stainless steel perforated plate basket - Perfect filter bag support, easy to clean.
  • Adjustable mounting legs - Stable and adaptable construction.

Technical

  • Max. Flow Rate:40 m3/h
  • Max. Operating Temperature:150°C
  • Max. Operating Pressure:10 bar
